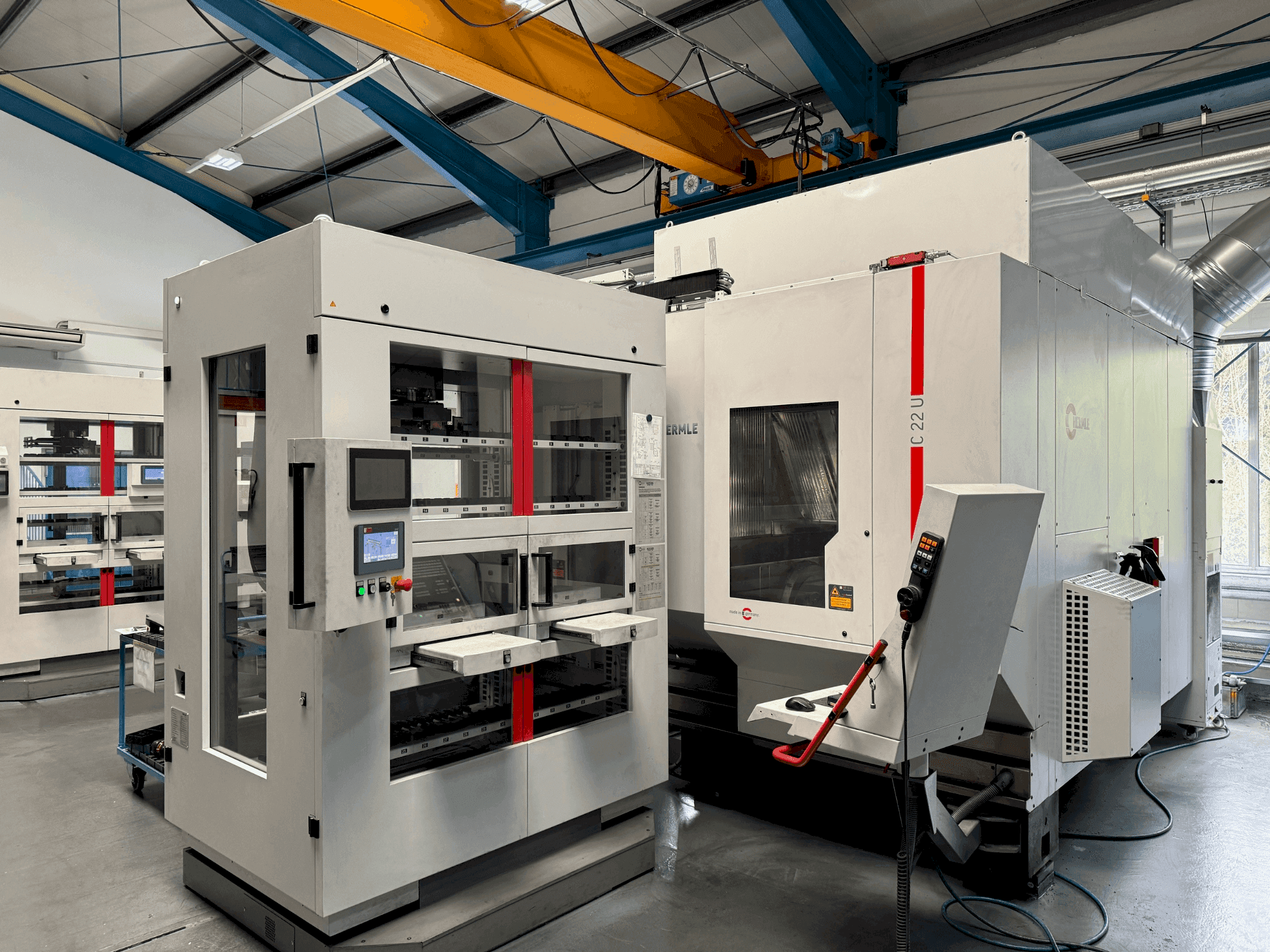

Front view of HERMLE C22 with handling system IH30  (2017)  machine

HERMLE C22 with handling system IH30

HERMLE - C22 with handling system IH30

2017

Rs. 19,643,850
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis HERMLE C22 Machining center was manufactured in 2017. It includes an integrated handling system, IH30, designed to enhance automation and efficiency in production. The compact yet robust configuration of this machine allows for versatile milling applications with precision and reliability. The advanced control system ensures optimal performance and supports complex milling operations demanding high accuracy. The HERMLE C22 machine we have for sale is expertly crafted to meet stringent manufacturing requirements. Contact us for further details regarding this machining center. There are 2 machines available, the second unit with same options is from 2015, same model Hermle C22 with handling system IH30.

Overview

  • brand: HERMLE
  • year: 2017
  • MODEL: C22 with handling system IH30
  • application type: Milling
  • Location: Germany
  • machine type: Milling Machine
  • availability: Immediately
  • control unit brand: Heidenhain
  • GINDUMAC ID: DE-MIL-HER-2017-00003

Technical Information

General Data

  • Measurements width: 1740 mm
  • Measurements depth: 1700 mm
  • Measurements height: 2400 mm
  • Machine weight: 9000 kg

Control Unit

  • Brand: Heidenhain
  • Model: TNC 640

Main drive

  • Number of spindles: 1
  • Spindle speed range: 42000 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 450 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 330 mm

Tools

  • Number of index: 65

Clamping unit

  • Clamping force: 4500 N KN

    Additional equipment

    • - Swivel rotary table STP Ø 320
    • - Single-sided drive in the A-axis Ø 320 // Spindle 42.000 1/min HSK E40
    • - 6-way rotating union
    • - Elimination of table top Ø 320
    • - KinematicOpt - Hardware
    • - IH30 handling system: max. handling weight 30kg magazine capacity 50 pallets

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Outer mms
        • - Blow-off device // blow air through spindle center
        • - Sealing air for scales
        • - Control software: kuhnke plc
        • - Max. Handling weight: 30 kg
        • - Magazine capacity: 50 pallets
        • - Infeed and outfeed station: 2-fold
        • - Standard gripper: 30 kg based on a fork gripper itp 178x135 or itp 192x98 with pneumatic holding pins
        • - Control software: kuhnke plc // control panel for hacs on the ih30
        • - Taper size: hsk e40
      • Qualitative Machine Benefits:
        • - Emulsion mist extraction incl. Secondary filter
        • - Automatic cabin door // automatic cab roof
        • - Heidenhain electrical heat compensation // electric manual control module heidenhain
        • - Measuring probe heidenhain
        • - Blum tool breakage/ measurement a1
        • - Cover plate for machining with amms / mod. Scraper
        • - Handling interface ih30/60 tnc640hacs
        • - Chuck 3-r powergrip on system table
        • - Pneu. Release retacking blow off present 1x 1:2
        • - Preparation of external graphite suction left

      Extra information

      • - IH30 Shelf ITS50 Pallets and ITS78: Parallel Gripper: Including specific gripper finger set. Max. Transport Weight: 20 kg. Exchangeable Gripper: 3R gripper finger set. We have a second unit of the the identical model from 2015 available.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
