HERMLE - C 400 UDE-MIL-HER-2014-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used HERMLE C 400 U For Sale | gindumac.com

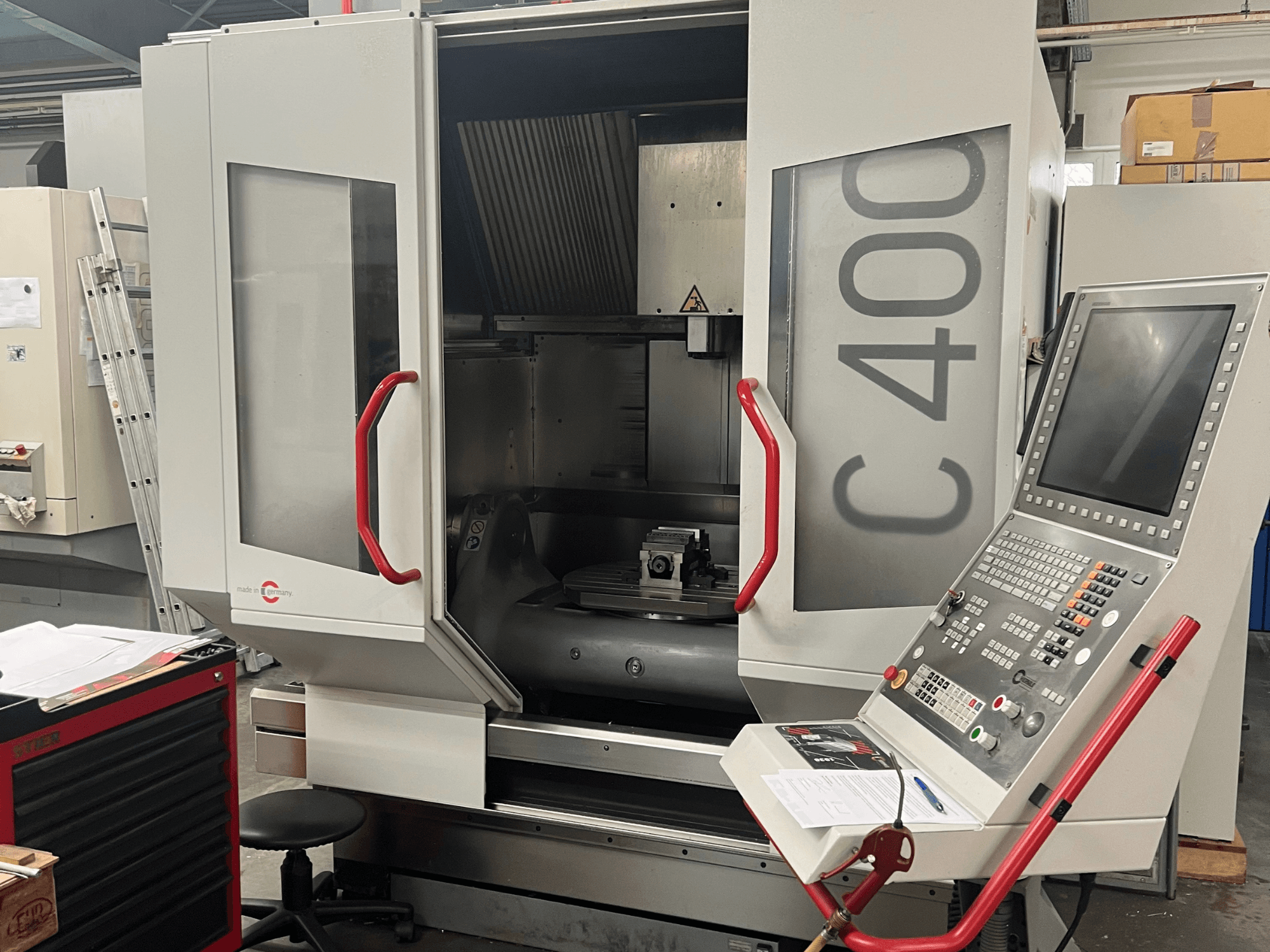

Universal machining centre manufactured in 2014. This 5 axis HERMLE C 400 U features a high-pressure IKZ, laser measuring system, and a 35-tool magazine. With a spindle speed of 18,000 rpm and a net weight of 10,500 kg, it offers robust capabilities for various machining tasks. Consider the opportunity to buy this HERMLE C 400 U universal machining centre. Contact us for further details.
Overview
- brand: HERMLE
- year: 2014
- MODEL: C 400 U
- production hours: 4890
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HERMLE C 400 U
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 530
Dimensions
- Machine Weight: 10500 kg
Movement
- Number of Axes: 5
Technical Specification
- Spindle Speed: 18000 RPM
- Taper Size: HSK 63
Additional Information
Tool magazine: 36 tools (large drum/barrel type)
High-pressure through-spindle coolant (IKZ)
Laser measuring system
Spindle hours: 4,890 h
Operating hours: 5,800 h
Supply voltage: 400 V / 3~
Mains frequency: 50 Hz
Control voltage: 24 V
Rated current: 55 A
Power consumption: 34 kVA
IKZ with paper belt filter and 80 bar
Tool measurement length and break A2
Rotary Table 650mm
Additional equipment
Suction (mist extraction)
3D measuring probe
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
