HERMLE C 1200 V

Photo Gallery

HERMLE - C 1200 VDE-MIL-HER-2006-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HERMLE C 1200 V For Sale | gindumac.com

Show in original language

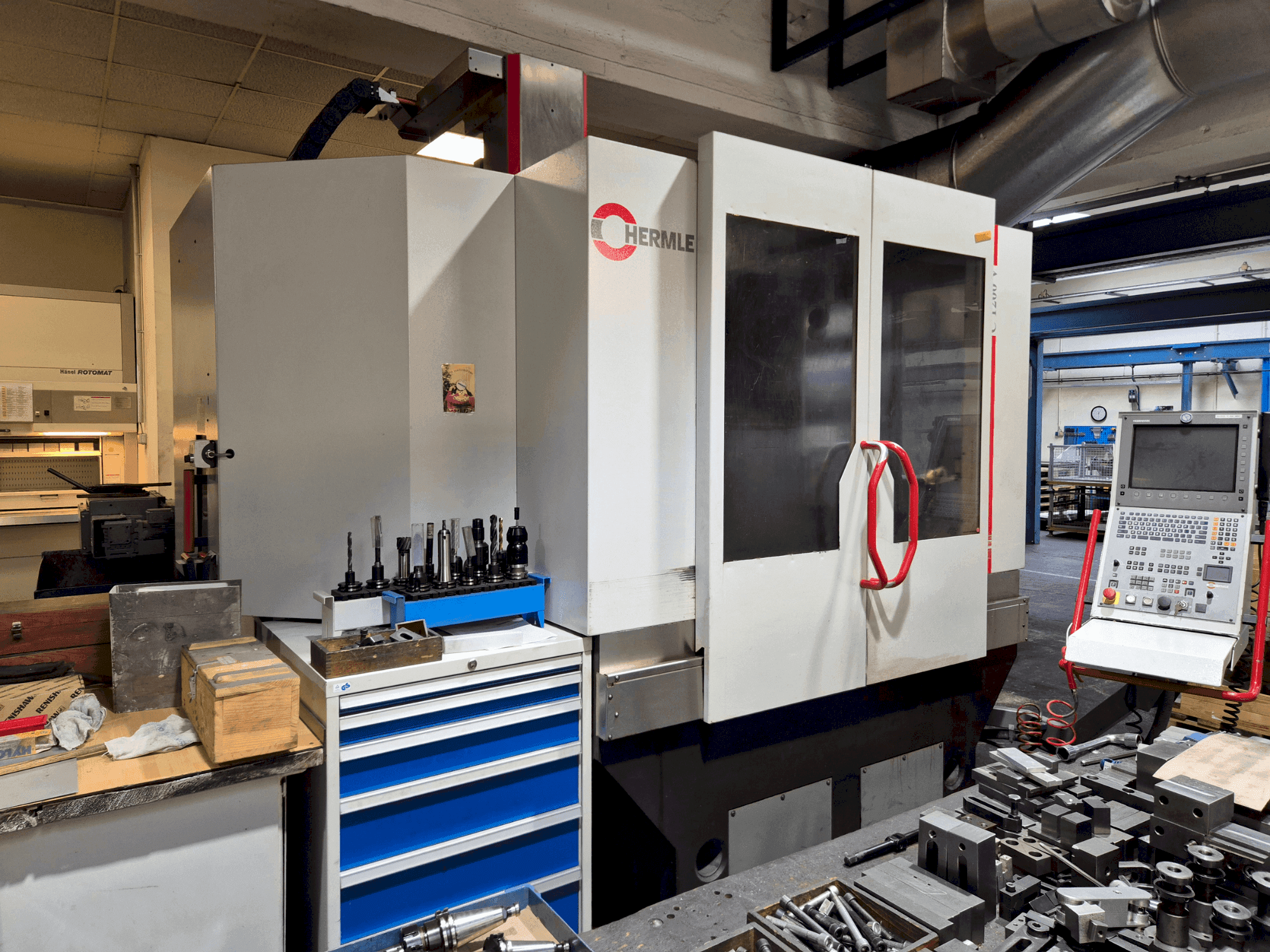

This 3-axis Hermle C 1200 V was manufactured in 2006. It features a robust Heidenhain TNC 430 control, with travel distances of X-axis 960 mm, Y-axis 1200 mm, and Z-axis 650 mm. The table can handle loads up to 1000 kg and measures 1,300 x 1,300 mm. If you are looking to get high quality milling capabilities consider the Hermle C 1200 V machine we have for sale. Contact us for more information.

Overview

brand: HERMLE
year: 2006
MODEL: C 1200 V
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - HERMLE C 1200 V

Control Unit

Brand: HEIDENHAIN
Model: TNC 430

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 960 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 650 mm

Table

Table load: 1000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping surface: 1300 x 1300 mm
- - Positioning and repeat accuracy: +/- 0. 015 mm
- - Measuring probe is available /tool zeroing device is available /max. Spindle speed = 16,000 rpm/ number of tool change stations = 30

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
