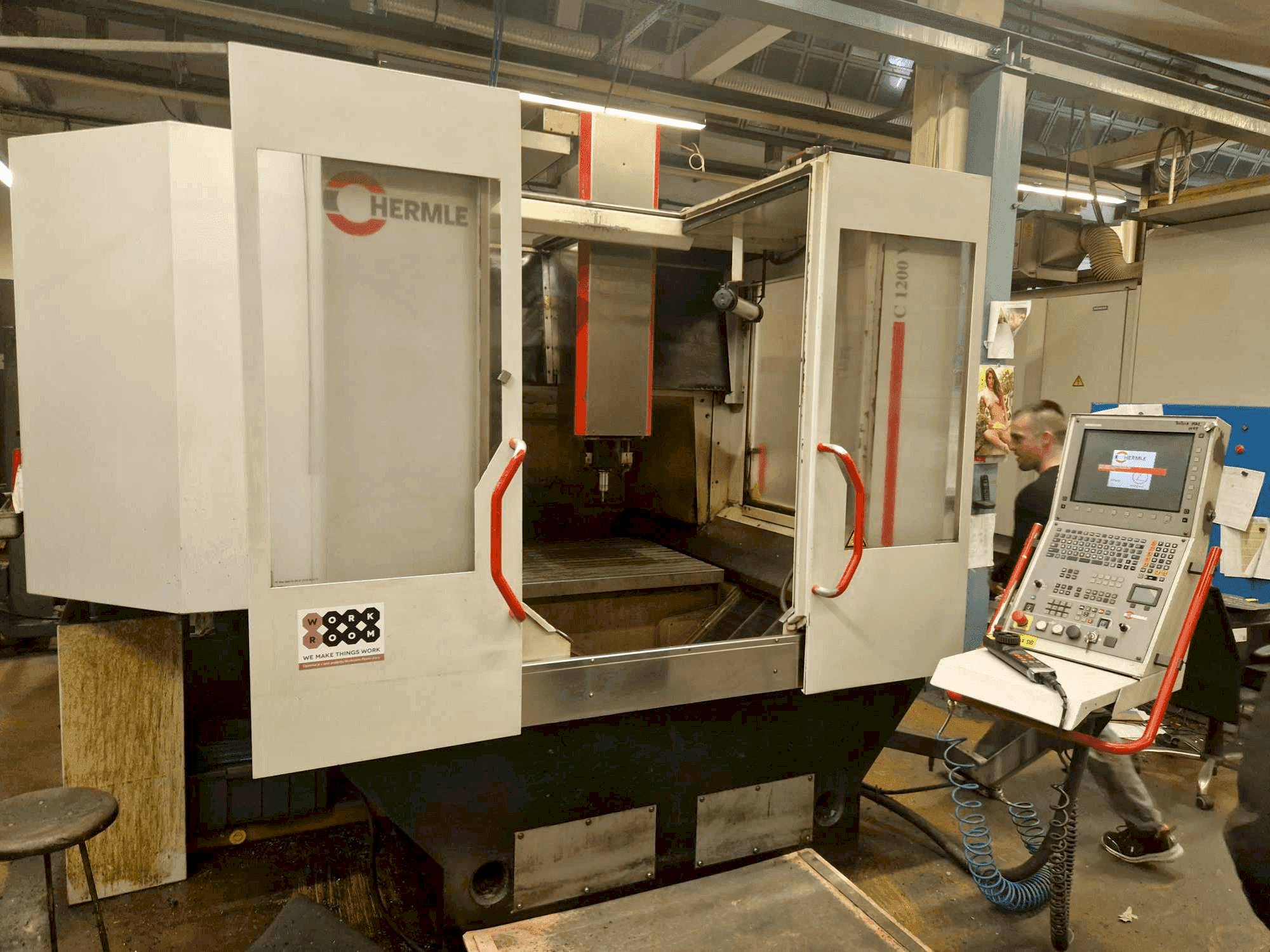

This 3-axis HERMLE C 1200 V vertical machining centre was manufactured in 2003. It features a robust clamping table measuring 1400 x 900 mm and a high-performance milling spindle with a maximum power of 10 kW, torque up to 87 Nm, and speeds up to 16,000 RPM. Ideal for complex machining tasks, the HERMLE C 1200 V machine we have for sale offers precision and durability. Contact us for more information.
Overview
- brand: HERMLE
- year: 2003
- MODEL: C 1200 V
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
Technical Information - HERMLE C 1200 V
Dimensions
- Machine Depth: 4629 mm
- Machine Height: 3050 mm
- Machine Weight: 12700 kg
- Table Length: 1400 mm
- Table Width: 900 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1200 mm
- Y-axis Travel: 900 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Power: 10 kW
- Spindle Speed: 16000 RPM
- Taper Size: SK 40
Additional Information
Machine Benefits
Technical Machine Benefits
- High spindle speed, powerful spindle
- Clamping table dimensions: 1400 x 900 mm.
- Connection data: connected load approx. 31 kva, back-up fuse 45 a.
- Max. Torque: approx. 87 nm
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
