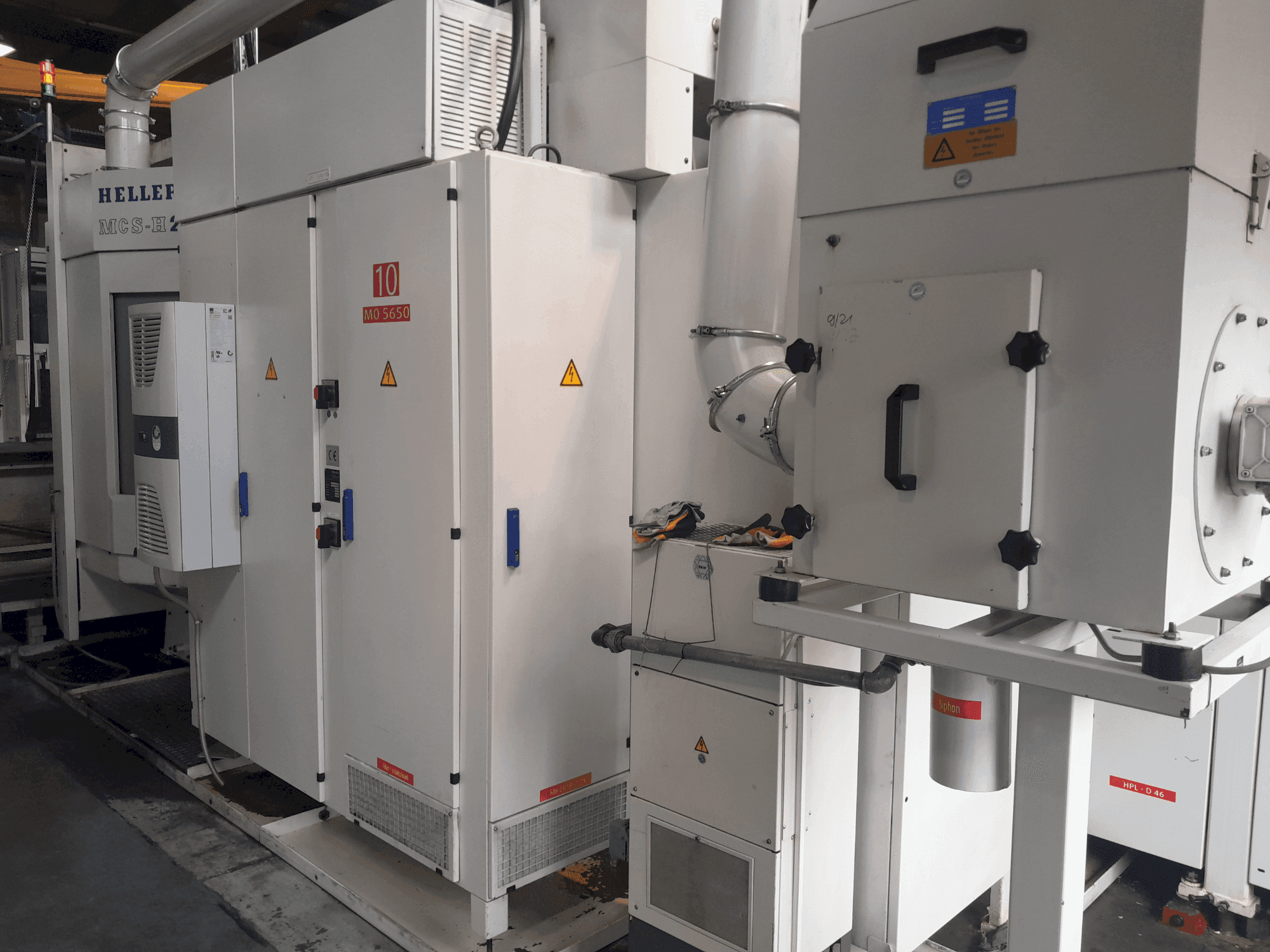

This 4-axis HELLER MCS-H 250 was manufactured in 2000. Ideal for precision machining, this horizontal machining centre offers robust construction and reliability. Consider the opportunity to buy this HELLER MCS-H 250 horizontal machining centre. Contact us for further details regarding this machine.
Overview
- brand: HELLER
- year: 2000
- MODEL: MCS-H 250
- production hours: 65550
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
Technical Information - HELLER MCS-H 250
Dimensions
- Machine Weight: 20500 kg
Additional Information
Additional equipment
- Pallet Changer: Pallet Size: 500 x 630 mm (DIN 55201-A1) / Fastening: 33 x M12 screws
- Tool Magazine: 3 cassette slots + 1 set-up slot / Tool Holder: SK 50 / Max Tool Diameter: 100 mm (occupied) / 270 mm (with free space) / Max Tool Length: 450 mm / Max Tool Weight: 25 daN
Machine Benefits
Technical Machine Benefits
- Noise level: 73. 8 db(a)
- Main spindle speed range: 45-6000 rpm (infinitely variable)
- Drive power: 36 kw (from 500 rpm, 40% ed) / power supply: 400 v, 50 hz
- Max torque: 688 nm (40% ed)
- Working range: x-axis (longitudinal stroke): 800 mm/ y-axis (vertical stroke): 800 mm/ z-axis (transverse stroke): 970 mm
- Feed speed: up to 24000 mm/min
- Feed forces: x/y-axis: 15000 n/ z-axis: 20000 n
- Rotary indexing table: part accuracy: ±3 arc seconds / max clamping weight: 800 dan (center) / max tangential torque: 20000 nm (locked) /max tilting torque: 18000 nm (locked)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
