HELLER - MCS-H 250DE-MIL-HEL-1998-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used HELLER MCS-H 250 For Sale | gindumac.com
Show in original language

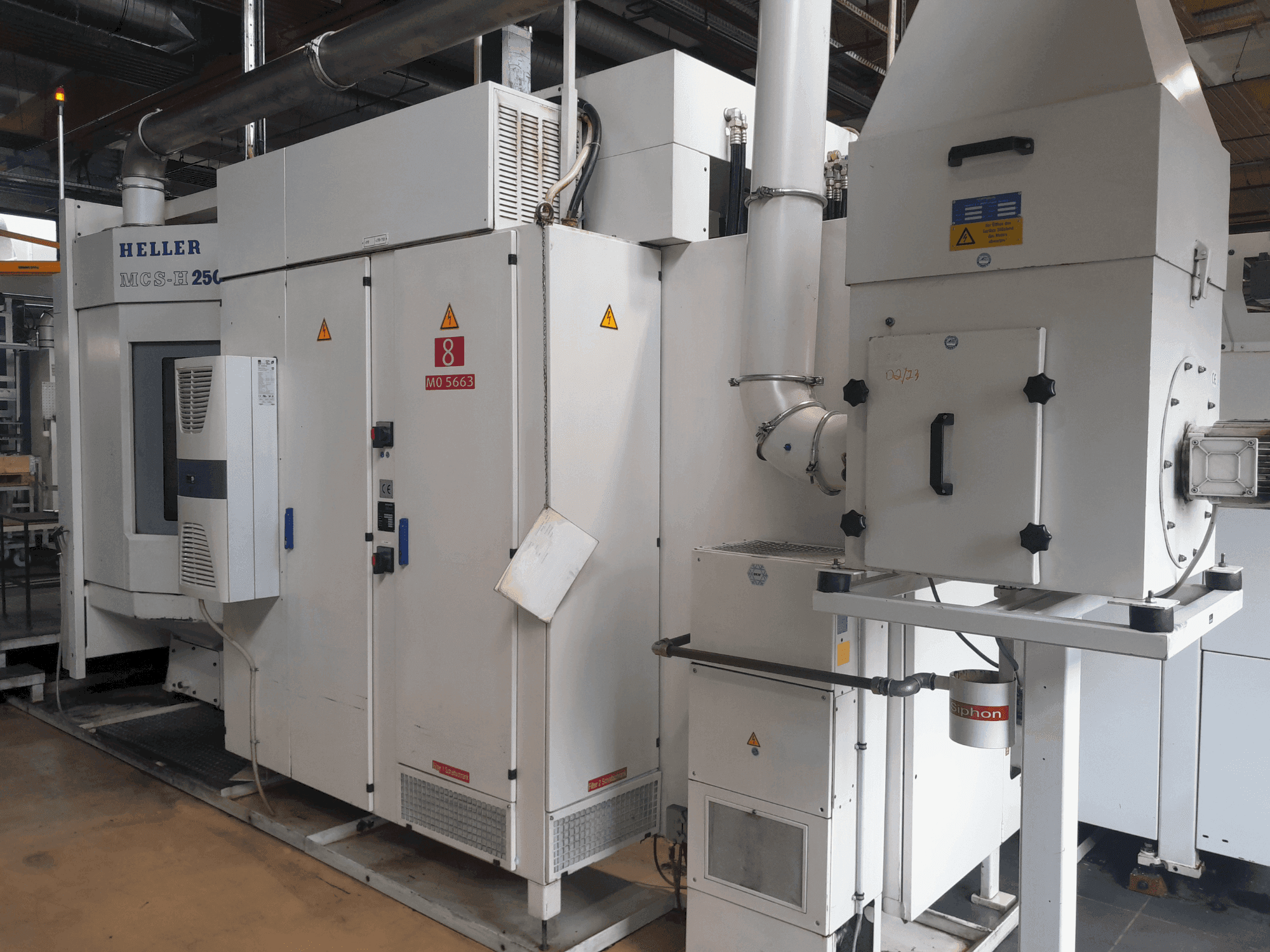

This 4-axis HELLER MCS-H 250 was manufactured in 1998. A robust horizontal machining centre, it offers reliable performance for diverse machining needs. Consider the opportunity to buy this HELLER MCS-H 250 horizontal machining centre. Contact us for more information.
Overview
- brand: HELLER
- year: 1998
- MODEL: MCS-H 250
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
Technical Information - HELLER MCS-H 250
Dimensions
- Machine Weight: 20500 kg
Additional Information
Machine Benefits
Technical Machine Benefits
- Production hours: approximately 56025 hours (first unit), 68300 hours (second unit)
- Noise level: 73. 8 db(a)
- Working range: x-axis (longitudinal stroke): 800 mm /y-axis (vertical stroke): 800 mm /z-axis (transverse stroke): 970 mm
- Rotary indexing table: part accuracy: ±3 arc seconds /max clamping weight: 800 dan (center) /max tangential torque: 20000 nm (locked) /max tilting torque: 18000 nm (locked)
- Pallet changer: pallet size: 500 x 630 mm (din 55201-a1) /fastening: 33 x m12 screws
- Tool magazine: 3 cassette slots + 1 set-up slot / tool holder: sk 50 / max tool diameter: 100 mm (occupied), 270 mm (with free space) / max tool length: 450 mm/ max tool weight: 25 dan
- Main spindle: speed range: 45-6000 rpm (infinitely variable) / drive power: 36 kw (from 500 rpm, 40% ed) /max torque: 688 nm (40% ed)/ feed speed: up to 24000 mm/min / feed forces: x/y-axis 15000 n, z-axis 20000 n
- Measuring system: direct measurement in x-y-z-axis / position tolerance: 0. 010 mm / resolution: 0. 2 µm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
