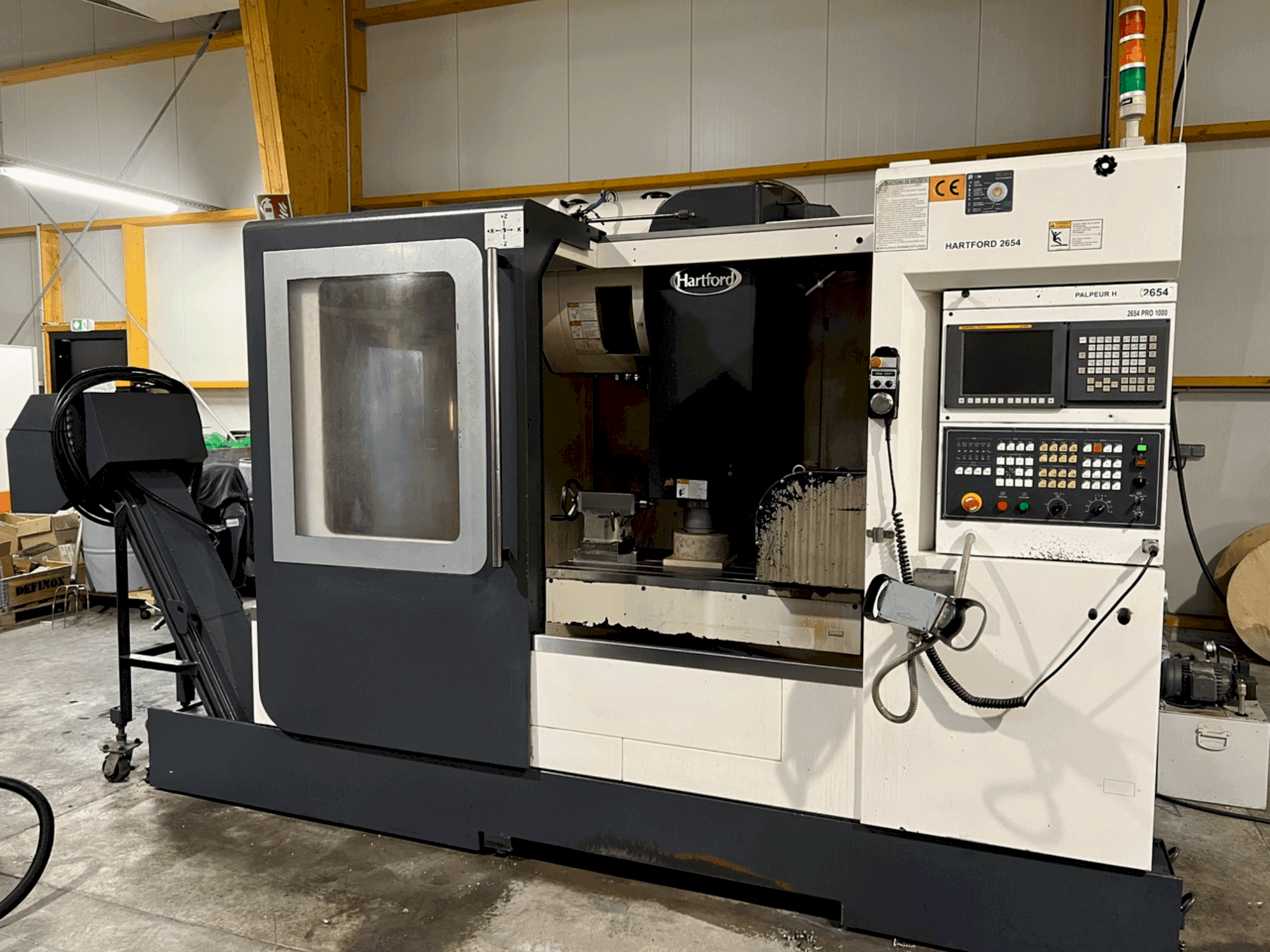

Front view of HARTFORD PRO 1000  machine

HARTFORD PRO 1000

HARTFORD - PRO 1000

2011

Rs. 4,605,750

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HARTFORD PRO 1000 (2011) Machining centers (vertical) machine was manufactured in 2011 . It is equipped with a CNC Fanuc control unit and has 5 axis. It is in very good working condition and can be inspected at any time and disposes a set of 50 tools holders.

Overview

  • brand: HARTFORD
  • year: 2011
  • MODEL: PRO 1000
  • application type: Milling
  • Location: France
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: FR-MIL-HAR-2011-00001

Technical Information

Control Unit

  • Brand: FANUC
  • Model: HARTROL AI100

Main drive

  • Spindle speed range: 8000 1/MIN
  • Spindle motor power: 11 kW
  • Number of axis: 5

Movement

  • X-AXIS Movement: 1000 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 630 mm

Table

  • Outer length: 1150 mm
  • Outer width: 600 mm
  • Height adjustment: 700 kG

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Set of 50 tools holders

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Table dimension: 1150x600 mm
        • - Weight allow on table: 700 kg
        • - Axis travel x/y/z: 1000x600x630 mm
        • - Spindle nose/table distance:100/730 mm
        • - Spindle nose: sk40 / spindle chiller
        • - Motor power 11 kw
        • - Spindle speed: 8000 rpm - gear 2 ranges
        • - Atc random type: 24 stations
        • - Cnc fanuc oimd + hartrol ai100
        • - Full 4th axis + position 5th axis 0/90° goldensun
      • Qualitative Machine Benefits:
        • - Chip conveyor
        • - Hydraulic chiller
        • - Infrared 3d probe blum ic56

      Extra information

      • - Very good condition and this machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
