- ➤ Used HARTFORD LG 1570 TNC 640 For Sale | gindumac.com

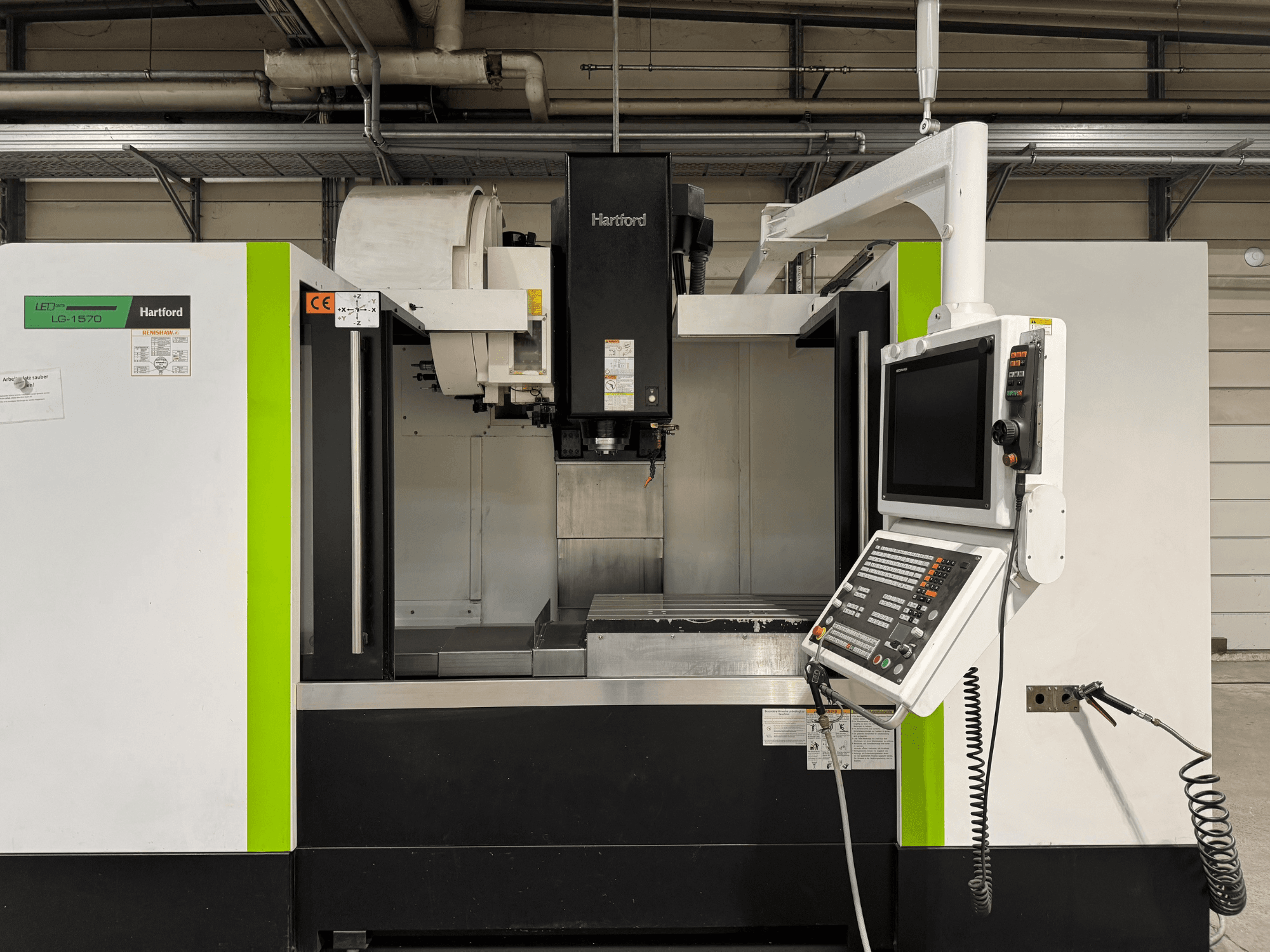

This 3-axis HARTFORD LG 1570 TNC 640 was manufactured in 2023. It features an impressive X-axis travel of 1,500 mm, Y-axis travel of 700 mm, and Z-axis travel of 650 mm. The machine includes a robust clamping table with dimensions of 1,600 x 650 mm and a maximum table load capacity of 1,000 kg. If you are looking to get high-quality machining capabilities, consider the HARTFORD LG 1570 TNC 640 vertical machining centre. Contact us for further details.
Overview
- brand: HARTFORD
- year: 2023
- MODEL: LG 1570 TNC 640
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HARTFORD LG 1570 TNC 640
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC640 (19" Touch-Screen display)
Dimensions
- Table Length: 1600 mm
- Table Load: 1000 kg
- Table Width: 650 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1500 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 650 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Power: 17 kW
- Spindle Speed: 12000 RPM
- Tool Stations: 30
Additional Information
- T-Slots configuration: 5 slots, 125 mm distance, 18 mm size
- Guideway System: Upgraded Linear Roller Guideways on X, Y, and Z axes (instead of standard ball guides)
- Feed Drives: Digital servo motors with ball screws on all axes
- Main Spindle Taper: SK40
- Main Spindle Drive: Pulley/Belt driven AC motor
- Max. Spindle Torque (M max): 89 Nm
- Spindle Temperature Control: Closed cooling circuit with separate spindle cooling unit
- Tool Changer Type: Automatic Tool Changer (ATC) with rapid-change double arm
- Tool Magazine Capacity: 30 positions (ATC30)
- Max. Tool Diameter: Ø75 mm (Ø150 mm if adjacent positions are empty)
- Max. Tool Length: 300 mm
- Workpiece Probe: 3D Touch Probe (installed for automatic zero-point and position measurement)
- Tool Probe: Tool Touch Probe System (installed on table for length, diameter, and tool breakage detection)
- Internal Coolant Supply (IKZ): High-pressure pump system, max. 20 bar with cartridge filter
- External Coolant Supply (AKZ): Multi-nozzle system on spindle nose
- Air Supply: Spindle nose compressed air cooling nozzle & central air through the spindle (programmable via M-functions)
- Chip Management: Enclosed workspace with sloped bed, chip flushing system, and longitudinal hinged belt chip conveyor (discharge height approx. 1,200 mm, discharge side: Left)
- Enclosure features: Front electronically monitored sliding door, side swing doors with windows for long workpieces
- Lubrication: Fully automatic central lubrication system with level control and CNC warnings
- Workspace Lighting: 2x LED lights
- Additional Equipment: Control cabinet air conditioning unit, electronic handheld handwheel, compressed air gun with coiled hose, hand-operated coolant flushing gun
- Color Scheme: Black (base frame, column, vertical slide, coolant tank, cabinet, doors, conveyor) & White (enclosure housing)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
