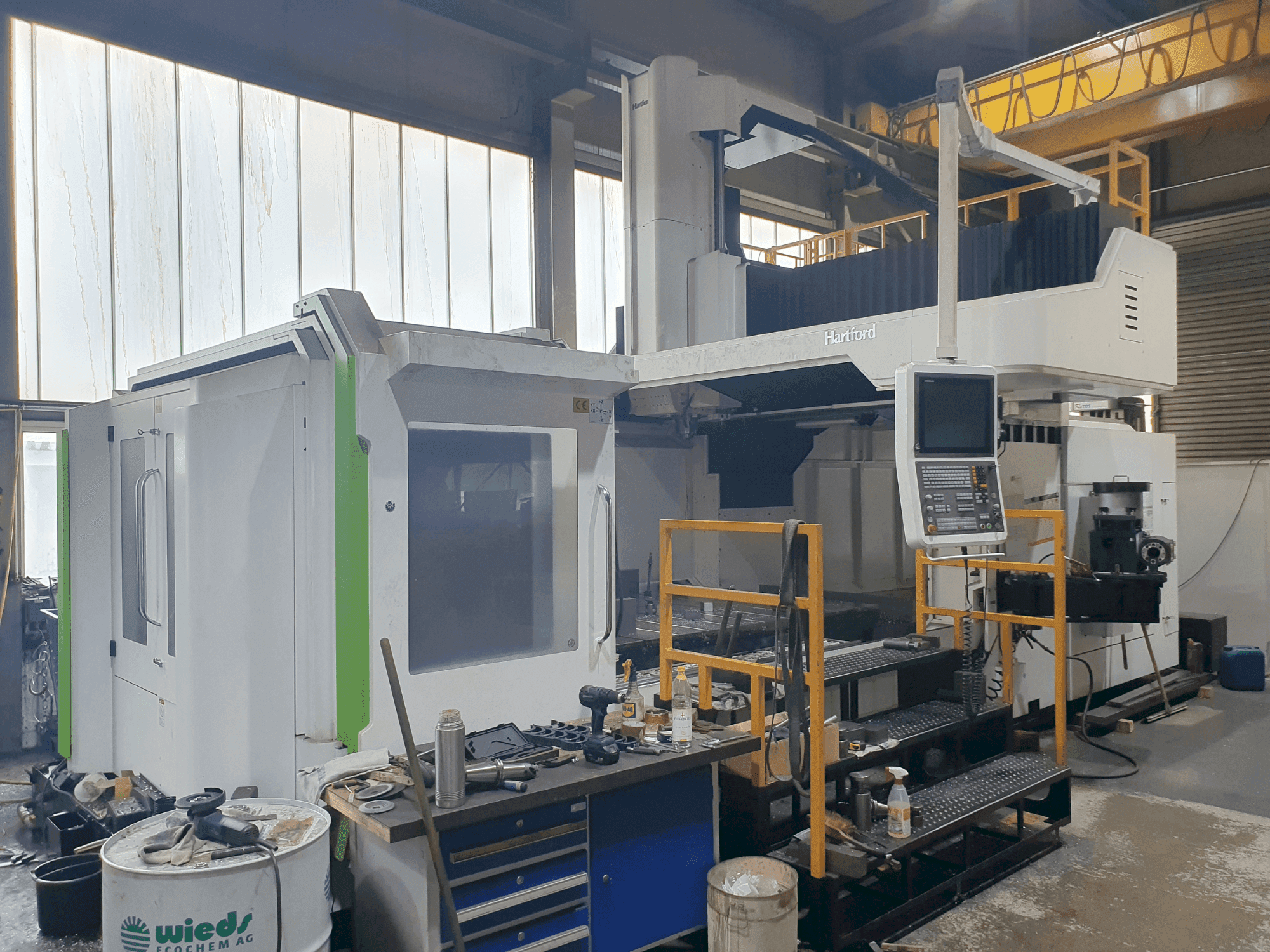

Front view of HARTFORD HSA 320  machine

HARTFORD - HSA 320DE-MIL-HAR-2021-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Hartford HSA 320 machining center was manufactured in 2021. It features a robust clamping table of 3000 x 1800mm, supporting up to 10,000 kg, and a thermally stable main spindle with a SK50 tool holder. The machine includes a closed cooling circuit and an automatic two-stage gearbox, enhancing its performance with a spindle speed of up to 6,000 rpm. Ideal for heavy and precise machining tasks, the Hartford HSA 320 machine we have for sale. Contact us for further details.

Overview

  • brand: HARTFORD
  • year: 2021
  • MODEL: HSA 320
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Immediately

Technical Information - HARTFORD HSA 320

General Data

  • Measurements width: 5400 mm
  • Measurements depth: 9100 mm
  • Measurements height: 5300 mm
  • Machine weight: 28500 kg

Main drive

  • Spindle speed range: 10-6000 rpm 1/MIN
  • Spindle motor power: 30 kW (S6-40%), 25 kW (S6-60%), 20 kW (S1-100%)
  • Tool taper: SK50
  • Number of axis: 3

Movement

  • X-AXIS Movement: 3000 mm
  • Y-AXIS Movement: 2000 mm
  • Z-AXIS Movement: 1000 mm

Workpiece

  • Workpiece weight: 10000 kg

Table

  • Outer length: 3000 mm
  • Outer width: 1800 mm
  • TSlots size: 22 mm
  • Number of tslots: 11
  • Distance between: 250 mm

Media

  • Main electronic connection: 400 V, 50 Hz, 3 Ph
  • Power consumption: 55 kVA
  • Air pressure: 6.5 bar

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - High spindle power and speed, large working range, high table load capacity.
    • Qualitative Machine Benefits:
      • - High positioning and repeat accuracy, thermally stable main spindle, closed cooling circuit.

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
