HAMMERLE AP 200-3100 Bending machine

Show in original language

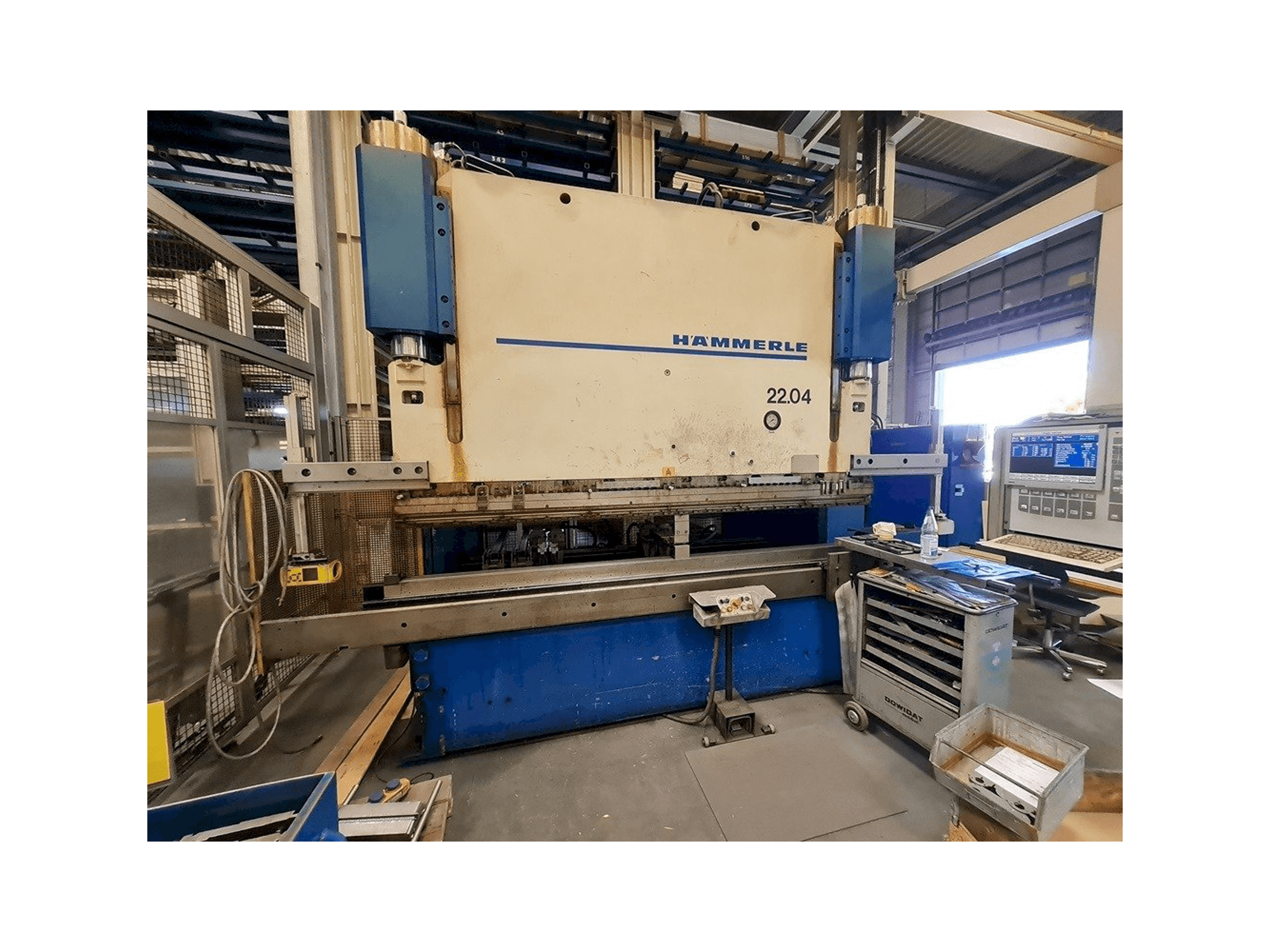

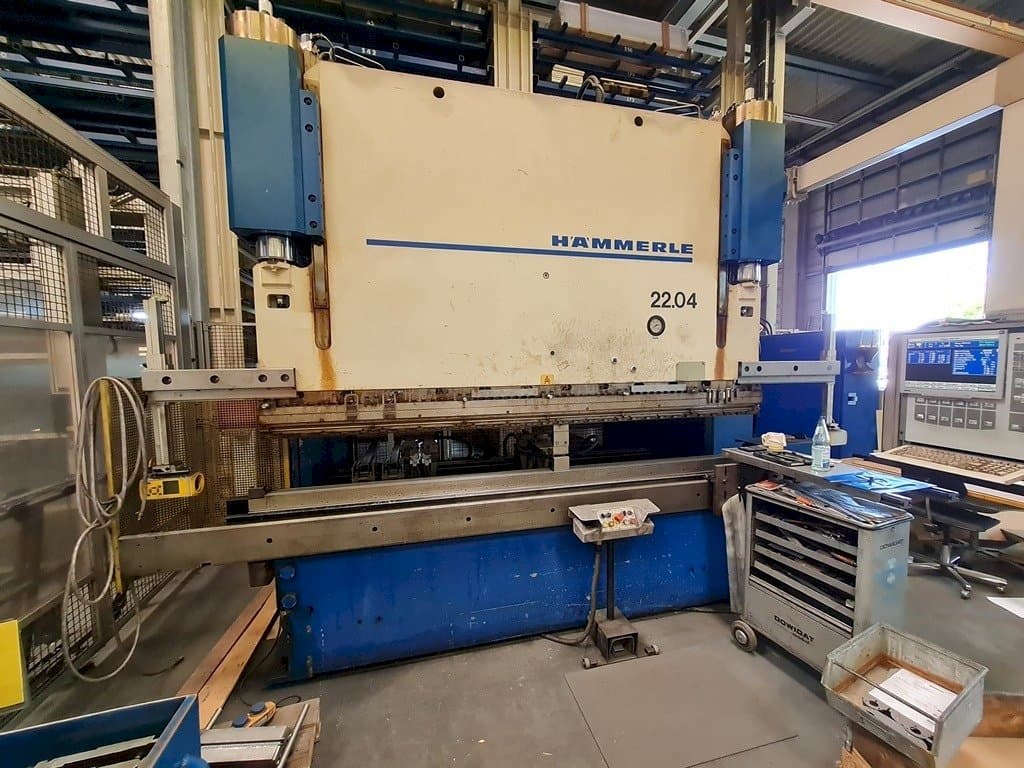

This HAMMERLE AP 200-3100 Bending machine was manufactured in the year 2003 in Switzerland. It is equipped with a BENQ INFINITRON control unit. The machine has a pressing force of 2000 kN, is in very good condition and well maintained.

Overview

brand: HAMMERLE
year: 1993
MODEL: AP 200-3100
application type: Bending
Location: Germany
machine type: Press Brake
availability: Sold

Technical Information - HAMMERLE AP 200-3100

General Data

Measurements width: 4600 mm
Measurements depth: 2300 mm
Measurements height: 3300 mm
Machine weight: 18500 kg

Control Unit

Model: INFINITRON

Main drive

Pressing force: 2000 kN
Stroke: 400mm
Number of axis: 4

Media

Main electronic connection: 380 V / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Throat : 300 mm
- - Max. Working length : 3100 mm
- - Hydraulic oil capacity: 330 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
