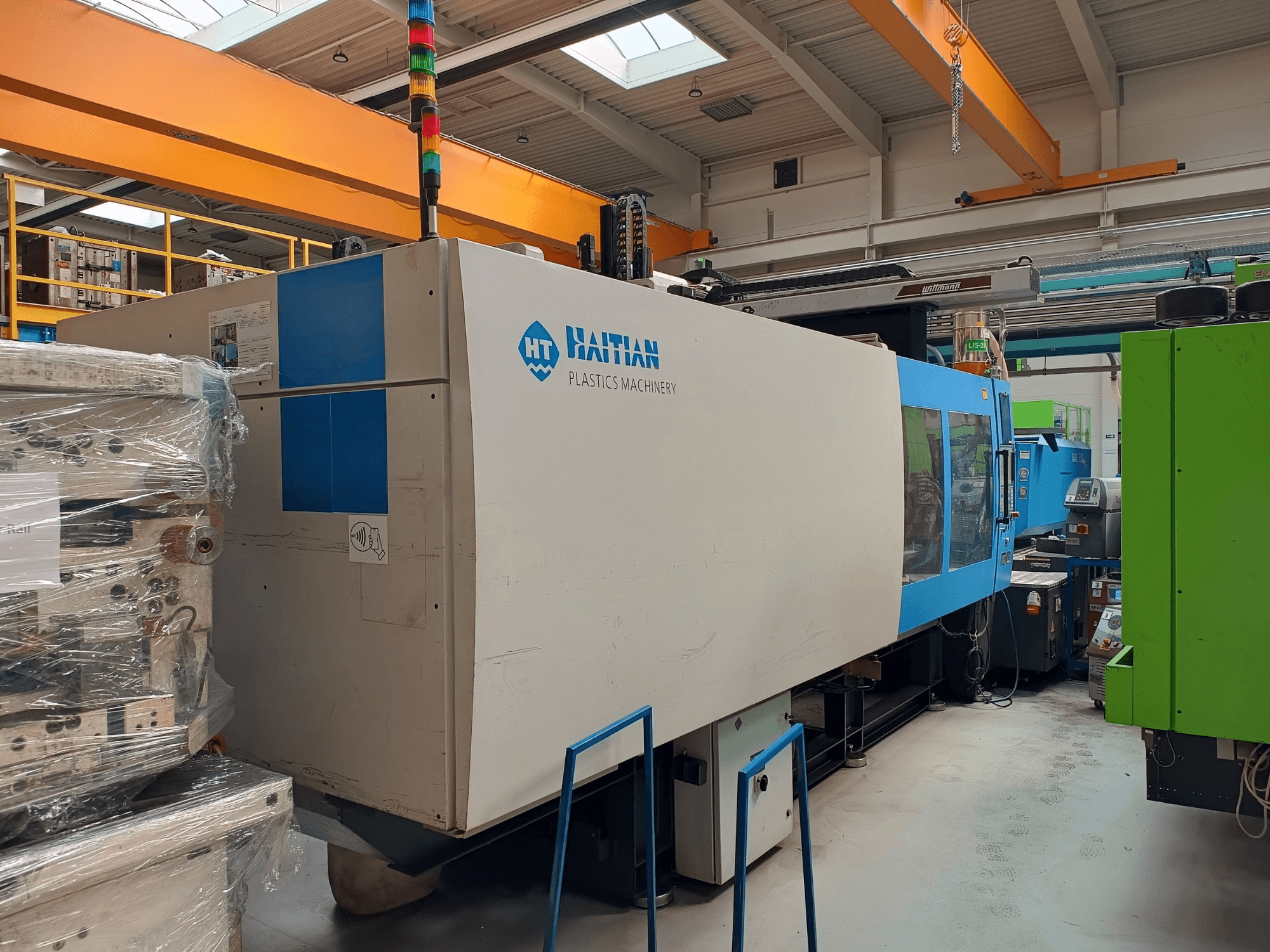

HAITIAN MARS 5300/4500

Photo Gallery

HAITIAN - MARS 5300/4500CZ-INJ-HAI-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used HAITIAN MARS 5300/4500 For Sale | gindumac.com

Show in original language

Hydraulic injection moulding machine manufactured in 2008. This HAITIAN MARS 5300/4500 features a clamping force of 530 tons and a minimum mold height of 240 mm. It includes a screw diameter of 80 mm and a shot volume of 2212 cm³. If you are looking to get high-quality injection moulding capabilities, consider the HAITIAN MARS 5300/4500 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: HAITIAN
year: 2008
MODEL: MARS 5300/4500
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine

Technical Information - HAITIAN MARS 5300/4500

Technical Specification

Clamping Force: 5300 kN
Screw Diameter: 80 mm

Additional Information

Tie bar spacing (W×H): 840 × 830 mm
Magnetic clamping: Yes
Minimum platen size (W×H): 580 × 530 mm
Minimum mold height: 240 mm
Maximum distance between platens: 740 mm
Maximum weight of moving mold half: 1700 kg
Centering ring diameter/height: 200 (120) / 15 mm
Sprue bushing radius: R19
Ejector coupling thread diameter: M24
Shot volume: 2212 cm³
Hydraulic core pulls: 2
Power supply: 196 A

Additional equipment

Hot runners: 16
Hydraulic cascades (valve gate control): 8

Wittmann robot is not included!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
