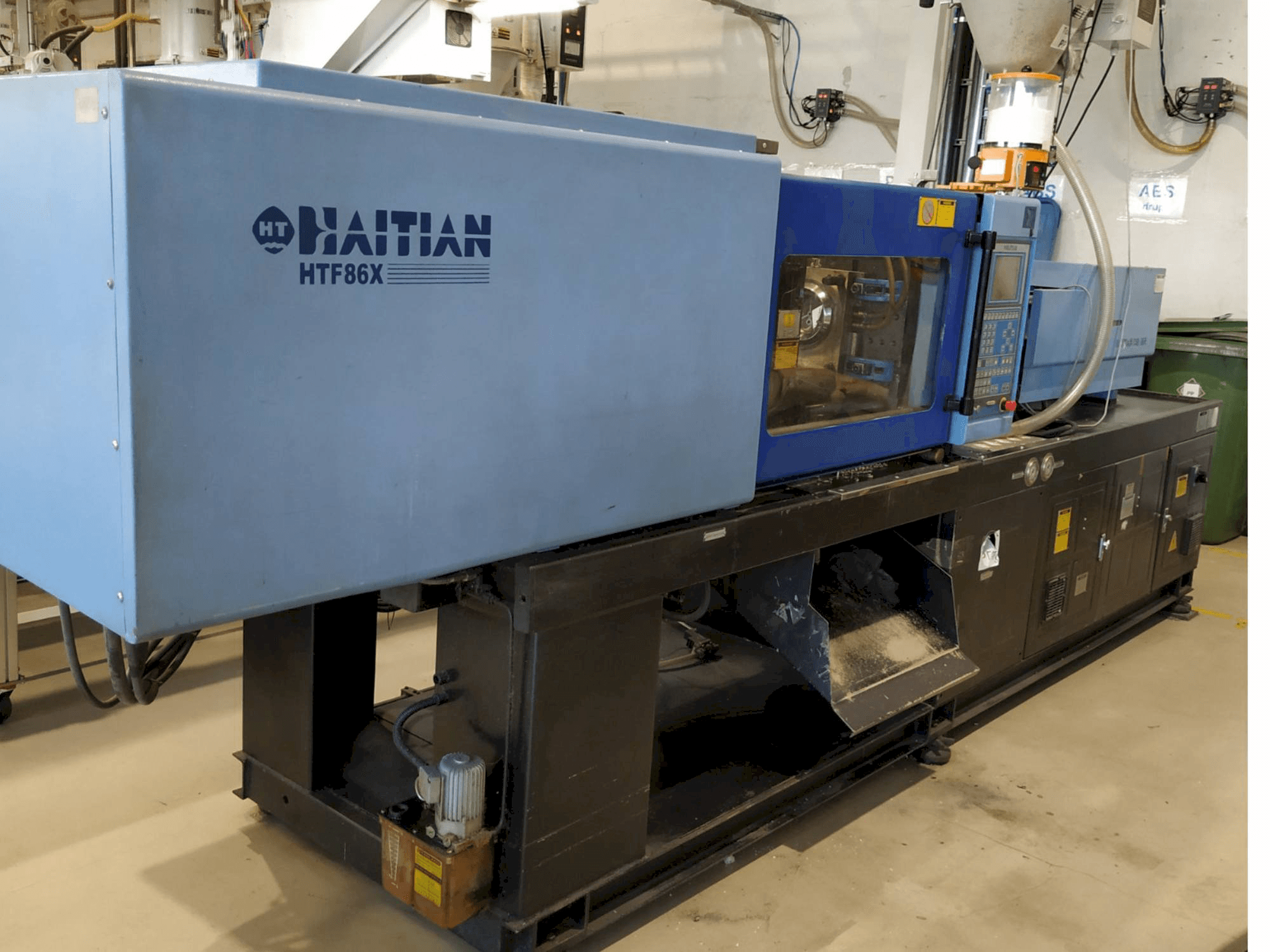

Left side view of HAITIAN HTF86X machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HAITIAN HTF86X

Photo Gallery

HAITIAN - HTF86XLV-INJ-HAI-2006-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery

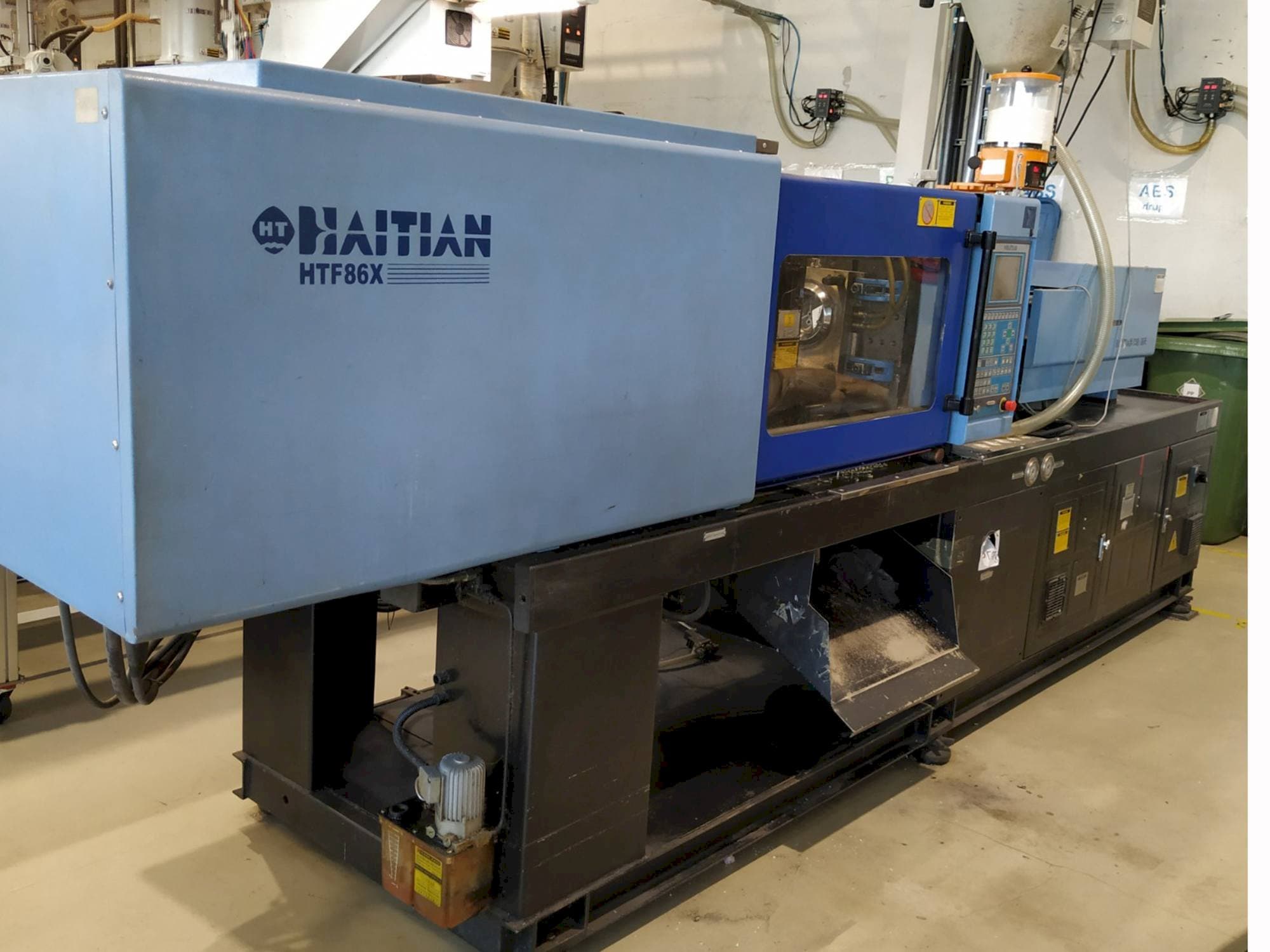

Haitian HTF86X Injection moulding machine

Show in original language

This Haitian HTF86X Injection moulding machine was manufactured in the year 2006. It is equipped with a Hatian control unit. The machine has a clamping force of 860 kN.

Overview

brand: HAITIAN
year: 2006
MODEL: HTF86X
application type: Injection Moulding
Location: Latvia
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: HAITIAN

Technical Information - HAITIAN HTF86X

General Data

Measurements width: 1250 mm
Measurements depth: 4500 mm
Measurements height: 1900 mm
Machine weight: 3450 kg

Control Unit

Brand: HAITIAN

Injection Unit

Screw diameter: 36 mm
Stroke volume: 310 mm CM³
Screw speed: 250 rpm

Clamping unit

Clamping force: 860 kN
Mould height min: 150 mm
Mould height max: 360 mm
Ejector stroke: 100 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Shot size (theoretical): 147 cm3
- - Injection weight: 134 g
- - Injection speed: 108. 4 mm/s
- - Plasticizing capacity: 11. 9 g/s
- - Injection pressure: 183 mpa
- - Max. Pump pressure: 16 mpa
- - Pump motor power: 13 kw
- - Heater power: 6. 2 kw
- - Capacity - 86000 kg
- - Hopper capacity: 25 kg
Qualitative Machine Benefits:
- - Oi tank capacity: 230 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
