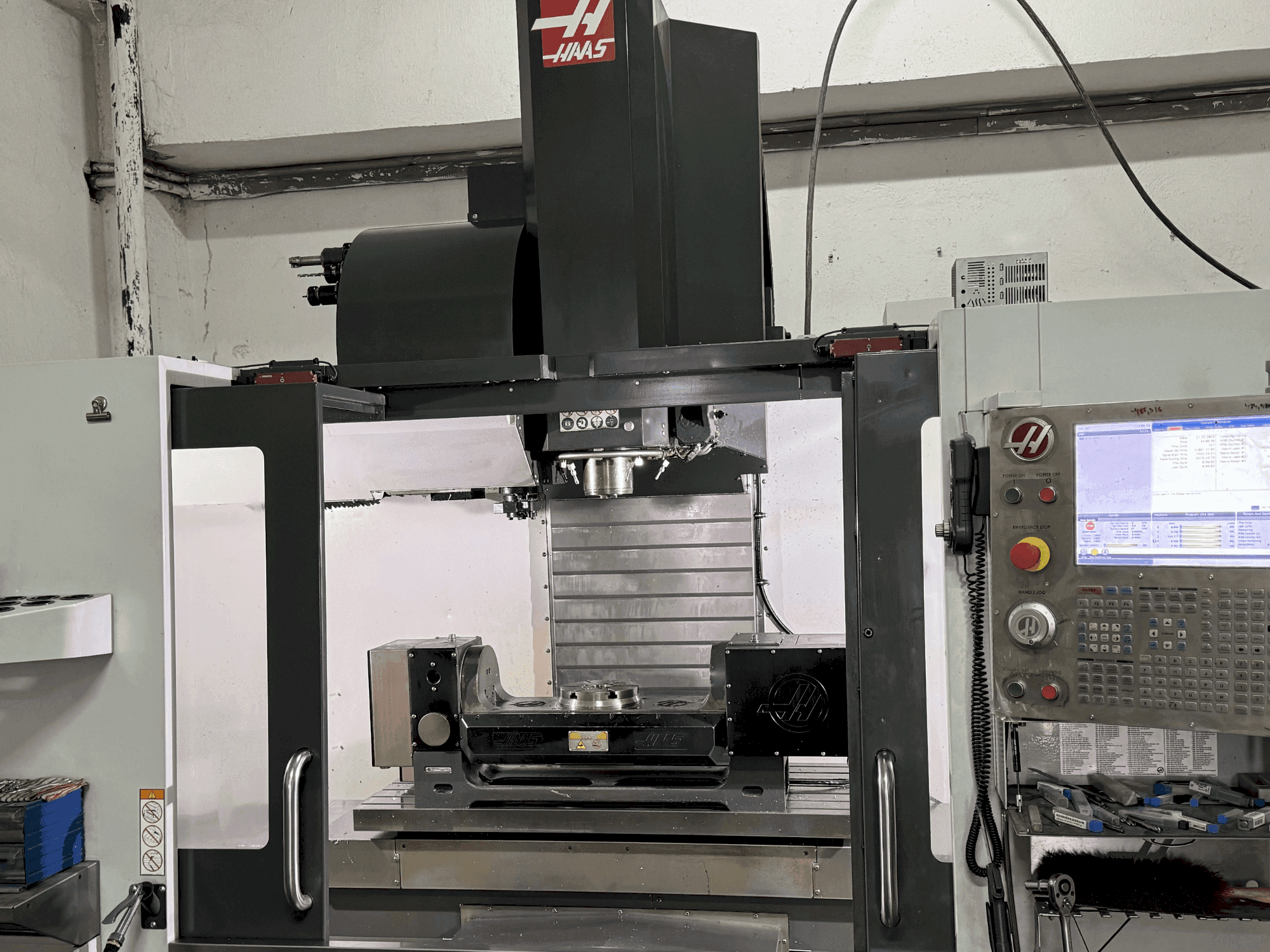

Front view of HAAS VF-5/40TR  machine

HAAS VF-5/40TR

HAAS - VF-5/40TR

2018

Rs. 10,671,400

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HAAS VF-5/40TR Vertical Machining center was manufactured in the year 2018 in the United States. It is equipped with a HAAS control unit and has 5 axis (removable 210 mm 2-axis thumb rotary table). The machine has a programmable Coolant Nozzle; a multi-position nozzle that automatically directs coolant precisely at the cutting tool. It has a spindle speed of 8100 rpm.

Overview

  • brand: HAAS
  • year: 2018
  • MODEL: VF-5/40TR
  • application type: Milling
  • Location: Bulgaria
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HAAS
  • GINDUMAC ID: BG-MIL-HAA-2018-00001

Technical Information

Control Unit

  • Brand: HAAS

Main drive

  • Spindle speed range: 8100 rpm 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 1270 MM
  • Y-AXIS Movement: 660 MM
  • Z-AXIS Movement: 635 MM

    Additional equipment

    • - 95 gallon (360 liter) flood cooling system
    • - 24 +1 side-bayonet tool changer

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - 5-axis vertical machining center (1270 x 660 x 635 mm) with removable 210 mm, 2-axis thumb rotary table
        • - X-axis: 1. 270mm / y-axis: 660mm / z-axis: 635mm / a-axis: +-120° / b-axis: 360°
        • - 40 cones
        • - 30 hp (22. 4 kw) vector disc // 710 ipm (18. 0 m/min) rapids
        • - Built-in direct drive vane
        • - Wireless intuitive probing system: renishaw. Includes the haas visual programming system, macros, spindle orientation, and coordinate rotation and scaling.
        • - Standard program memory: 1 gb of onboard memory for program storage and backup.
        • - Chip auger: automatically removes chips from the machine, while compressing them and wringing out the coolant.
        • - Haasconnect: remote monitoring of your haas machine. Requires the machine to be connected to the internet.
        • - Ethernet interface: allows you to easily transfer files to and from the machine over a local wired network.
      • Qualitative Machine Benefits:
        • - Media display is used within an nc program to call up media files (images, videos, pdf files) from memory and display them on the control screen as the program runs.
        • - High-speed machining; allows faster feedrates and more complex toolpaths, without hesitation or starving the machine.
        • - Remote jog handle with extra-large touchscreen display; lets you to get up-close to the machine’s work area for part setup, changeover, and inspection, while still having control of the machine.
        • - Rigid tapping; synchronized tapping, with built-in tap cycles.
        • - Through-spindle coolant, 300 psi (21 bar). Provides high-pressure coolant directly through the cutting tool. Requires 3-phase power. Note: tsc cannot be installed in the field unless the tsc-ready option is ordered with the machine.
        • - Through-tool air blast; supplies high-pressure / high-flow air through the tool, directly to the cutting edge. Available for inline spindles, and 50-taper mills. Requires a haas through-spindle coolant system, or the tsc ready option.
        • - Auxiliary coolant filter system; a bag-style filtration system that keeps the coolant free of particulates down to 25 microns. Note: if high-pressure flood coolant (high pressure cool) is installed, do not connect the auxiliary coolant filter (acf) directly to the high-pressure flood coolant pump. To use the auxiliary coolant filter with high-pressure flood coolant, the filter must be connected through an optional through-spindle coolant (tsc) system.
        • - Programmable coolant nozzle; a multi-position nozzle that automatically directs coolant precisely at the cutting tool.
        • - Dwo/tcpc
        • - Machine other options: acf/tab /tsc/wips-r/rtap-3

      Extra information

      • - USB port, key lock memory, hard tapping, 15" LCD screen, 750 MB program memory, coordinate rotation and scaling, color distantion push handle, macros, high speed milling, automatic chip auger, programmable coolant nozzle

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
