HAAS VF-4SS

HAAS - VF-4SSGB-MIL-HAA-2012-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF-4SS Vertical Machining Center

Show in original language

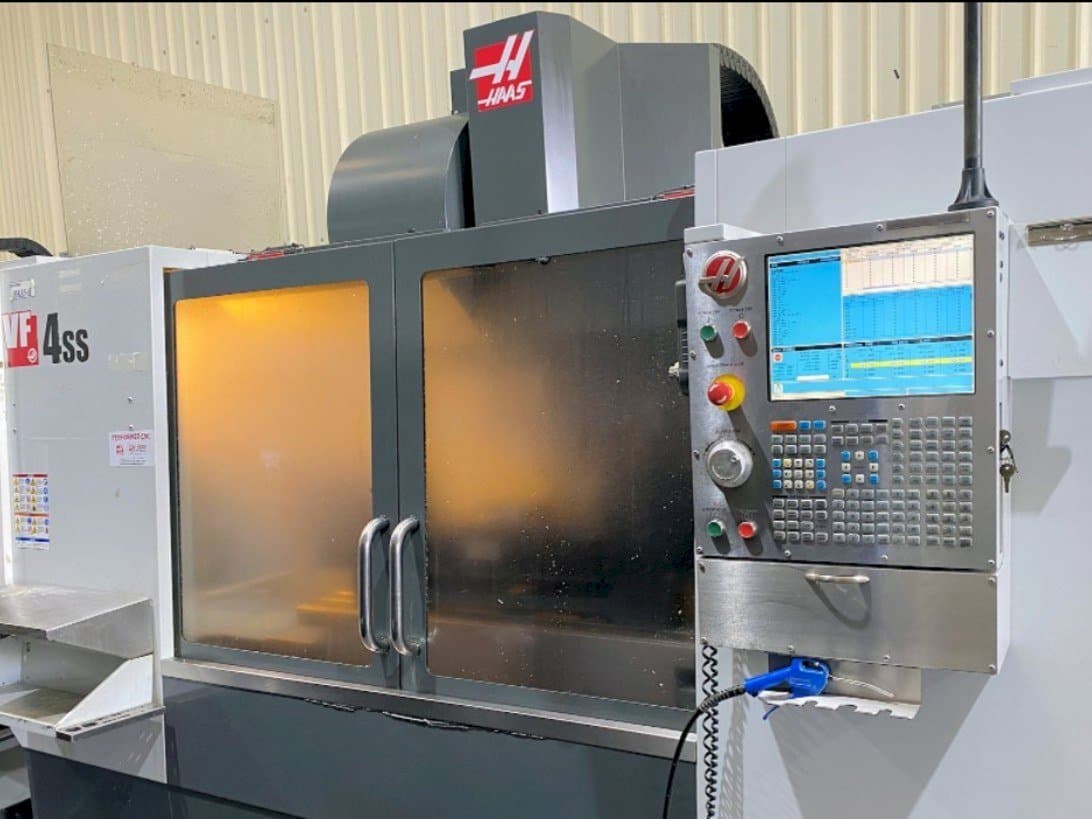

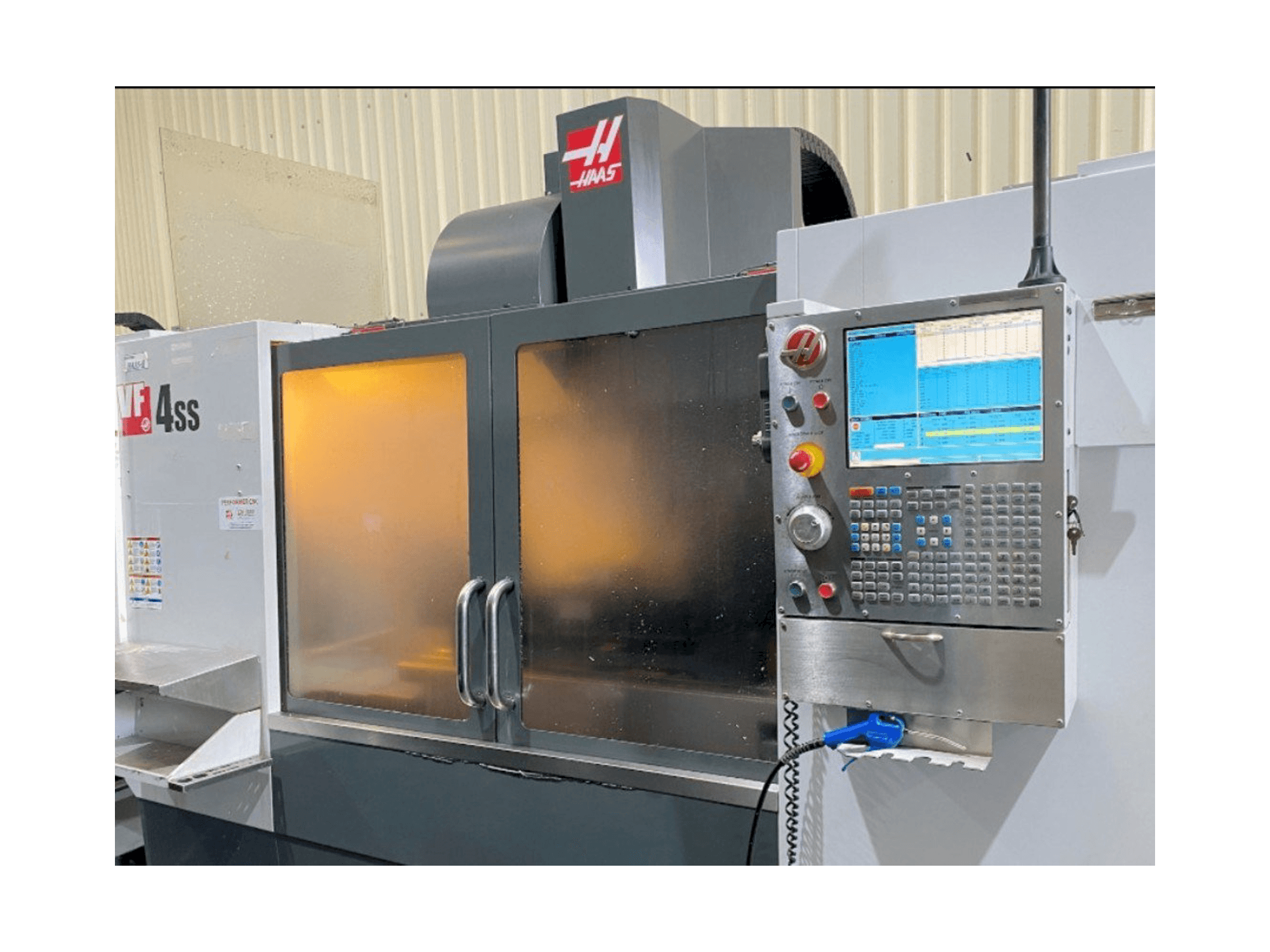

This HAAS VF-4SS vertical machining center was manufactured in the United States in the year 2012. It has a record of 54432 spindle hours. This 5 axis machine is operated through a control unit of the same brand. It has a spindle speed up to 12000 rpm and a spindle motor power of 22.4 kW. Machine in good condition.

Overview

brand: HAAS
year: 2012
MODEL: VF-4SS
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-4SS

General Data

Measurements width: 3629 mm
Measurements depth: 2794 mm
Measurements height: 2985 mm
Machine weight: 6033 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 1324 mm
Outer width: 457 mm

Tools

Slots in storage: 24
Type of tool holder: BT 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 axis trunnion table
- - Min-max height under spindle 102-737 mm
- - Rapid feedrates 35. 6m/minute
- - Spindle motor power 22. 4 kw
- - Wips system (wireless intuitive probing system)
- - Programmable coolant nozzle, coolant
- - Through spindle coolant
- - High speed machining function
- - Hard drive 16 mb, usb port
Qualitative Machine Benefits:
- - Good condition

Extra information

- 3+2 (trunnion table) axis controlled

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
