- HAAS VF-3YT Vertical machining center

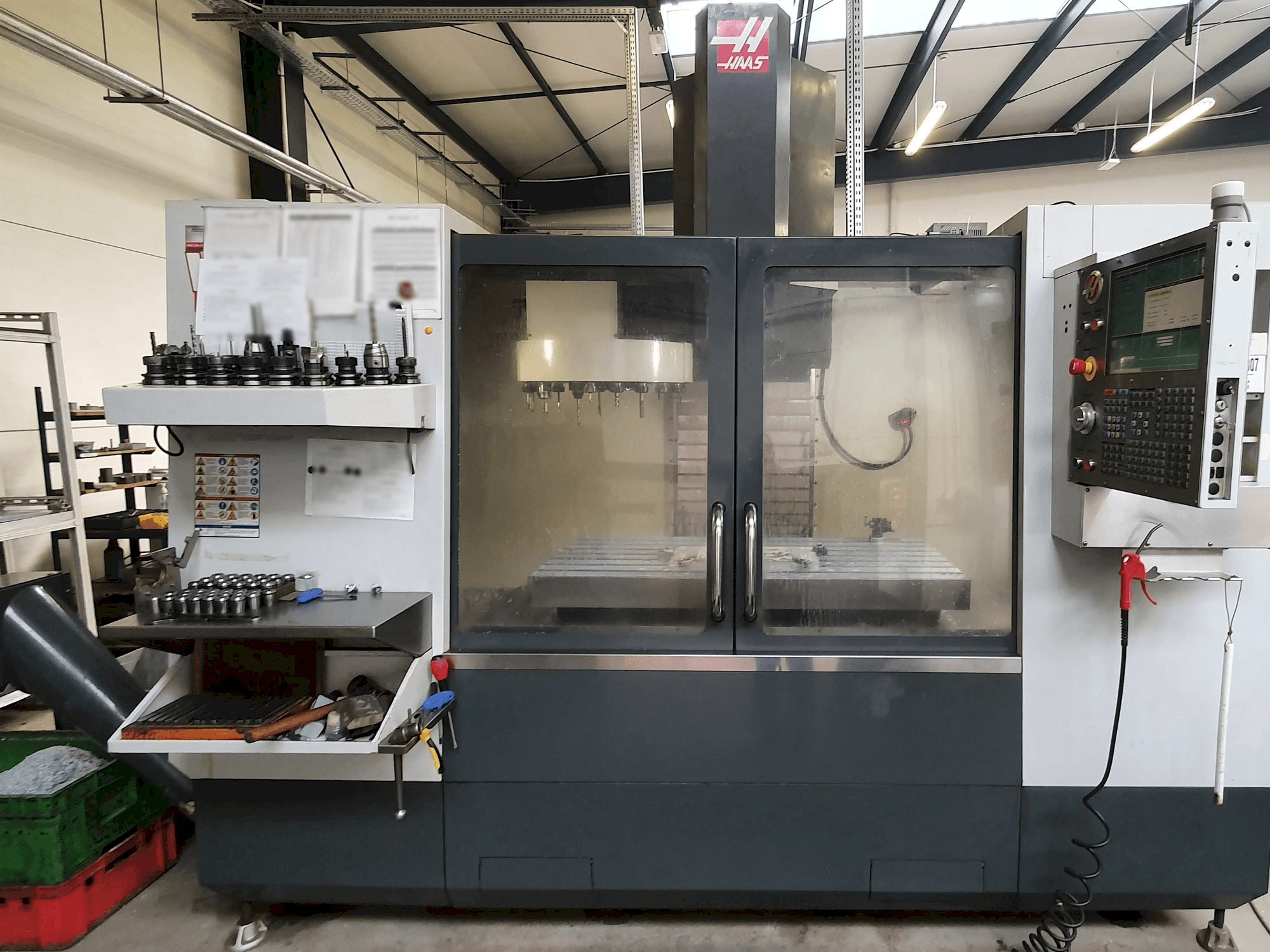

This HAAS VF-3YT Vertical machining center was manufactured in the United States in the year 2012. This 3 axis machine is operated through a control unit of the same brand. It has a spindle speed up to 8100 rpm. It has a 1372 x 635 mm table with a capacity of 1588 kg of table load. Machine ready for tests. Ready to install 4th axis (rotary).
Overview
- brand: HAAS
- year: 2012
- MODEL: VF-3YT
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF-3YT
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Depth: 2590 mm
- Machine Height: 3230 mm
- Machine Weight: 6350 kg
- Table Length: 1372 mm
- Table Load: 1588 kg
- Table Width: 635 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1016 mm
- Y-axis Travel: 660 mm
- Z-axis Travel: 635 mm
Technical Specification
- Max. Tool Weight: 5.4 kg
- Spindle Speed: 8100 RPM
Additional Information
Additional equipment
- No tooling included in the offer
Machine Benefits
Qualitative Machine Benefits
- Machine ready for tests
- Ready to install 4th axis (rotary)
Technical Machine Benefits
- Tool changer: carousel type
- Atc: 20 pcs
- Spindle taper: bt40
- Max. Tool diameter: 89 mm
- Max. Tool length: 250 mm
- Max. Tool weight 5. 4 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
