HAAS VF-3YT/50

Photo Gallery

HAAS - VF-3YT/50GB-MIL-HAA-2012-00004

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

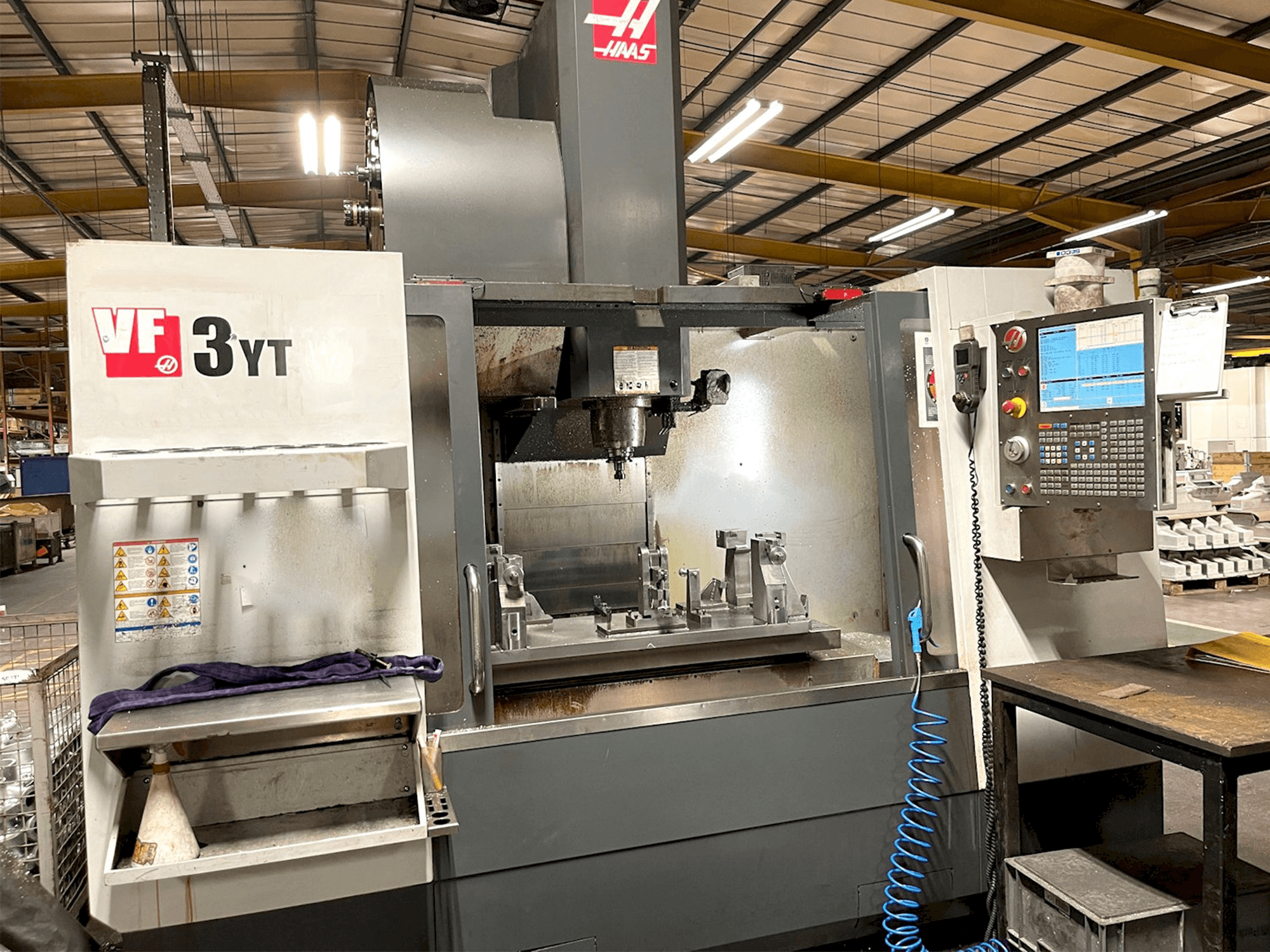

HAAS VF-3YT/50 Vertical machining center

Show in original language

This HAAS VF-3YT/50 Vertical machining center was manufactured in the United States in the year 2012 and has 6355 spindle hours. It is operated through a control unit of the same brand and has 3 axis. The machine has a spindle speed up to 7500 rpm, is in very good condition.

Overview

brand: HAAS
year: 2012
MODEL: VF-3YT/50
production hours: 6355
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-3YT/50

General Data

Measurements width: 3810 mm
Measurements depth: 2896 mm
Measurements height: 3200 mm
Machine weight: 7212 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 7500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 1321 mm
Outer width: 584 mm

Tools

Slots in storage: 30
Max weight: 5,4 kg
Max tool diameter: 102/178 mm
Type of tool holder: BT 50

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine manual
Very good condition

Technical Machine Benefits

Min - max height under spindle 178 - 813 mm
Rapid feedrates 18 m/min
Spindle motor power 22 kw
Tool change time (chip to chip) 6. 3 seconds
Through spindle coolant, coolant, interlocked guards, low volt light,
Programmable coolant nozzle, remote hand wheel, usb port, swarf auger
Gearbox with 2 speeds

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
