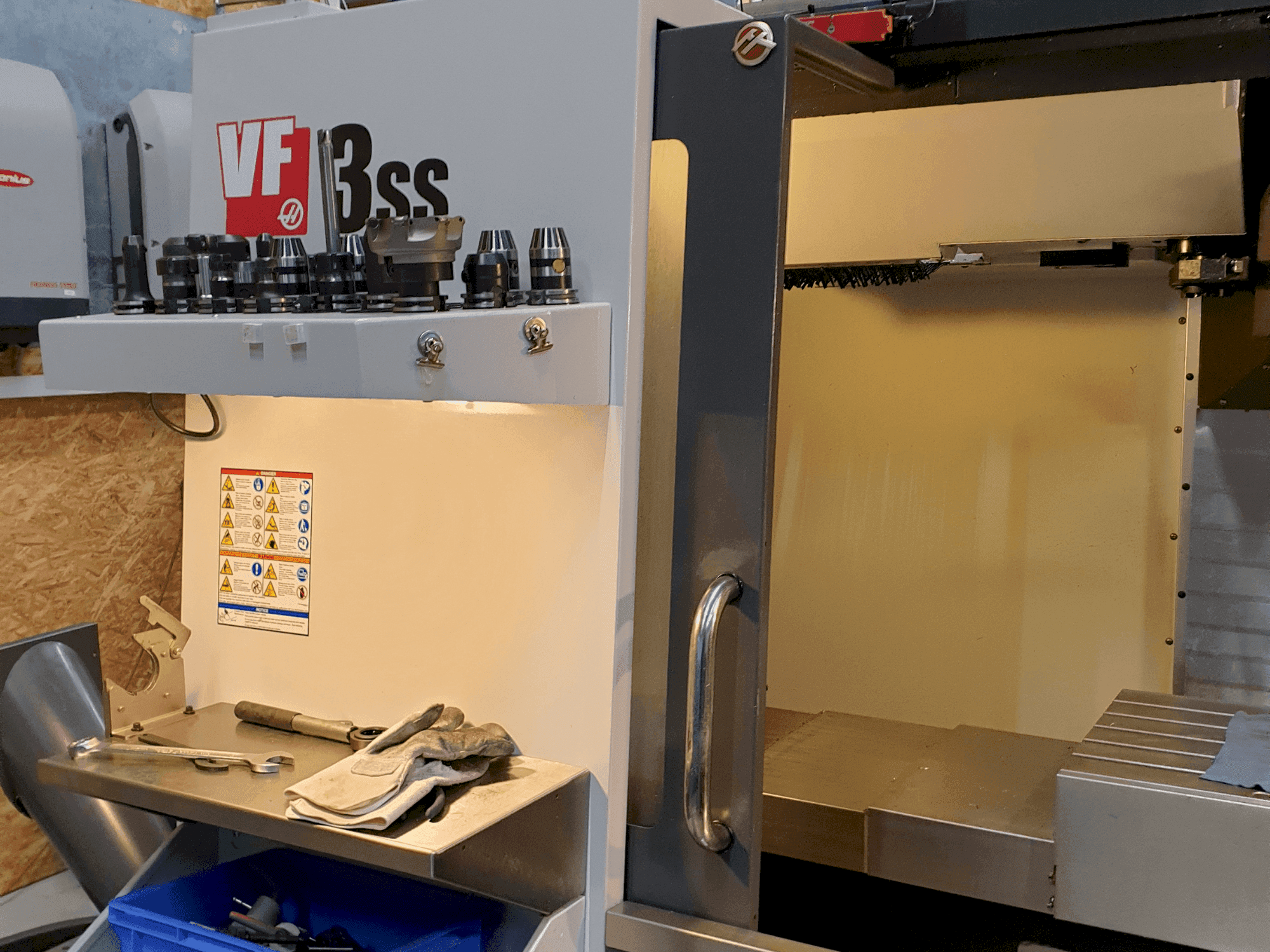

Front view of HAAS VF-3SS  machine

HAAS - VF-3SSDE-MIL-HAA-2013-00001

Rs. 3,743,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis HAAS VF-3SS vertical machining centre was manufactured in 2013. It features a Super-Speed configuration with a 1,016 x 508 x 635 mm work envelope, SK-40 spindle achieving 12,000 RPM, and a 30 HP vector drive motor. Rapid traverse rates reach up to 35.6 m/min, and it includes a side-mount high-speed tool changer with 24+1 tool positions. If you are looking to get high-quality milling capabilities, consider the HAAS VF-3SS machine we have for sale. Contact us for more information.

Overview

  • brand: HAAS
  • year: 2013
  • MODEL: VF-3SS
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - HAAS VF-3SS

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 22.4 kW
  • Tool taper: SK-40
  • Number of axis: 3

    Additional equipment

    • - Accessories: LK1 - Lifting Kit includes mounting elements and brackets for machine lifting
    • - Synchronized Tapping: RTAP-3 eliminates the need for expensive tapping compensators, prevents thread pitch deformation, and avoids thread start damage
    • - Connectivity: USB port
    • - Program Memory: 1 MB
    • - Program Security: Lockable via a keyswitch

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Work envelope: 1016 x 508 x 635 mm
        • - Rapid traverse rates: up to 35600 mm/min
        • - Tool changer type: side-mount high-speed tool changer
        • - Capacity: 24+1 tool positions
        • - Special feature: converts a carousel-type tool changer into a side-mount tool changer with 24+1 tool positions
        • - Display: 15" lcd color screen
        • - The innovative inline direct drive system couples the spindle directly to the motor, ensuring vibration-free and smooth operation with superior thermal stability.
        • - Coolant system capacity: 55 gallons (208 liters)
        • - Pump: 0. 6 kw pump delivering 19. 9 l/min at 2 bar

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
