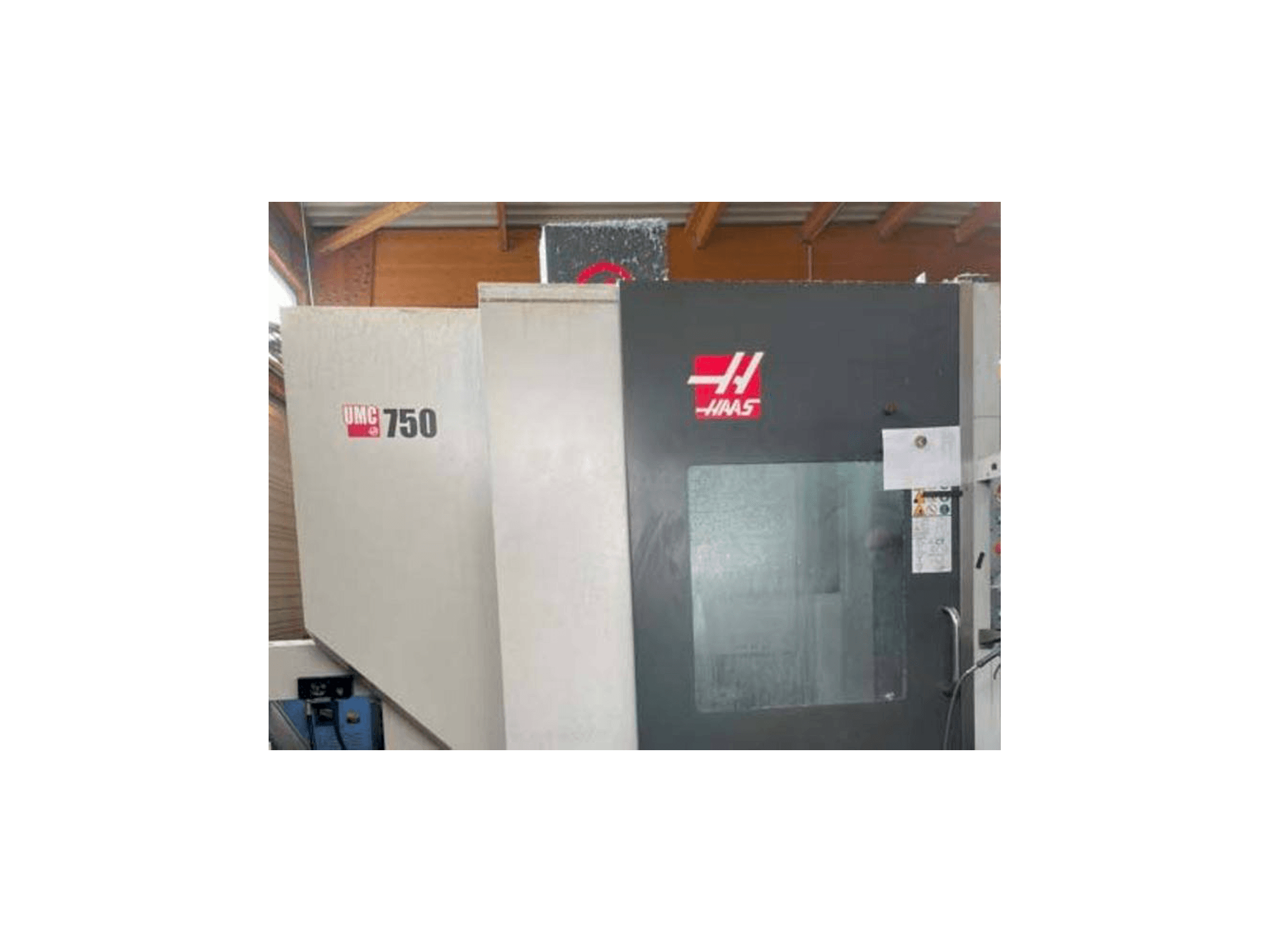

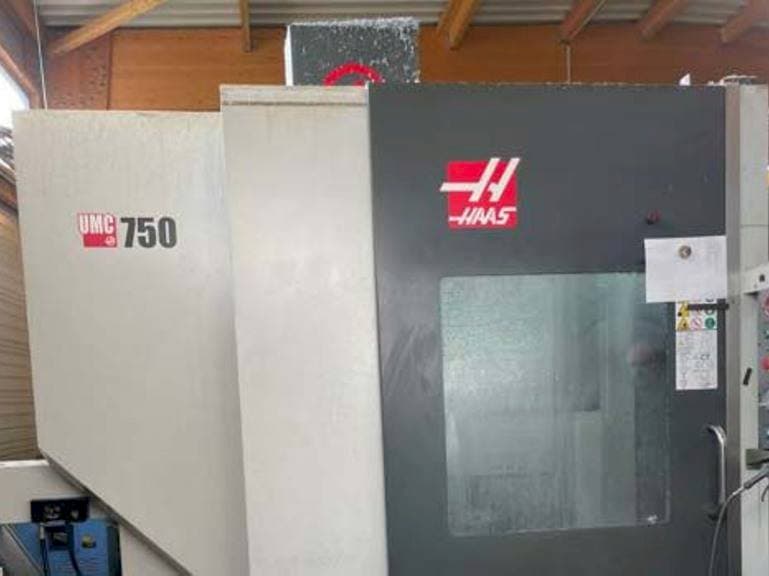

HAAS UMC 750 Vertical Machining center

Show in original language

This HAAS UMC 750 Vertical Machining center was manufactured in the year 2017. It is equipped with a HAAS control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: HAAS
year: 2017
MODEL: UMC 750
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS UMC 750

General Data

Measurements width: 4270 mm
Measurements depth: 2410 mm
Measurements height: 3580 mm
Machine weight: 6500 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 Kw
Number of axis: 5

Movement

X-AXIS Movement: 762 mm
X-AXIS Rapid traverse: 30.5 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Rapid traverse: 30.5 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 30.5 m/min
B-AXIS Movement: 120° to 35-° MM
C-AXIS Movement: 360 MM

Table

Outer length: 500 mm
Distance between: 102-610 mm

Tools

Slots in storage: 40
Type of tool holder: CT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Probing tools length and diameteroptical probe parts
- - Maximum weight of the piece 300 kg
- - Equipment chip conveyor, tool presetting, spindle coolant

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
