➤ Used HAAS ST-40 Horizontal Lathe For Sale | gindumac.com

Show in original language

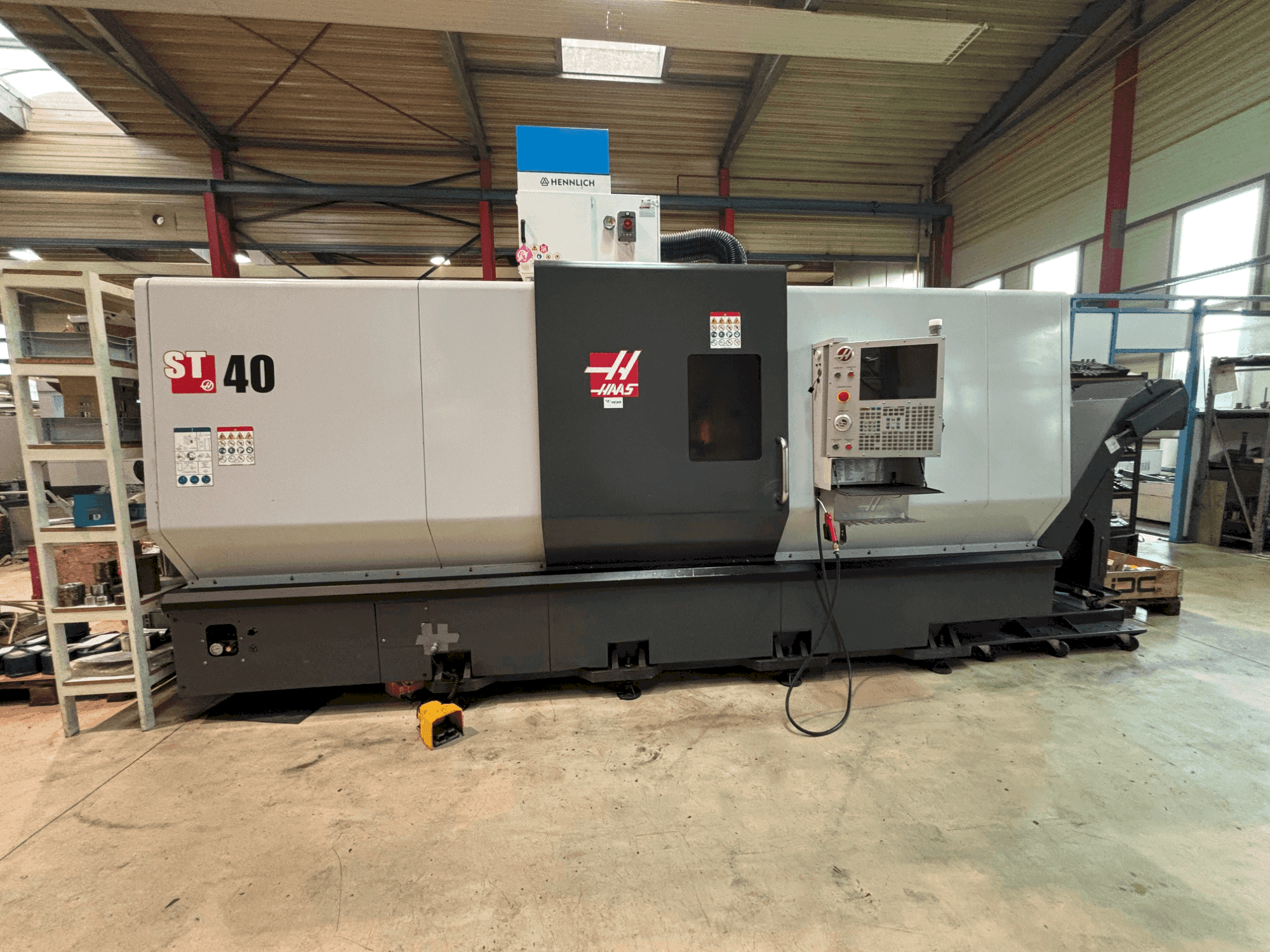

This HAAS ST-40 was manufactured in 2018. A robust horizontal turning machine featuring a 102 mm bar diameter, 2400 min-¹ speed, and a powerful 30 kW motor. It includes a 12-station BOT turret, high-pressure coolant system, and a programmable hydraulic tailstock. Ideal for high precision turning operations. Contact us for more information about this machine.

Overview

brand: HAAS
year: 2018
MODEL: ST-40
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine

Technical Information - HAAS ST-40

Technical Specification

Spindle Power: 30 kW
Spindle Speed: 2400 RPM

Additional Information

Additional equipment

Functions: Synchronized tapping, LCC-4 slat-band chip conveyor, HPC High pressure coolant supply (21 bar), ATP Automatic tool presetting, EXpack, EU-trafo

Machine Benefits

Technical Machine Benefits

Gearbox: 2-stage
Type: bot turret with 12 stations
Features: standard toolholder kit included in bot and hybrid turret, vb-40 12-station hybrid bot/vdi turret
Type: psts programmable hydraulic tailstock
Spindle clearance dm104 mm /turning length 1100 mm/ total cycle time 4782 hours /cycle time cutting movement 4087 hours
Optional: extraction system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
