HAAS - ST-20YPL-TUR-HAA-2019-00003

Name: HAAS ST-20Y
Brand: HAAS
SKU: PL-TUR-HAA-2019-00003
Price: 6351837 INR
Availability: InStock

Rs. 6,351,837

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS ST-20Y For Sale | gindumac.com

Show in original language

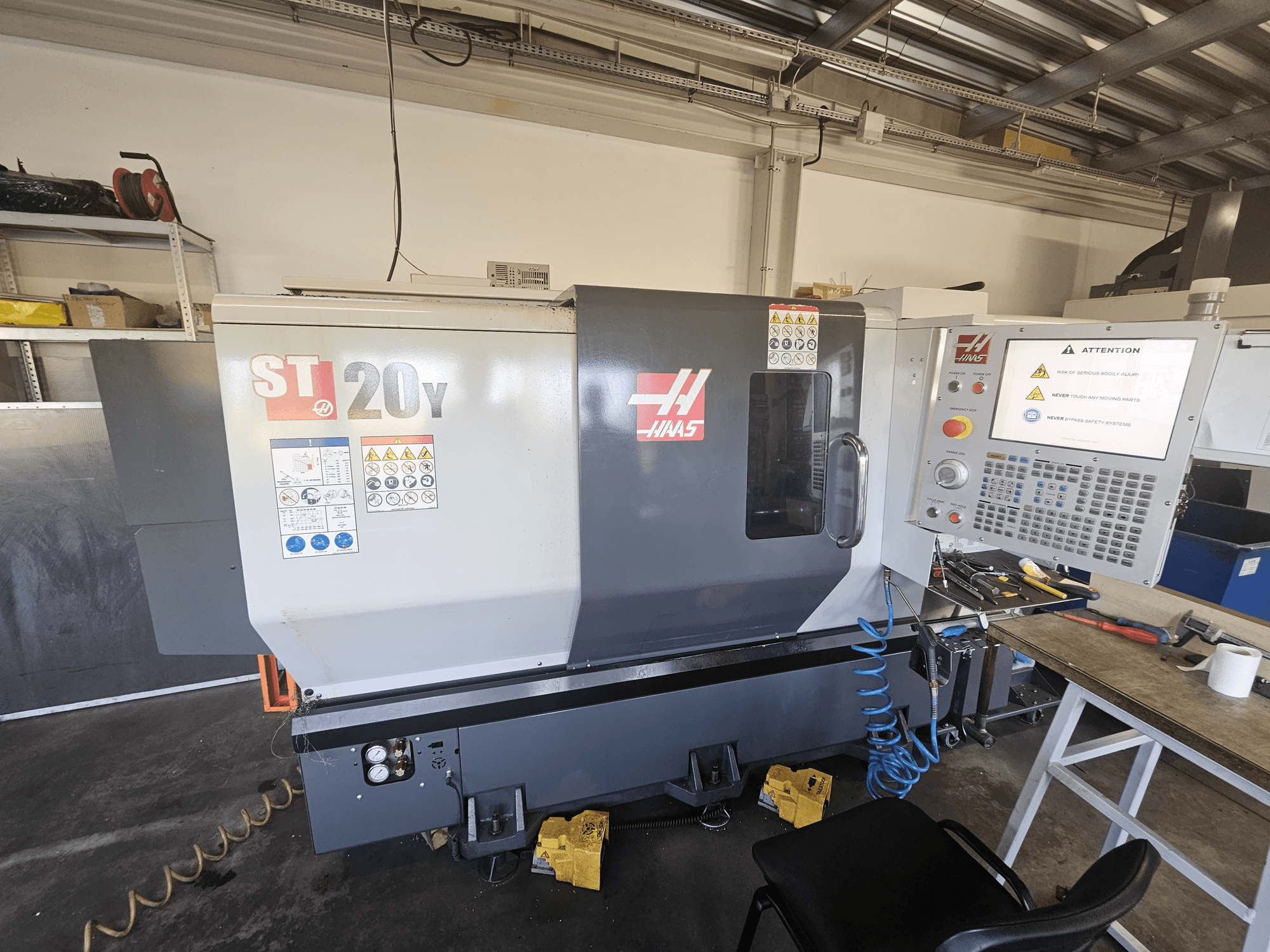

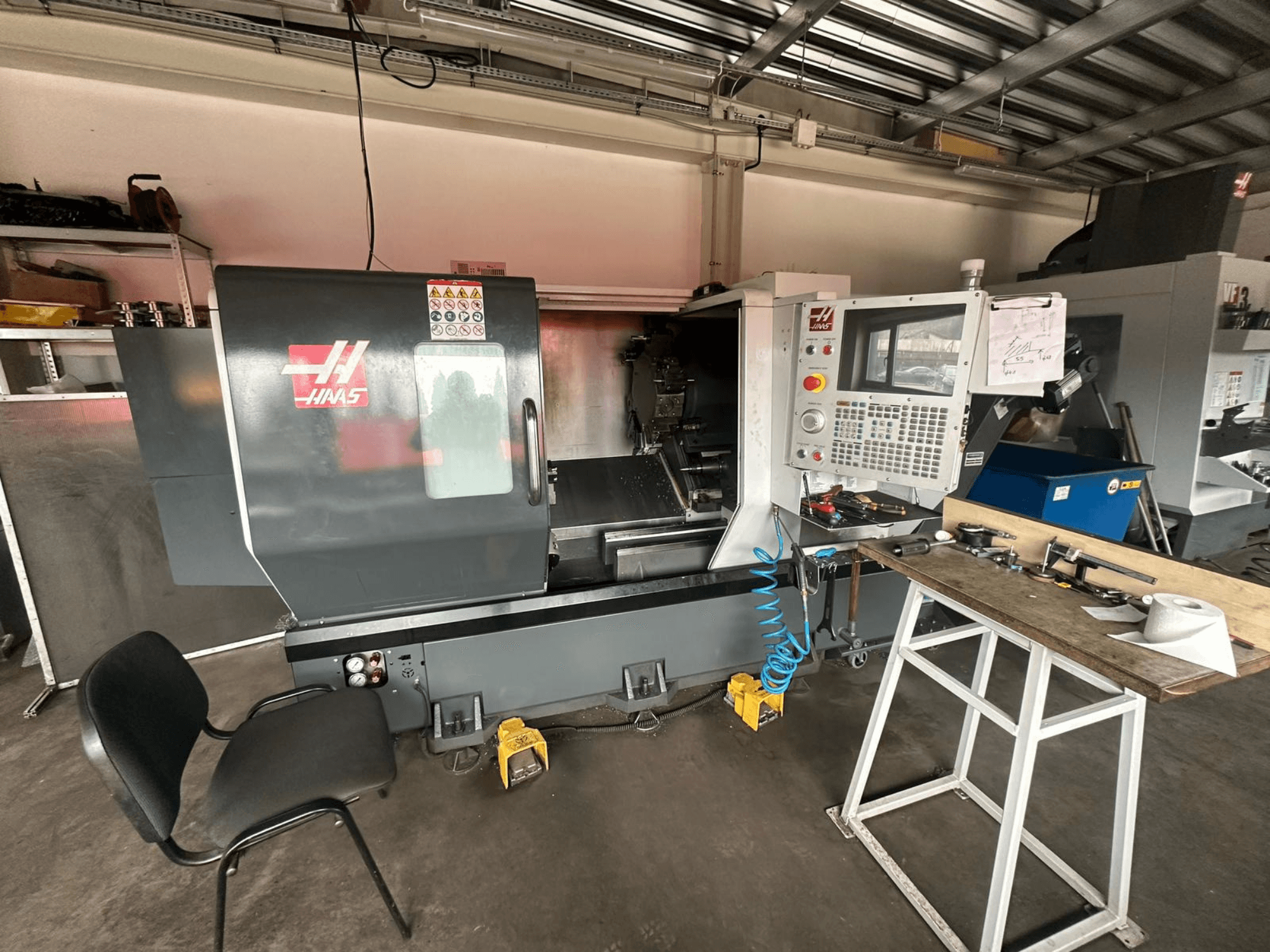

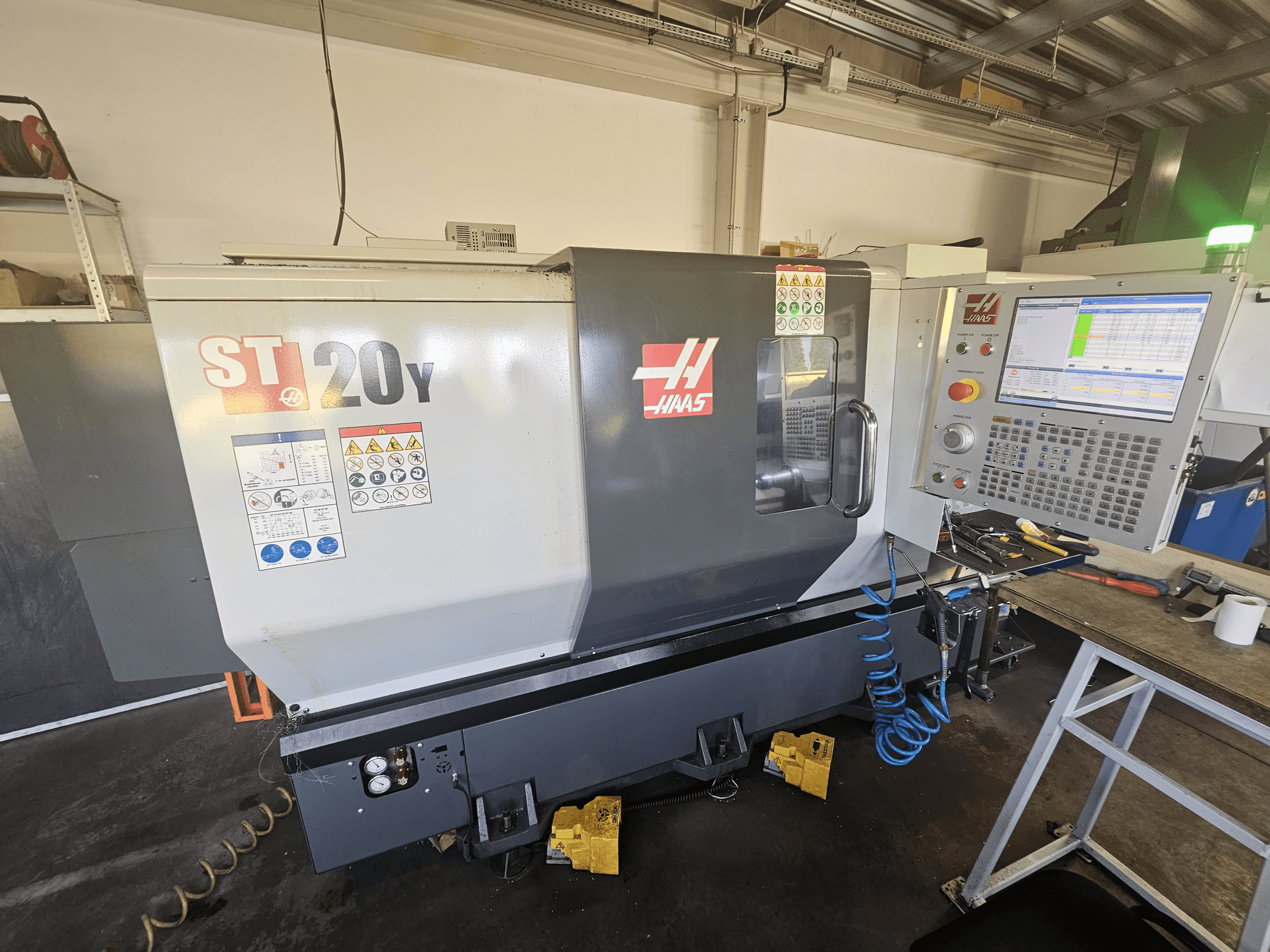

This 3-axis HAAS ST-20Y was manufactured in 2019, featuring a chuck size of 210 mm and a maximum turning diameter of 298 mm. It includes a hydraulically controlled tailstock, automatic tool probe, and a chip conveyor. With a spindle speed up to 4000 rpm and driven tools with a C-axis, consider the opportunity to buy this HAAS ST-20Y horizontal turning machine. Contact us for more information about this machine.

Overview

brand: HAAS
year: 2019
MODEL: ST-20Y
production hours: 3728
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-20Y

Control Unit

Control Brand: HAAS
Control Model: NGC

Movement

C-axis: 360°
Number of Axes: 4
X-axis Travel: 213 mm
Y-axis Travel: 51 mm
Z-axis Travel: 572 mm

Technical Specification

Driven Tools: Yes
Max. Bar Diameter: 64 mm
Number of Tools: 12
Spindle Power: 149 kW
Spindle Speed: 4000 RPM

Additional Information

Chuck size: 210 mm
Maximum part length: 533 mm
Maximum turning diameter: 298 mm
Maximum turning length: 572 mm
Spindle bore capacity: 64 mm
Axis travels:
- X-axis: 213 mm
- Y-axis: ±51 mm
- Z-axis: 572 mm
Spindle nose: A2-6

Additional equipment

Driven tools
C-axis
ATP – Automatic tool probe
PTS – Hydraulically controlled tailstock
CONVEYOR – Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
