➤ Used HAAS ST-20 Horizontal Lathe For Sale | gindumac.com

Show in original language

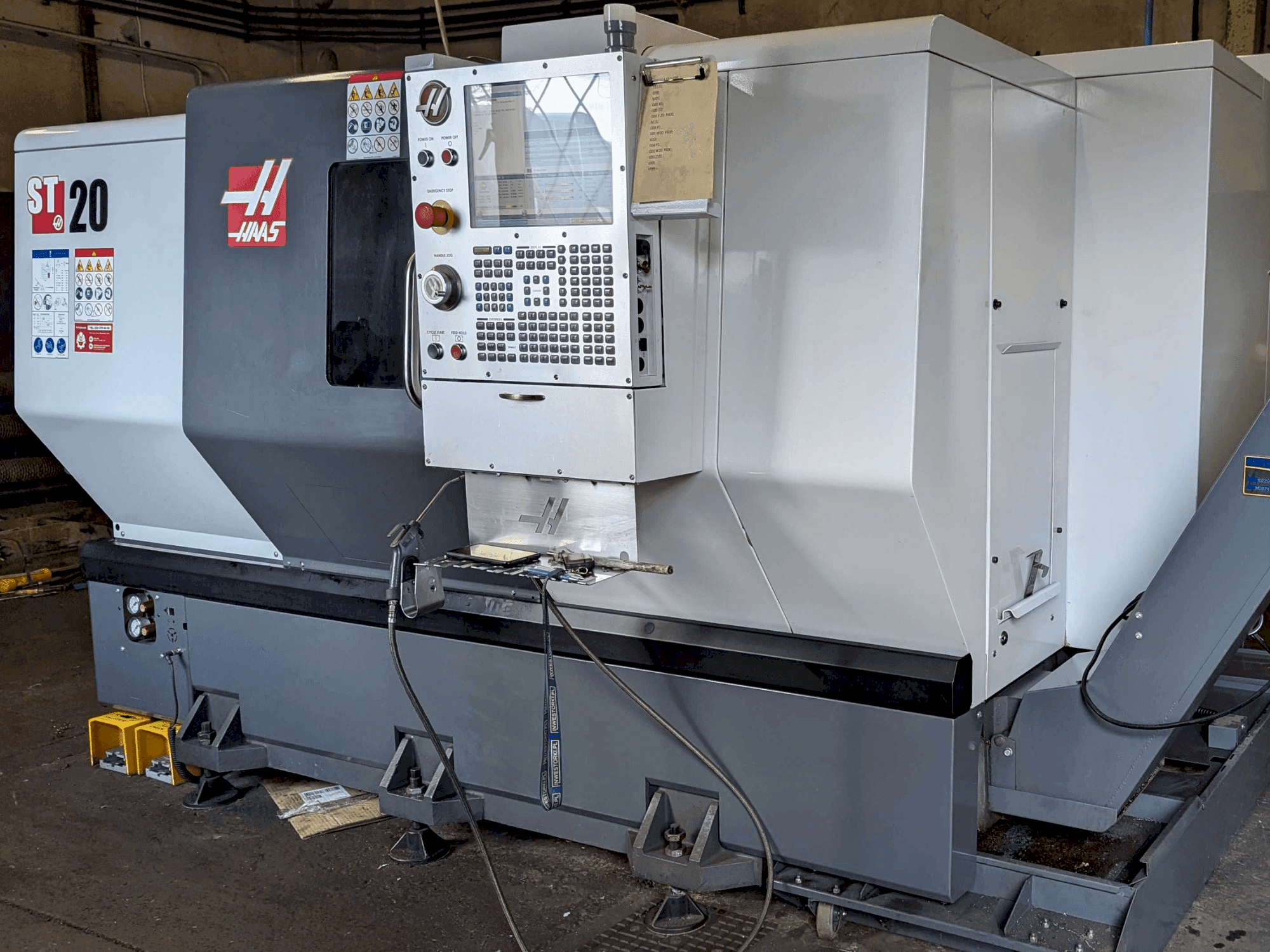

This HAAS ST-20 horizontal turning machine was manufactured in 2018. It features a robust 14.9 kW spindle, capable of speeds up to 4000 rpm, and a 12-position VDI40 turret. The machine includes a 15" LCD monitor, electronic handwheel, and remote monitoring via HaasConnect. With a swing over bed of 806 mm and rapid traverse speeds of 24 m/min, it's a reliable choice for precision machining. Contact us for further details regarding this horizontal turning machine.

Overview

brand: HAAS
year: 2018
MODEL: ST-20
production hours: 1183
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: HAAS

Technical Information - HAAS ST-20

Control Unit

Brand: HAAS
Model: NGC version, Fanuc compatible

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN
Spindle motor power: 14.9 kW
Spindle bore: 51 mm
Tool taper: MT4
Number of axis: 2

Movement

X-AXIS Movement: 263 mm
X-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 533 mm
Z-AXIS Rapid traverse: 24 m/min

Workpiece

Workpiece drm over bed: 806 mm
Workpiece drm over support: 527 mm

Additional equipment

- Tool Turret: VDI40 type, 12 positions, DIN69880.
- 3-Jaw Chuck Diameter: 210 mm.
- Turning Diameter over Cross Slide: 527 mm.
- Swing Over Tailstock: 584 mm.
- Turret Indexing Time: 1 second.
- Tailstock Quill Travel (Programmable): 533 mm.
- Tailstock Quill Force: 1.33-6.66 kN.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Memory capacity: 1 gb
- - Network card: included
- - Early power failure detection module: included
- - Haasconnect: remote machine status monitoring
- - Lcd monitor: 15" with usb port
- - Electronic handwheel: included
- - Visual part programming system (vps): included.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
