➤ Used HAAS ST-10 For Sale | gindumac.com

Show in original language

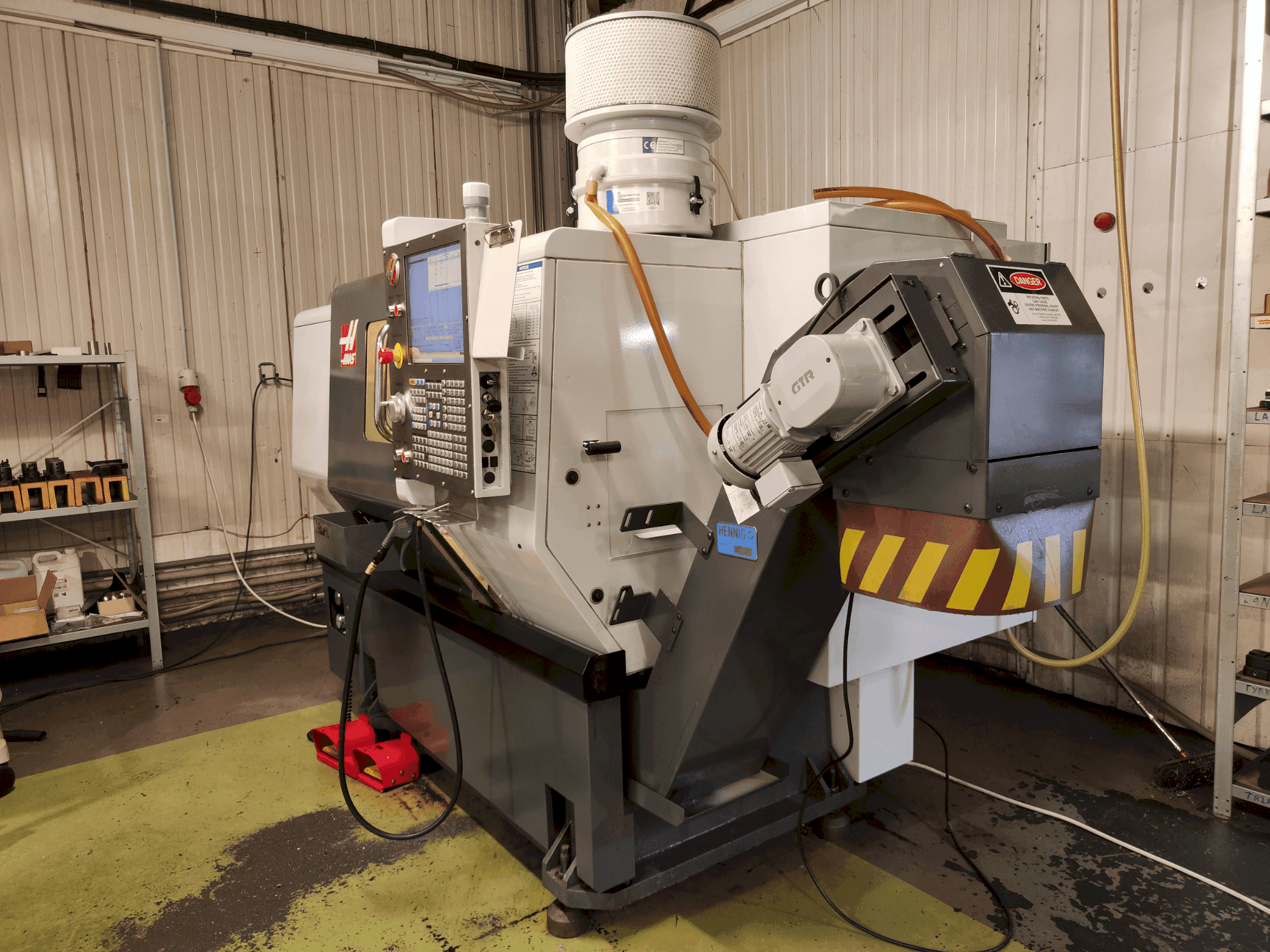

This HAAS ST-10 was manufactured in 2012. A robust horizontal turning machine from the USA, it features a maximum cutting diameter of 356 mm and length of 356 mm. With a spindle speed up to 6000 rpm and a 12-tool turret, it's ideal for efficient turning operations. Consider the opportunity to buy this HAAS ST-10 horizontal turning machine. Contact us for more information.

Overview

brand: HAAS
year: 2012
MODEL: ST-10
application type: Turning
Location: Latvia
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-10

General Data

Machine weight: 2268 kg

Control Unit

Brand: HAAS
Model: HAAS CNC

Main drive

Spindle speed range: 6000 1/MIN
Spindle bore: 58.7 mm
Number of axis: 2

Movement

X-AXIS Movement: 200.2 mm
X-AXIS Rapid traverse: 30.5 m/min
Z-AXIS Movement: 356 mm
Z-AXIS Rapid traverse: 30.5 m/min

Turret

Tool taper: VDI 40

Tools

Number of index: 12

Additional Information

Swing diameter over front apron: 641 mm
Swing diameter over cross slide: 413 mm
Swing diameter over tailstock: 597 mm
Chuck size: 165 mm
Maximum cutting diameter: 356 mm
Maximum cutting length: 356 mm
Bar capacity: 44 mm
Maximum thrust X-axis: 14,679 N
Maximum thrust Z-axis: 14,679 N
Spindle maximum rating: 11.2 kW
Spindle maximum speed: 6000 rpm
Spindle maximum torque: 102 Nm @ 1300 rpm
Spindle nose: A2-5
Tool size (OD turning): 19.1 mm
Turret indexing time (one tool): 0.5 s
Boring bar rear clearance (from turret face): 104.8 mm
Air required: 113 L/min @ 6.9 bar
Coolant capacity: 114 L
Power supply: 200–250 VAC / 50 A / 3Ø
Tailstock: For turning center ST-10

Additional equipment

Chip conveyor: Belt-type, for turning center ST-10

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
