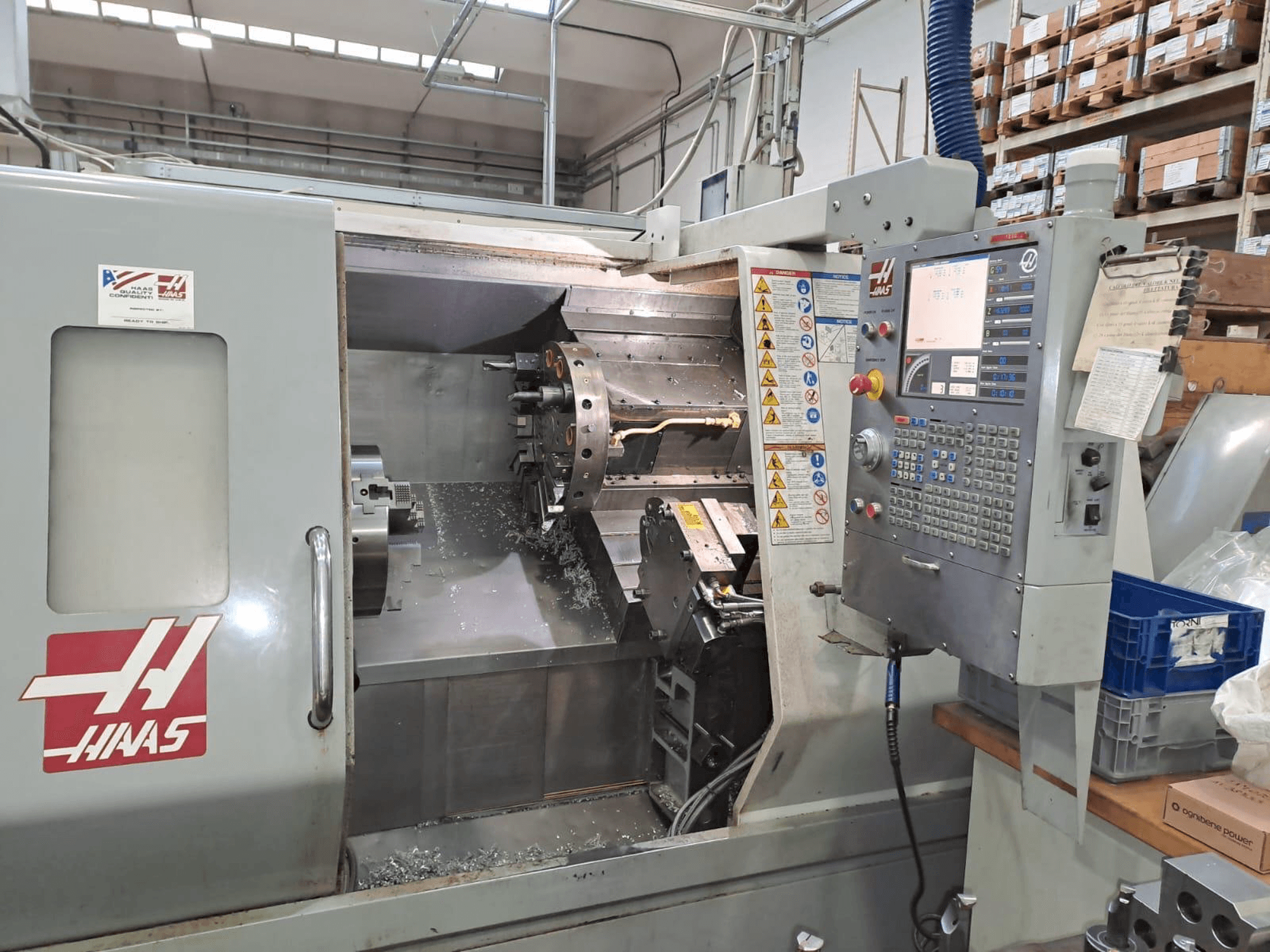

This HAAS SL30 Lathe was manufactured in the year 2007 in the United States. It is equipped with a HAAS control unit. The machine has a spindle speed of 3400 rpm.

Overview

brand: HAAS
year: 2007
MODEL: SL30
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS SL30

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 3400 1/MIN
Spindle motor power: 22.4 KW
Number of axis: 2

Movement

X-AXIS Movement: 287 mm
Z-AXIS Movement: 863.6 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar passage : 88. 9 mm
- - Turret mount: vdi 40
- - Turret: 12 positions
- - Distance between points: 990. 6 mm
- - Max turning diameter: 431. 8 mm
- - Max turning length: 863. 3 mm
- - Chuck attachment: a2-6

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
