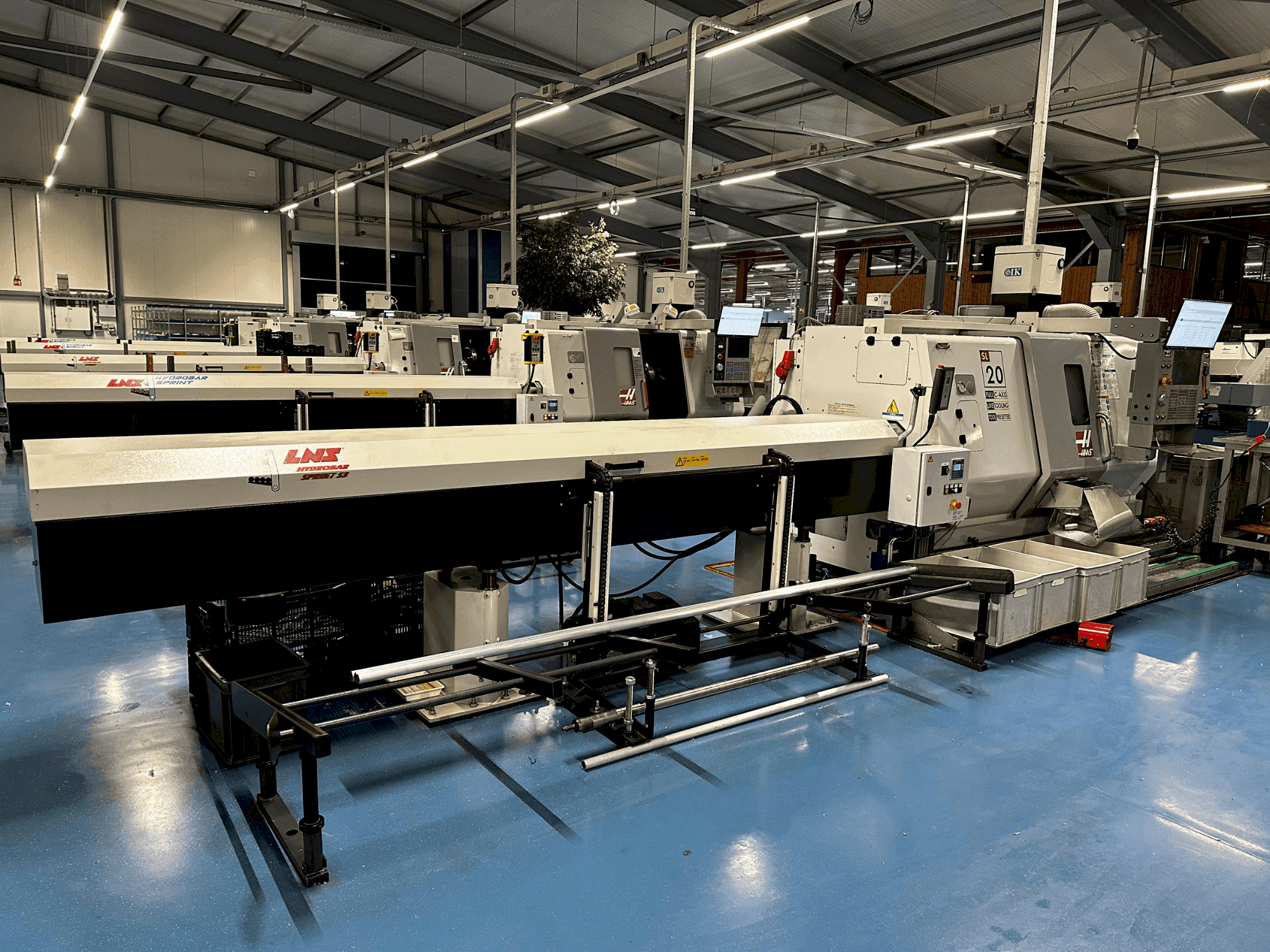

HAAS SL-20HE

Photo Gallery

HAAS - SL-20HENL-TUR-HAA-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Lathe HAAS SL-20HE - 2007 - for sale | gindumac.com

Show in original language

This 5-Axis lathe machine was manufactured in 2007 and features a robust build with a 15 kW main engine and 10 position tool turret. With a turning length of 508 mm and a chuck size of 210 mm, it offers precise machining capabilities. Equipped with a chip conveyor and rigid tapping, it ensures efficient operations. The HAAS SL-20HE provides reliable performance with its automatic lubrication system and load monitor. Don't miss out on the opportunity to buy this HAAS SL-20HE lathe. Contact us for further information.

Overview

brand: HAAS
year: 2007
MODEL: SL-20HE
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine

Technical Information - HAAS SL-20HE

General Data

Measurements width: 1880 mm
Measurements depth: 3213 mm
Measurements height: 1778 mm
Machine weight: 4082 kg

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 15 kW
Number of axis: 5

Movement

X-AXIS Movement: 215 mm
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 30 m/min

Turret

Number of turrets: 1

Tools

Number of stations: 10

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

1 MB memory
Transformer
USB port in control
Measuring system for chisel setting
Macros to be programmed
'Visual quick code' programming system
Rigid tapping

Machine Benefits

Technical Machine Benefits

Cooling tank capacity of 151 litres
Air connection of 7 bar, 113 l/min
Connected load of 14 kva (increased passage (b) = 28 kva
Turning length 508 mm
Maximum turning diameter 262 mm
210 mm chuck
Brushless motors
10 position tool turret // 5 free m functions
Automatic lubrication system
Load monitor

Extra Information

1 year parts warranty

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
