HAAS SL-20 TCF

Photo Gallery

HAAS - SL-20 TCFEE-TUR-HAA-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

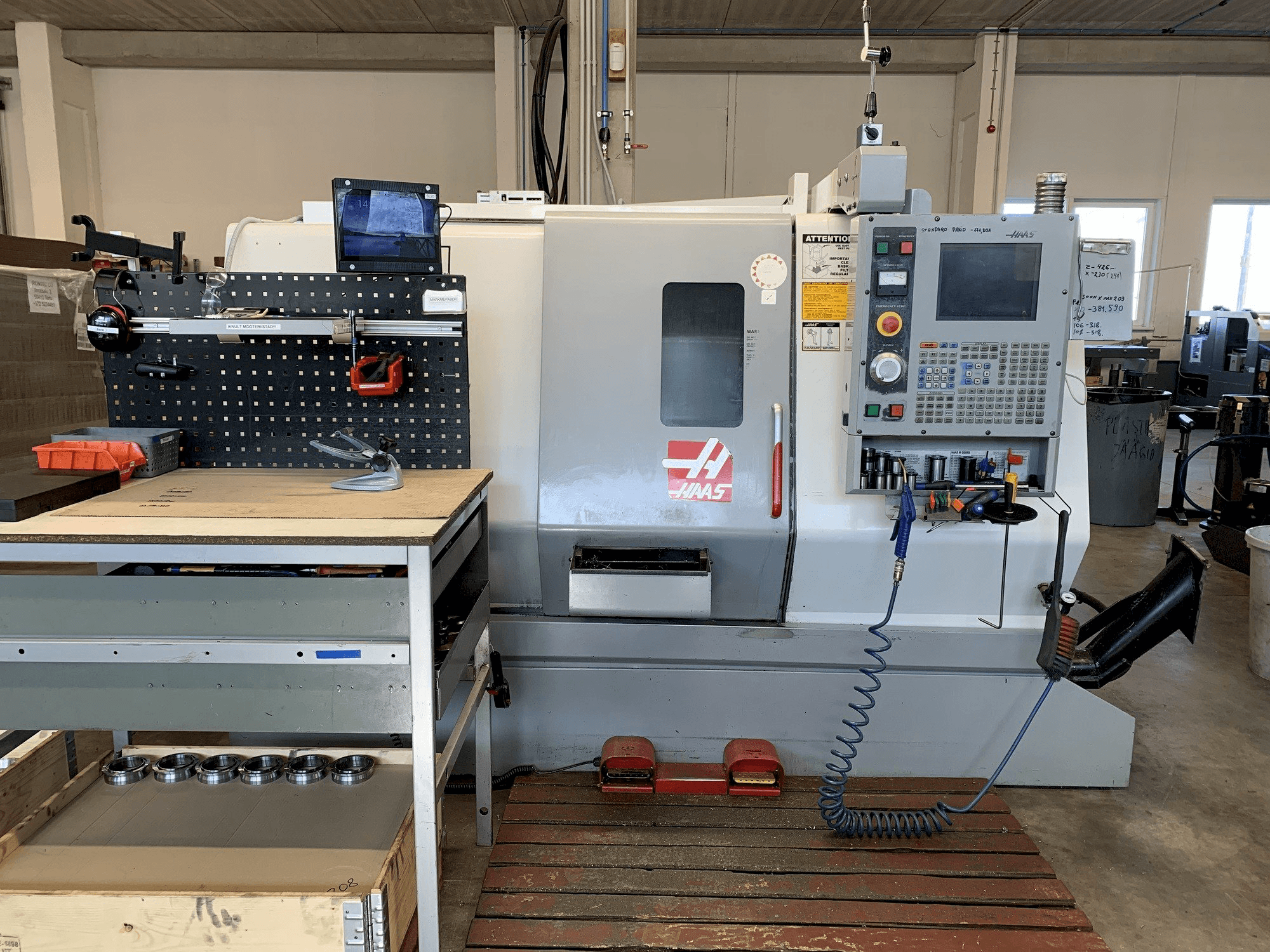

HAAS SL-20 TCF Lathe

Show in original language

This HAAS SL-20 TCF Lathe was made in the year 2003 in the United States and has 23000 hours. It is equipped with a Haas control unit. The machine has a spindle speed of 4000 rpm.

Overview

brand: HAAS
year: 2003
MODEL: SL-20 TCF
production hours: 23000
application type: Turning
Location: Estonia
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS SL-20 TCF

Control Unit

Control Brand: HAAS

Dimensions

Machine Weight: 4000 kg

Movement

X-axis Travel: 230 mm

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Coolant tank 150l
Hydraulic oil changed every year
Machine maintenance work has been performed only by haas technicians
Installed more powerful coolant pump, max 6bar (better cooling)

Technical Machine Benefits

X and z axis (x max turning 230mm and z max 470mm)
Hydraulic centrifuge mt4
Turret 10 slots
Chuck 210mm 8" (chuck 3 years old)
Spindle hole max 52mm, revolutions max 4000, 15kw
Tool gauge probe
Macro programming
Possibility to make a program on the machine. Very simple
Detail catcher and box
Usb slot - program installation via usb

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
