HAAS - EC400IL-MIL-HAA-2012-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

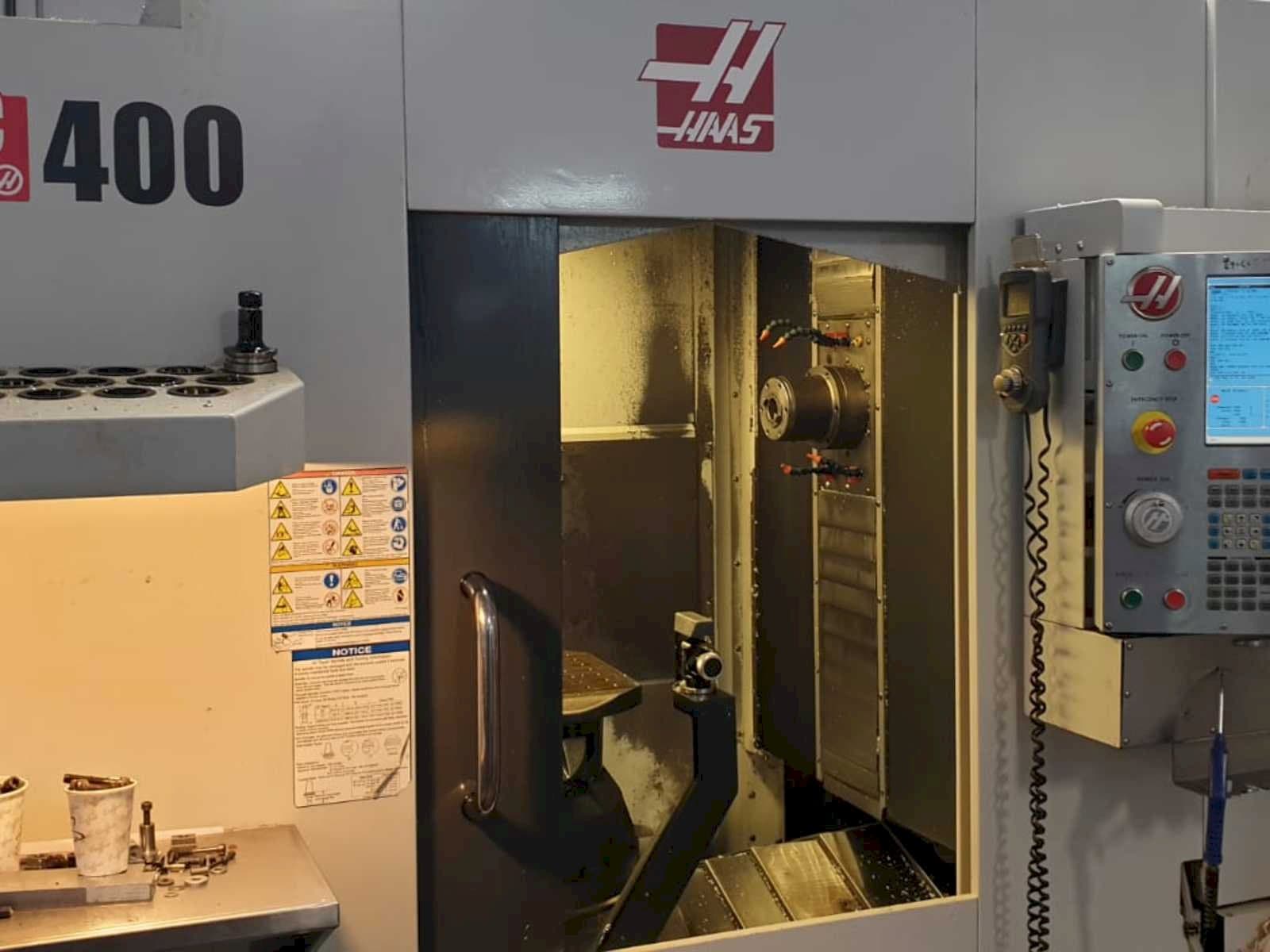

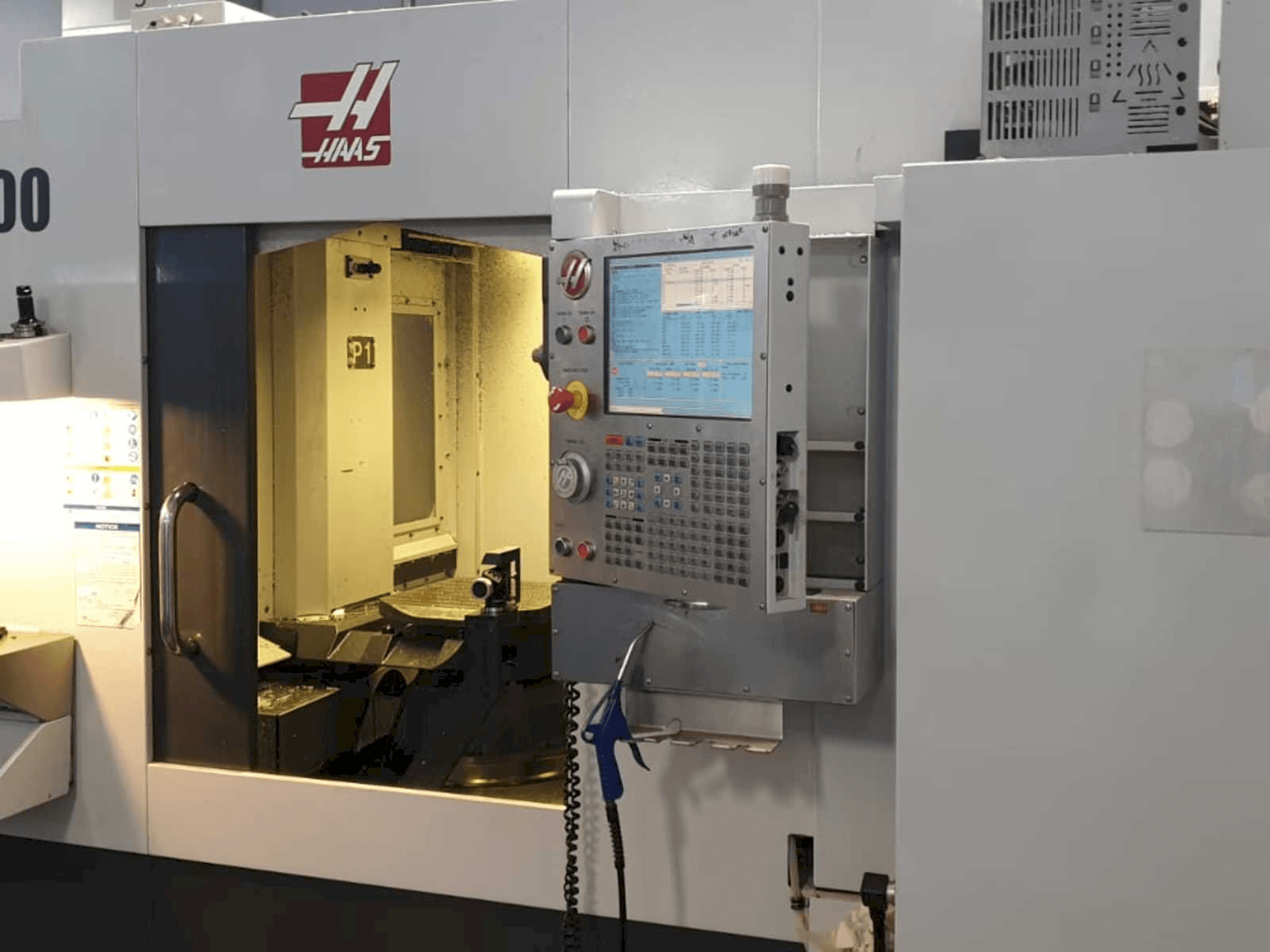

This HAAS EC400 Horizontal Machining center was manufactured in 2012. The 4 axis machine operates through a Haas CNC control unit. It has a spindle speed up to 12000 rpm. The machine comes with full ATC 70 Tools.

Overview

  • brand: HAAS
  • year: 2012
  • MODEL: EC400
  • application type: Milling
  • Location: Israel
  • machine type: Horizontal Machining Centre
  • control unit brand: HAAS

Technical Information - HAAS EC400

Control Unit

  • Control Brand: HAAS
  • Control Model: CNC

Dimensions

  • Machine Weight: 9525 kg

Movement

  • Number of Axes: 4
  • X-axis Travel: 508 mm
  • Y-axis Travel: 508 mm
  • Z-axis Travel: 508 mm

Technical Specification

  • Spindle Speed: 12000 RPM

Additional Information

Additional equipment

  • Belt Type Chip Conveyor
  • Intuitive Probing, Renishaw
  • Tool Tray
  • Lifting kit
  • Rigid tapping
  • Remote Jog Handle
  • Power Fault Detection Module
  • Programmable Coolant Nozzle
  • Disk & Hard Drive
  • Coordinate Rotation & Scaling

Machine Benefits

Qualitative Machine Benefits

  • Max. Cutting 500 ipm
  • Tool changer: capacity 70+1
  • Tool type/taper cat 40
  • Coolant capacity 80 gal
  • Power required (min) 195-260 vac 3-phase
  • 30 hp main drive motor
  • 70 position automatic tool changer
  • Rigid tapping
  • Coolant thru spindle, 300 psi

Technical Machine Benefits

  • Pallet size: 400 mm x 400 mm
  • Change time 8 sec
  • Optional full 4th axis
  • Capacity 660 lbs
  • Indexing accuracy +/-15 arc-sec
  • 90 deg. Rotation time 3 sec.
  • Drive system inline direct drive
  • Max. Torque 90ft-lb @ 2000 rpm
  • Max. Rating 30 hp
  • Rapids 1000 ipm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
