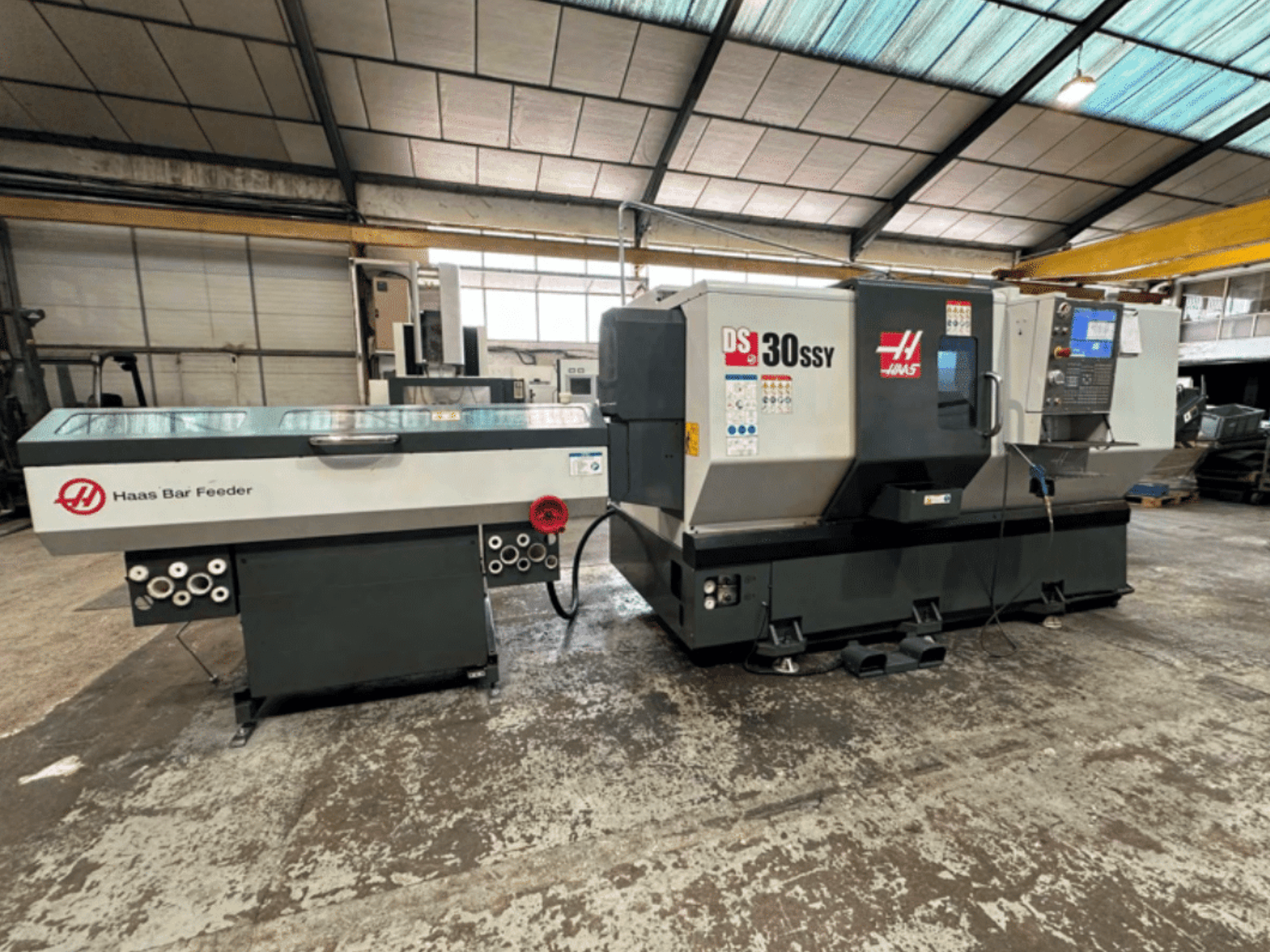

Haas DS-30SSY CNC lathe with Haas Bar Feeder, side view showcasing control panel and feed mechanism in a workshop setting.
Haas DS-30SSY CNC lathe with Haas Bar Feeder, side view showcasing control panel and feed mechanism in a workshop setting.

HAAS - DS-30SSYES-TUR-HAA-2017-00001

Rs. 7,759,225
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis HAAS DS-30SSY was manufactured in 2017. It features a dual spindle system with vector-driven main and secondary spindles, both offering 4,800 rpm. The turret accommodates 24 hybrid stations for versatile tooling options. It includes a high-pressure coolant system, belt-type chip conveyor, and an advanced control system with a 15" color monitor. If you are looking to get high-quality turning capabilities consider the HAAS DS-30SSY machine we have for sale. Contact us for more information.

Overview

  • brand: HAAS
  • year: 2017
  • MODEL: DS-30SSY
  • application type: Turning
  • Location: Spain
  • machine type: Horizontal Turning Machine

Technical Information - HAAS DS-30SSY

Movement

  • Number of Axes: 3
  • Y-axis Travel: 50.8 mm

Technical Specification

  • Spindle Power: 22.4 kW
  • Spindle Speed: 4800 RPM

Additional Information

  • Maximum workpiece capacity: 406 × 584 mm

  • Swing over bed: 806 mm

  • Y-axis travel: ±50.8 mm

  • Main spindle: vector-driven, A2-6 taper, 210 mm chuck

  • Secondary spindle: vector-driven, 20 hp (14.9 kW), 4,800 rpm, A2-5 taper, 210 mm chuck

  • Turret: hybrid 24 stations (12 BOT + 12 VDI), high-torque live tools with C-axis

  • Control: 15" color monitor, memory protection key, spindle orientation, USB port, rigid tapping

  • Connectivity: Ethernet interface

Additional equipment

  • Belt-type chip conveyor

  • High-pressure coolant, 300 psi (21 bar)

  • Automatic air blow

  • Automatic tool measurement

  • Haas bar feeder with installation kit

  • Tooling kit, including rotary axial and radial tool holders

  • Export packaging

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
