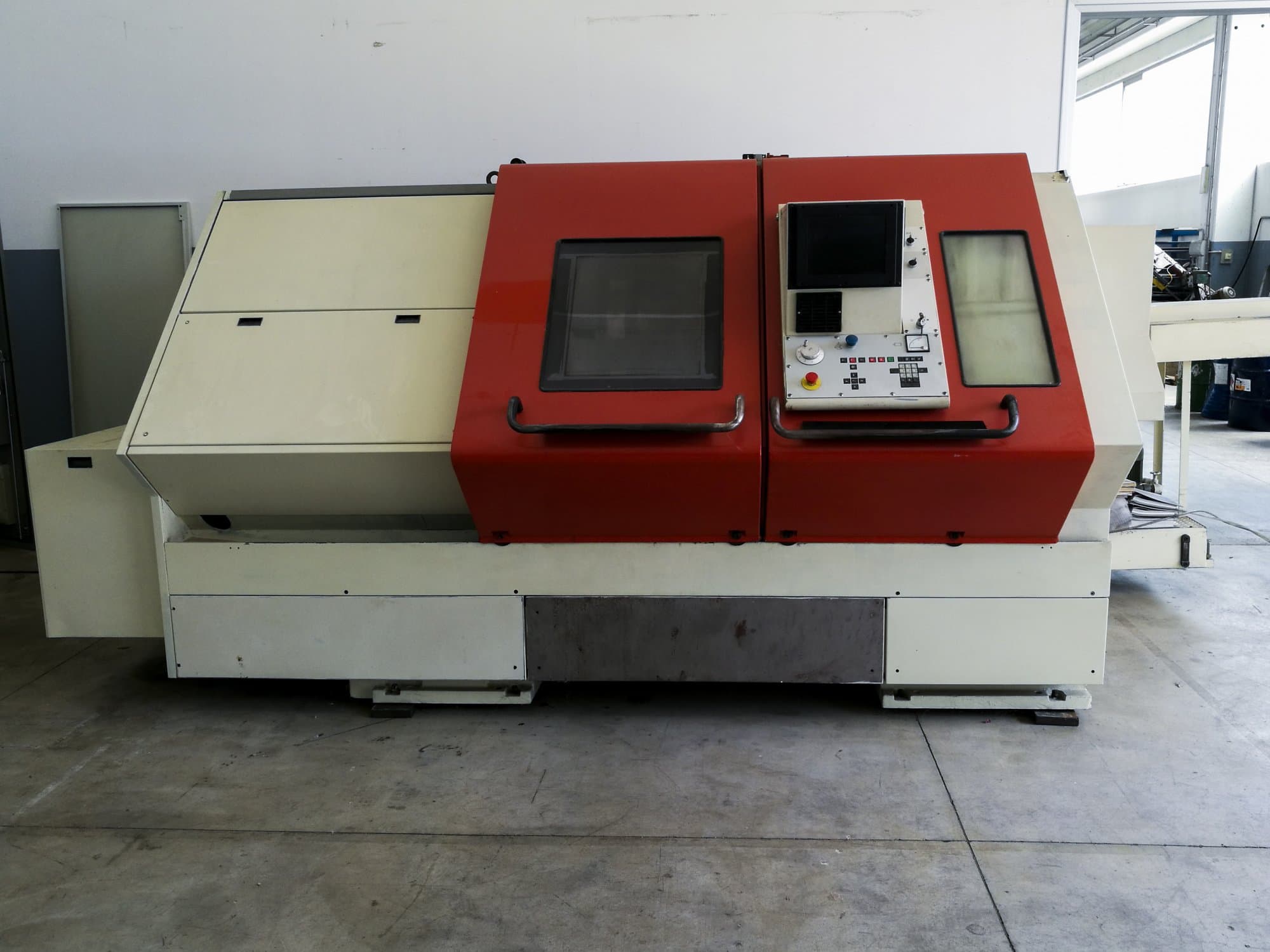

Front view of Gildemeister NEF CT60 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister NEF CT60

Photo Gallery

Gildemeister - NEF CT60IT-TUR-GIL-1992-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister NEF CT60 Lathe

Show in original language

This NEF CT60 Lathe, fabricated by company Gildemeister, counts 35583 working hours since its manufacture in 1992. The machine is operated through a SIEMENS Control unit and will be delivered with an additional 9x tool holder.

Overview

brand: Gildemeister
year: 1992
MODEL: NEF CT60
production hours: 35583
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - Gildemeister NEF CT60

General Data

Measurements width: 5400 mm
Measurements depth: 2300 mm
Measurements height: 2000 mm
Machine weight: 7500 kg

Control Unit

Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 16-3150 1/min
Spindle motor power: 30 kW
Spindle bore: 107 mm

Movement

X-AXIS Movement: 380 mm
X-AXIS Feed Force: 800 N
X-AXIS Rapid traverse: 10 m/min
Z-AXIS Movement: 1100 mm
Z-AXIS Feed Force: 1300 N
Z-AXIS Rapid traverse: 10 m/min

Workpiece

Workpiece drm over bed: 600 mm
Workpiece drm over support: 360 mm

Turret

Number of turrets: 1
Number of tool slots: 12
Tool taper: VDI 40

Tail Stock

Pinol diameter: 100 mm
Pinol force: 1200 N
Pinol way: 180 mm
Pinol tool taper: Mk 5

Media

Main electronic connection: 380 V / 5 P / 50 Hz
Chip conveyor: Yes

Additional Information

Additional equipment

9x Tool holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
