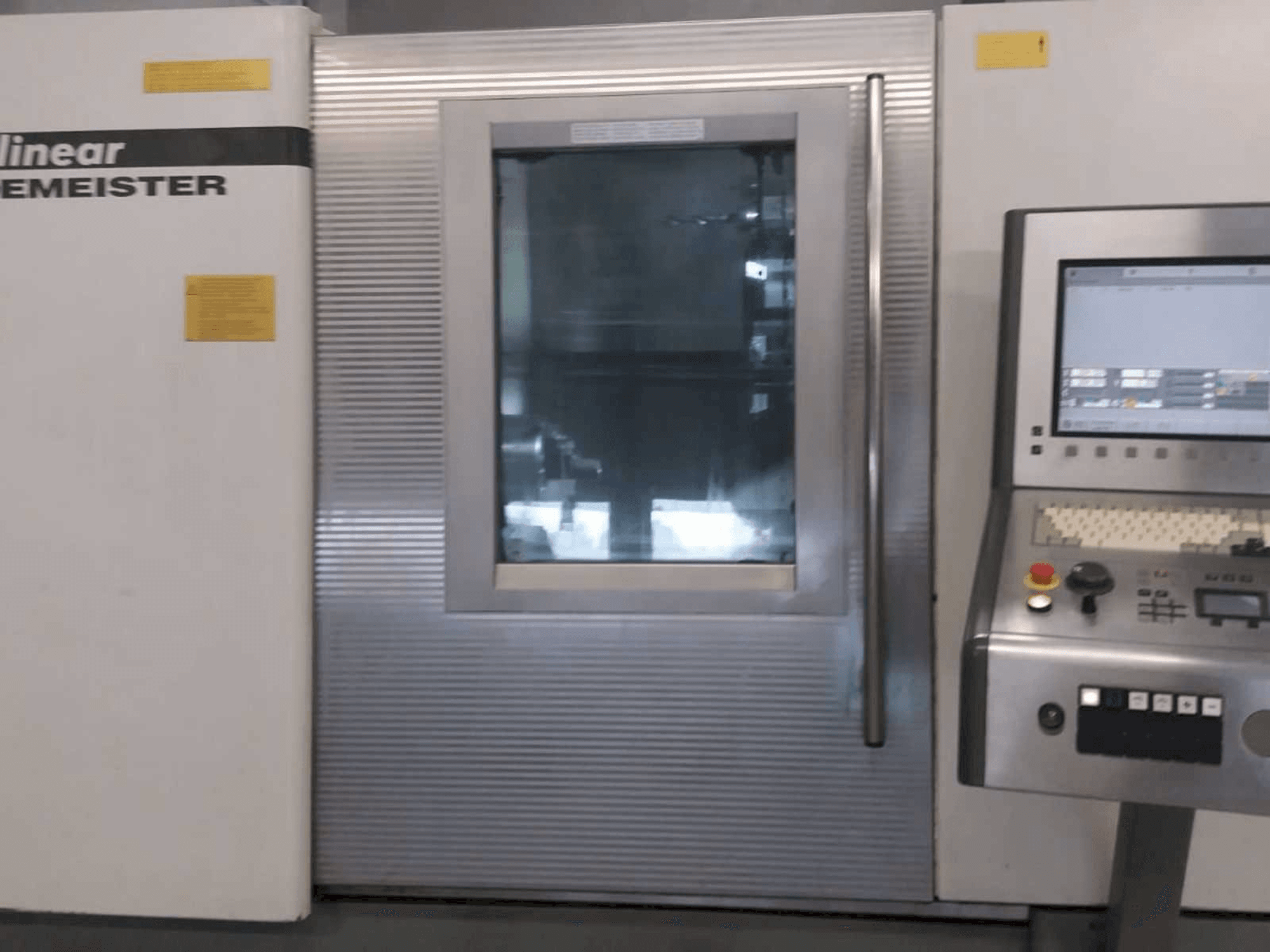

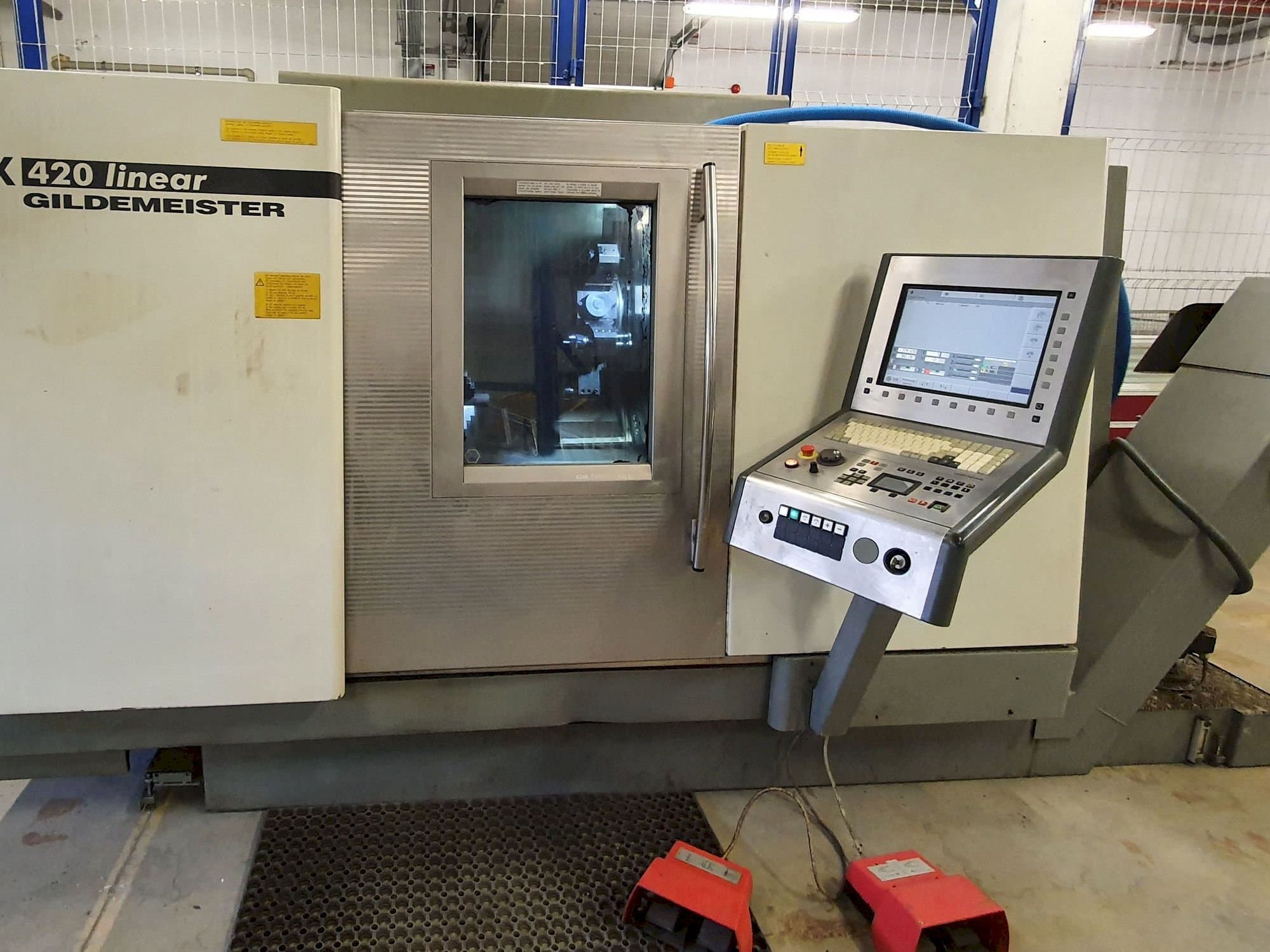

Front view of Gildemeister CTX 420 linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 420 linear

Photo Gallery

Gildemeister - CTX 420 linearPL-TUR-GIL-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister CTX 420 Turning

Show in original language

This Gildemeister CTX 420 linear Lathe was manufactured in 2003. This 4 axis machine has been working for 81891 hours, of which 22974 are spindle working hours. It operates through a Heidenhain DataPilot 4290V7 turnplus control unit. This machine can perform with a spindle speed up to 5000 rpm.

Overview

brand: Gildemeister
year: 2003
MODEL: CTX 420 linear
production hours: 81891
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 420 linear

General Data

Measurements width: 4350 mm
Measurements depth: 2460 mm
Measurements height: 2080 mm
Machine weight: 6000 kg

Control Unit

Model: DataPilot 4290V7 turnplus
Brand: HEIDENHAIN

Controller

Brand: SINUMERIK
Model: 840D

Main drive

Spindle speed range: 25-5000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 40 mm
Z-AXIS Movement: 635 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Tool measurement sensor
X hydraulic counterweight
Scraper chip feeder
Air conditioning of electrical cabinets
Spindle air conditioning
Tool head air conditioning
Original documentation in english
German, and programmer's manual
Electricity: 400v/50hz
Total power requirement: 50kva

Technical Machine Benefits

Turret head 12 pos. / vdi 40 din 69880 (all driven)
Turning diameter: 324 mm
Turning length: 600 mm
Bar diameter: 65 mm
Swing diameter: 680 mm
Driven tools 12 pos. 4. 500 u/mi
Taper in tailstock-quill mk 5
Tailstock travel: 580 mm
205 mm hydraulic chuck
Automatic programmable tailstock, rapid traverse 6 m / min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
