Gildemeister CTX 310
Gildemeister - CTX 310
2003
Rs. 2,236,050
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used GILDEMEISTER CTX 310 - 2003 - Lathe For sale

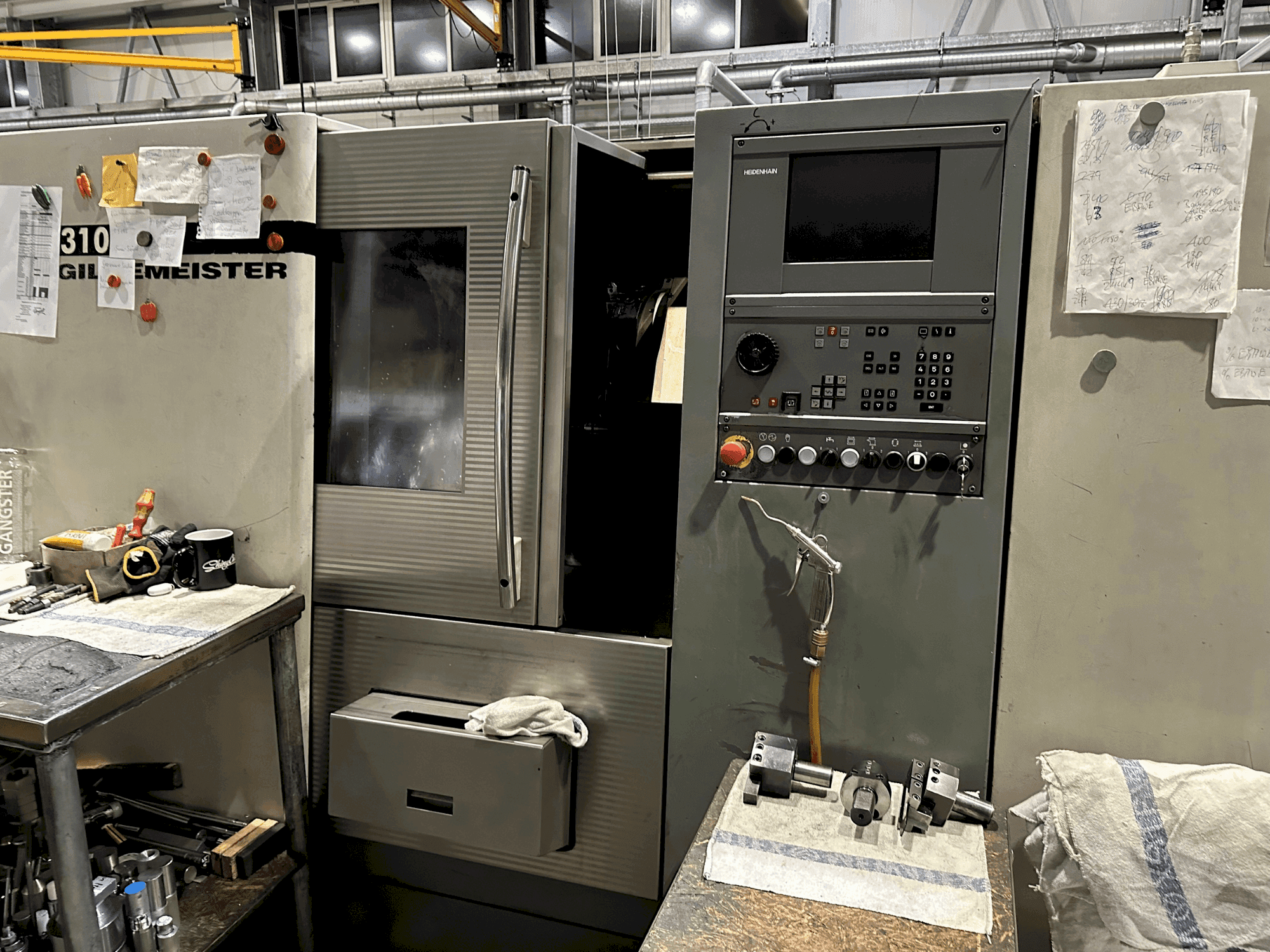

This 3-axis GILDEMEISTER CTX 310 lathe was manufactured in 2003. It features a Heidenhain iT numerical control with DIN PLUS, TURN PLUS programming software, and a coolant lubricant pump. The lathe has a spindle bore of 68.5 mm and offers a speed range of up to 5000 rpm. It also includes 12 tool stations with a maximum torque of 86 Nm. The machine dimensions, including the chip conveyor, are 4173 x 1594 x 1730 mm. Reach out for further details regarding this horizontal lathe.
Overview
- brand: Gildemeister
- year: 2003
- MODEL: CTX 310
- production hours: 31820
- application type: Turning
- Location: Germany
- machine type: Lathe
- availability: Immediately
- control unit brand: Heidenhain
- GINDUMAC ID: DE-TUR-GIL-2003-00002
Technical Information
General Data
- Measurements width: 1594 mm
- Measurements depth: 4173 mm
- Measurements height: 1730 mm
- Machine weight: 3800 kg
Control Unit
- Brand: Heidenhain
- Model: iT
Main drive
- Spindle speed range: 20-5000 1/MIN
- Spindle bore: 68.5 mm
- Number of axis: 3
Movement
- X-AXIS Movement: 160 mm
- X-AXIS Rapid traverse: 20 m/min
- Z-AXIS Movement: 450 mm
- Z-AXIS Rapid traverse: 30 m/min
Workpiece
- Workpiece drm over bed: 330 mm
- Workpiece drm over support: 260 mm
Tools
- Number of index: 12
- Number of stations: 6
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional equipment
- - Coolant lubricant pump type Grundfoss 12 bar
- - Hollow clamping device diameter 52mm
- - Chuck diameter: 170/210mm
Additional Information
- Technical Machine Benefits:
- - Max. Workpiece diameter: 330 mm
- - Number of driven tool stations: 6, max. Speed: 4200 min-1
- - Advanced control unit (heidenhain it) with din plus turn plus programming software for precision and ease of use.
- - Coolant lubricant pump type grundfoss 12 bar
- - Tailstock stroke: 400 mm
- - Hydraulics capacity: approx. 50l, pressure: 40 bar
- Qualitative Machine Benefits:
- - Robust build and high torque (86nm) ensure reliable machining and longevity.
- - High precision and accuracy in machining with a structured tool carrier and c-axis capabilities.
- - Quill holder: flat flange
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
