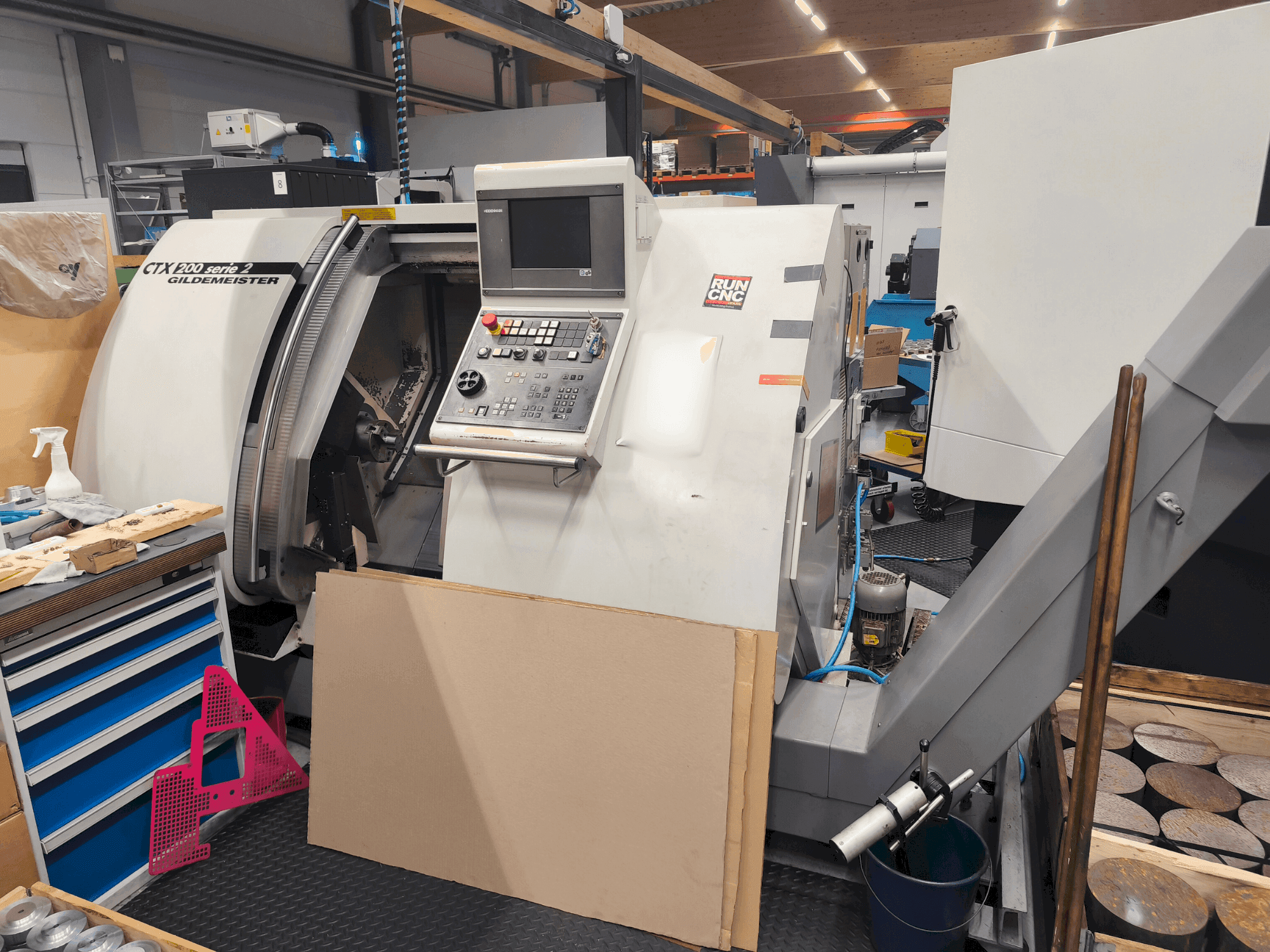

Front view of Gildemeister CTX 200 Serie 2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 200 Serie 2

Photo Gallery

Gildemeister - CTX 200 Serie 2DE-TUR-GIL-2001-00005

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister CTX 200 Serie 2 | Multi-Spindle Lathe

Show in original language

This Gildemeister CTX 200 Serie 2 was manufactured in 2001. A horizontal turning machine, it's ideal for those looking to enhance their machining capabilities. Contact us for more information.

Overview

brand: Gildemeister
year: 2001
MODEL: CTX 200 Serie 2
production hours: 28890
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Gildemeister CTX 200 Serie 2

General Data

Measurements width: 1651 MM
Measurements depth: 2800 MM
Measurements height: 1777 MM
Machine weight: 2900 KG

Main drive

Spindle speed range: 25-5000 1/MIN

Movement

X-AXIS Feed Force: 2 kN
X-AXIS Rapid traverse: 20 m/min
Z-AXIS Feed Force: 3 kN
Z-AXIS Rapid traverse: 30 m/min

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Coolant pump
Tailstock
Includes 3 jaw chucks and various holders for turning tools

Machine Benefits

Qualitative Machine Benefits

Ball screw x/z: 25x10 mm
Universal disc-type turret (automatic indexing with directional logic and fixed tool pull)
Tool holders: din 69880 20mm
Max. Driven tools: 12
Max. Clamping diameter of the driven tools: 13 mm
Tailstock diameter in the front area: 80 mm
Tailstock travel: 350 mm
Tailstock reception: mk 3
Tailstock force min. /max. : 3 kn
Has no driven tools

Technical Machine Benefits

Circumferential Ø over bed guide cover: 440 mm
Circumferential Ø over face guide cover: 210 mm
Face path: 160 mm
Longitudinal travel: 350 mm
Spindle head Ø: 120 mm
Spindle head Ø in front bearing: 85 mm
Spindle bore: 56 mm
Chuck Ø: 140 mm
Drive power 100% ed: 9 kw
Max. Torque: 84 nm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
