+GF+ AgieCharmilles MIKRON VCE 1400 PRO

Photo Gallery

+GF+ - AgieCharmilles MIKRON VCE 1400 PROSI-MIL-GFX-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used +GF+ AgieCharmilles Mikron VCE 1400 Pro Machining

Show in original language

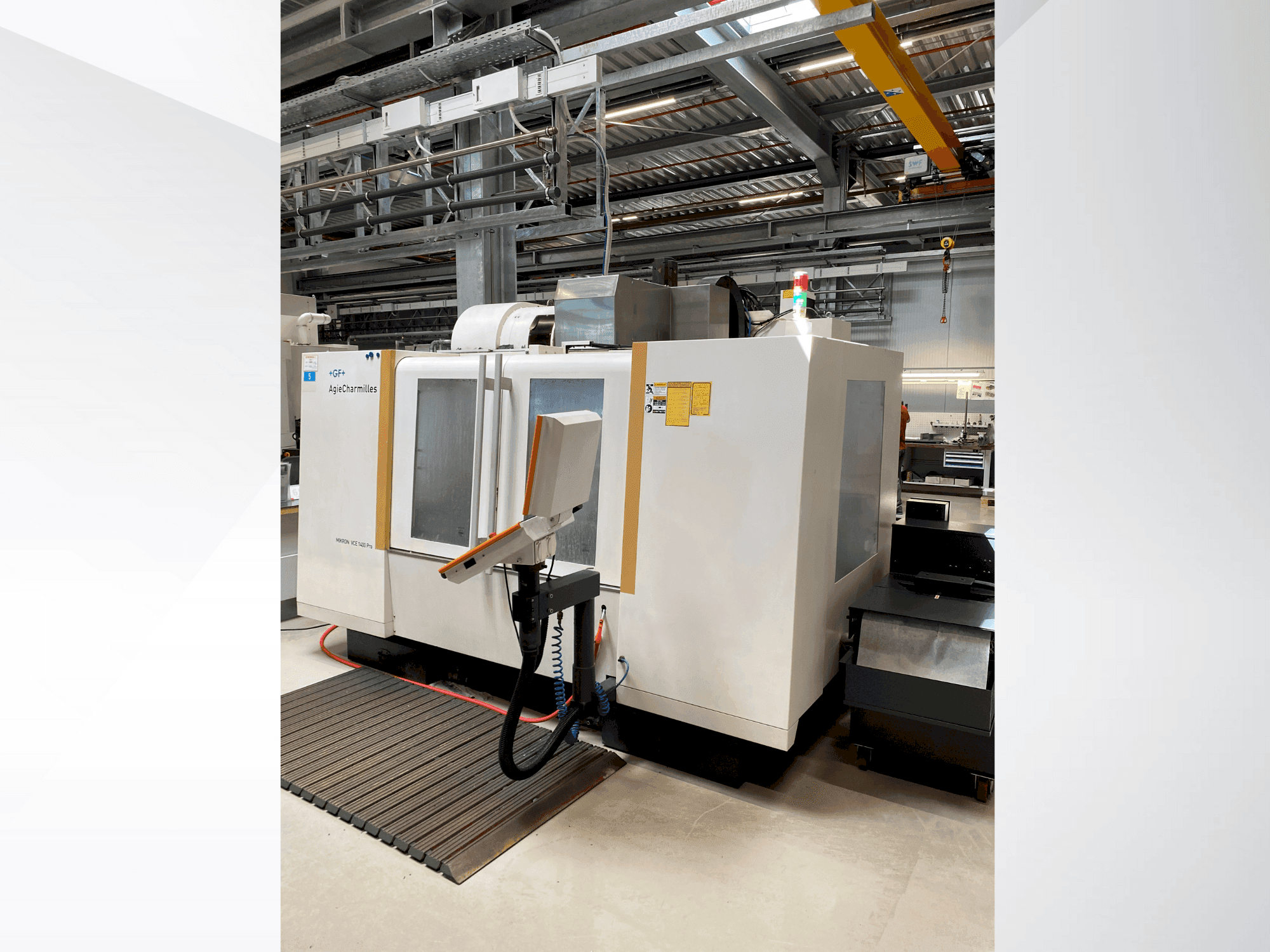

This +GF+ AgieCharmilles Mikron VCE 1400 Pro vertical machining centre was manufactured in 2012. It features a large travel range with dimensions X/Y/Z: 1400mm/650mm/675mm and a maximum table load of 1700 kg. Equipped with a 10,000 rpm spindle and a Heidenhein 530 control, this machine ensures precision and efficiency. Ideal for complex milling tasks, the +GF+ AgieCharmilles Mikron VCE 1400 Pro machine we have for sale is meticulously maintained. For more information about this vertical machining centre, please reach out to us.

Overview

brand: +GF+
year: 2012
MODEL: AgieCharmilles MIKRON VCE 1400 PRO
production hours: 14500
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - +GF+ AgieCharmilles MIKRON VCE 1400 PRO

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC530

Dimensions

Machine Depth: 3220 mm
Machine Height: 2790 mm
Machine Weight: 8700 kg
Table Length: 1400 mm
Table Load: 1700 kg
Table Width: 620 mm

Movement

X-axis Travel: 1400 mm
Y-axis Travel: 650 mm
Z-axis Travel: 675 mm

Technical Specification

Spindle Speed: 10000 RPM
Taper Size: ISO 40

Additional Information

Additional equipment

Band filter
Renishaw tool laser measurement
Through-spindle cooling
Wash down system

Machine Benefits

Technical Machine Benefits

Programming hours: 8500
Spindle hours: 4500

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
