GASPARINI Spark 20040

Photo Gallery

GASPARINI - Spark 20040DE-CUT-GAS-2008-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used GASPARINI Spark 20040 For Sale | gindumac.com

Show in original language

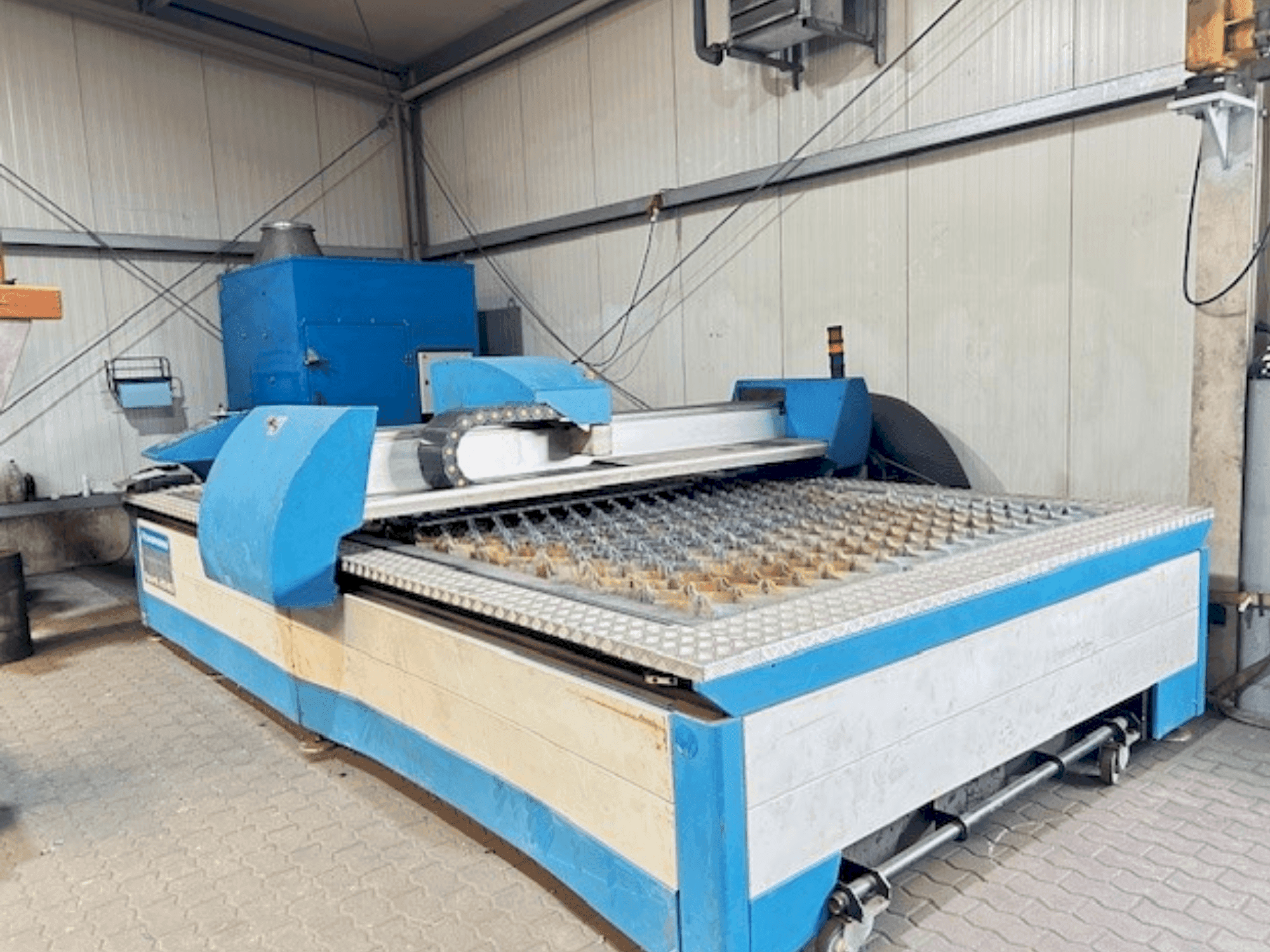

This GASPARINI Spark 20040 was manufactured in 2008. A robust plasma cutting machine, it features a substantial working area of 4000×2000 mm and can handle sheet metal up to 60 mm thick. With cutting speeds ranging from 0.1 to 30 m/min and a maximum positioning speed of 40 m/min, it's designed for efficiency. Consider the opportunity to buy this GASPARINI Spark 20040 plasma cutting machine. Contact us for more information about this machine.

Overview

brand: GASPARINI
year: 2008
MODEL: Spark 20040
application type: Cutting
Location: Germany
machine type: Plasma Cutting Machine

Additional Information

Machine Benefits

Technical Machine Benefits

Supply voltage: 220 v, 400 v, 440 v / frequency: 50-60 hz
Length x width (fully assembled): 4910 x 3150 mm/ machine height: 1581 mm / cutting surface height: 908 mm
Machine weight (without grid): 3300 kg / total machine weight: 3500 kg
Maximum sheet metal thickness: 60 mm / cutting speed: min: 0. 1 m/min, max: 30 m/min / max. Positioning speed (x-axis): 40 m/min / max. Acceleration (x-axis): 2 m/s²
Maximum power consumption: 8 kw (control panel), 19. 5 kw (plasma generator), 8 kw (fume extraction system)
Coolant temperature: 10−40°c / minimum coolant flow: 6 l/min / coolant pressure: 3. 5−4. 5 bar
Output current: 20−130 a / maximum output power: 19. 5 kw
Room requirement: 1400×600×300 mm
Cross-section of supply lines: 4mm² / supply cable cross-section: 10 mm² / fuse: 32 a slow-blow

Extra Information

without suction

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
