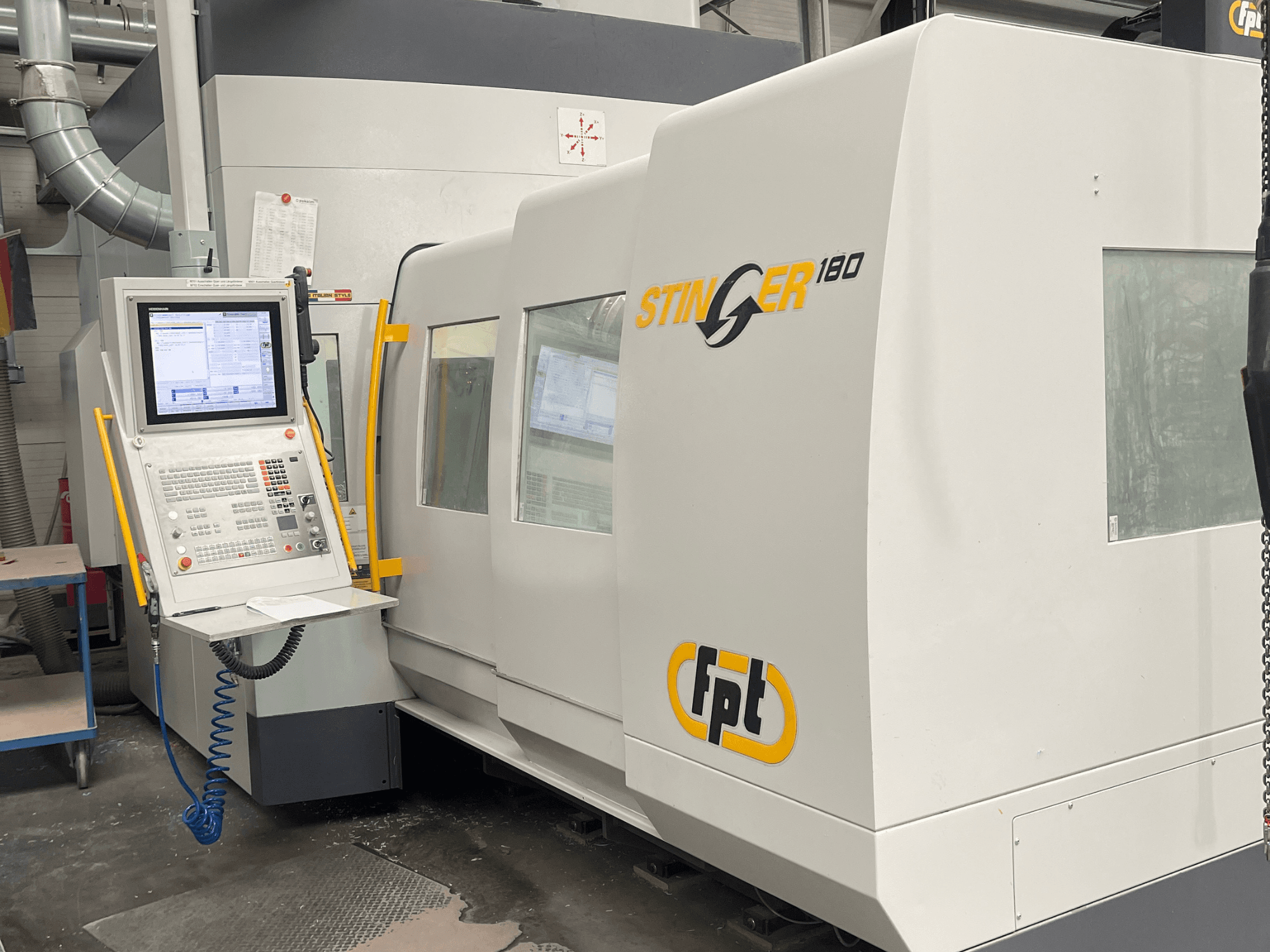

FPT STINGER 180

Photo Gallery

Rs. 44,621,927

gindumac price

(Ex works)

Get an official quote

FPT - STINGER 180DE-MIL-FPT-2021-00001

Name: FPT STINGER 180
Brand: FPT
SKU: DE-MIL-FPT-2021-00001
Price: 44621927 INR
Availability: InStock

Rs. 44,621,927

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used FPT STINGER 180 For Sale | gindumac.com

Show in original language

This 3-axis FPT STINGER 180 vertical machining centre was manufactured in 2021. It features an impressive X-axis travel of 1750 mm, Y-axis travel of 1400 mm, and Z-axis travel of 800 mm. The machine is equipped with a powerful spindle speed of up to 18,000 rpm and a tool changer capable of holding 60 tools. If you are looking to get high-quality machining capabilities, consider the FPT STINGER 180 machine we have for sale. Contact us for further details.

Overview

brand: FPT
year: 2021
MODEL: STINGER 180
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
Available from: 01/10/2026
control unit brand: HEIDENHAIN

Technical Information - FPT STINGER 180

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 640

Movement

Number of Axes: 3
X-axis Travel: 1750 mm
Y-axis Travel: 1400 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Power: 33 kW
Spindle Speed: 18000 RPM

Additional Information

- Max. Interpolating Axis Speed: 35 m/min

- Installed Power: 65 kVA

- Required Current: 93 A

- Pneumatic System Air Flow: 400 Nl/min

- Pneumatic Operating Pressure: 6 bar

- Rotary Table Length: 1200 mm

- Rotary Table Width: 1000 mm

- Table Load Capacity: 3000 kg (centrally and evenly distributed)

- Distance Table Surface to Vertical Spindle Front Edge: 105 - 905 mm

- Max. Horizontal Clearance: 1430 mm

- Floor to Table Surface Height: 800 mm

- Table T-Slots: 9 T-slots (center slot 18 mm H7, remaining 18 mm H11, spacing 100 mm)

- Table Positioning Resolution: 0.0001°

- Table Rapid Rotation Speed: 7200 °/min (20 rpm)

- Table Clamping Torque: 7500 Nm

- Table Positioning Accuracy P: 8 sec

- Table Repeatability Accuracy Ps: 4 sec

- CNC Control Unit: HEIDENHAIN TNC 640 (19" TFT color flat screen, 4 GB RAM, 32 GB SSD, interfaces: 1x RS-232-C, 2x Ethernet, 5x USB)

- Portable Handwheel: HEIDENHAIN HR520

- Spindle/Head Type: Automatic universal head with 0.001° indexing, Direct Drive motor, liquid cooled

- Spindle Taper: HSK-A63 DIN 69893

- Spindle Speed: Up to 18,000 rpm

- Spindle Power (S1/S6): 22 / 33 kW

- Spindle Torque (S1/S6): 84 / 128 Nm

- Head A-Axis Swivel Range: +/- 185°

- Head A-Axis Max Speed: 30 rpm

- Head A-Axis Clamping Torque: 1400 Nm

- Head A-Axis Max Available Torque: 410 Nm (302 ft lb)

- Table Axis Max Available Torque: 2500 Nm (1844 ft lb)

- Tool Changer: Chain tool changer, 60 tools, VERT position

- Max Tool Length: 300 / 350 mm

- Max Tool Diameter: 75 mm

- Max Tool Weight: 10 kg

- Laser Probe: RENISHAW laser probe software system (max tool diameter 180 mm)

- Workpiece Measuring Probe: RENISHAW RMP40M radio probe with LP2 (100 mm length, 6 mm diameter stylus) and RMI-Q receiver

- Coolant System: Internal (30 bar, 10 l/min) and external (30 bar, 40 l/min) coolant supply, 800 l tank capacity, 80/60 micron filters

- Internal Air Supply: High-speed internal compressed air through spindle (up to 24,000 rpm)

- Chip Conveyor: 2 built-in screw conveyors with discharge to the right

- Vibration Sensor: SRV collision and vibration overload detection sensor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
