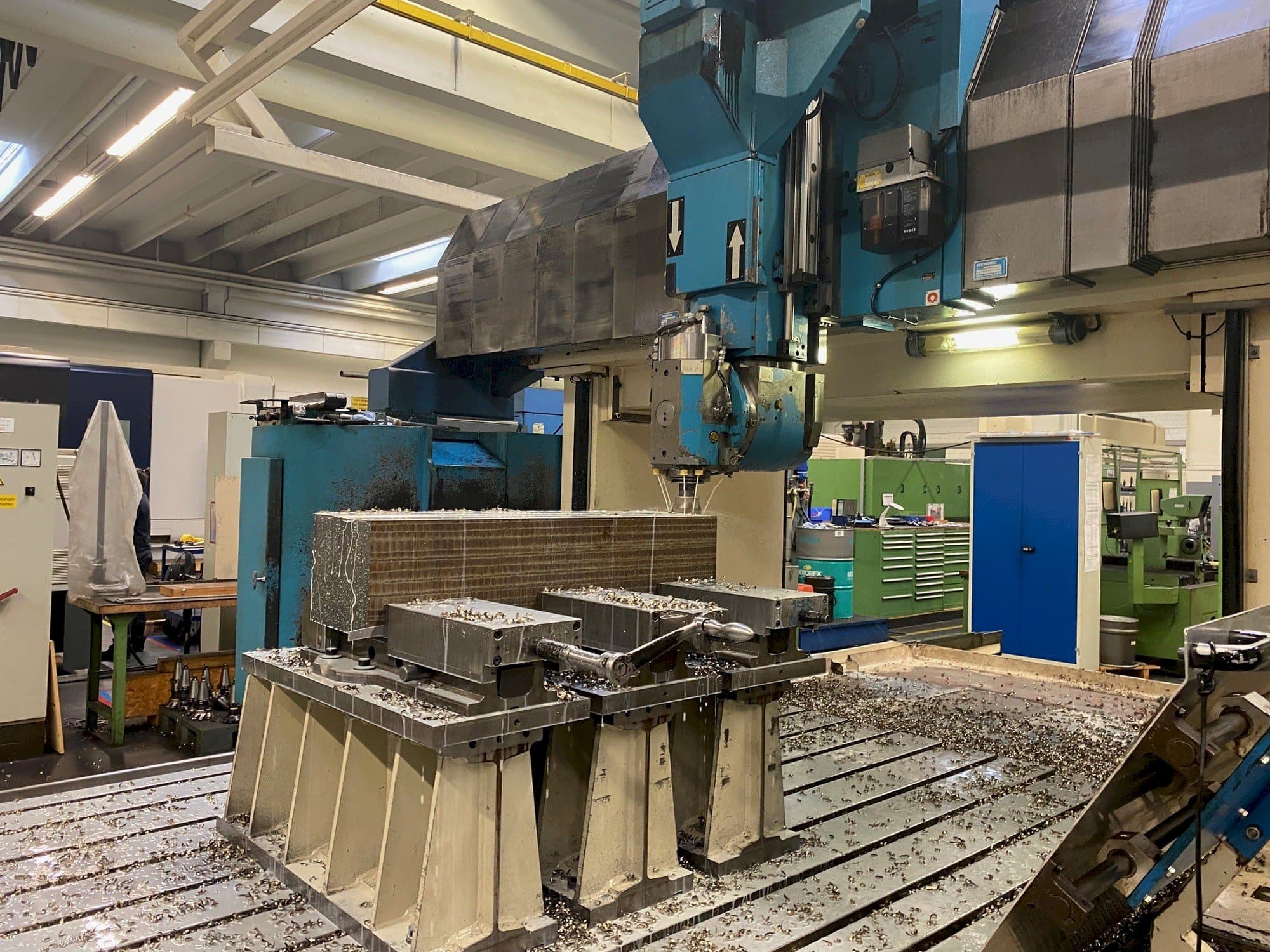

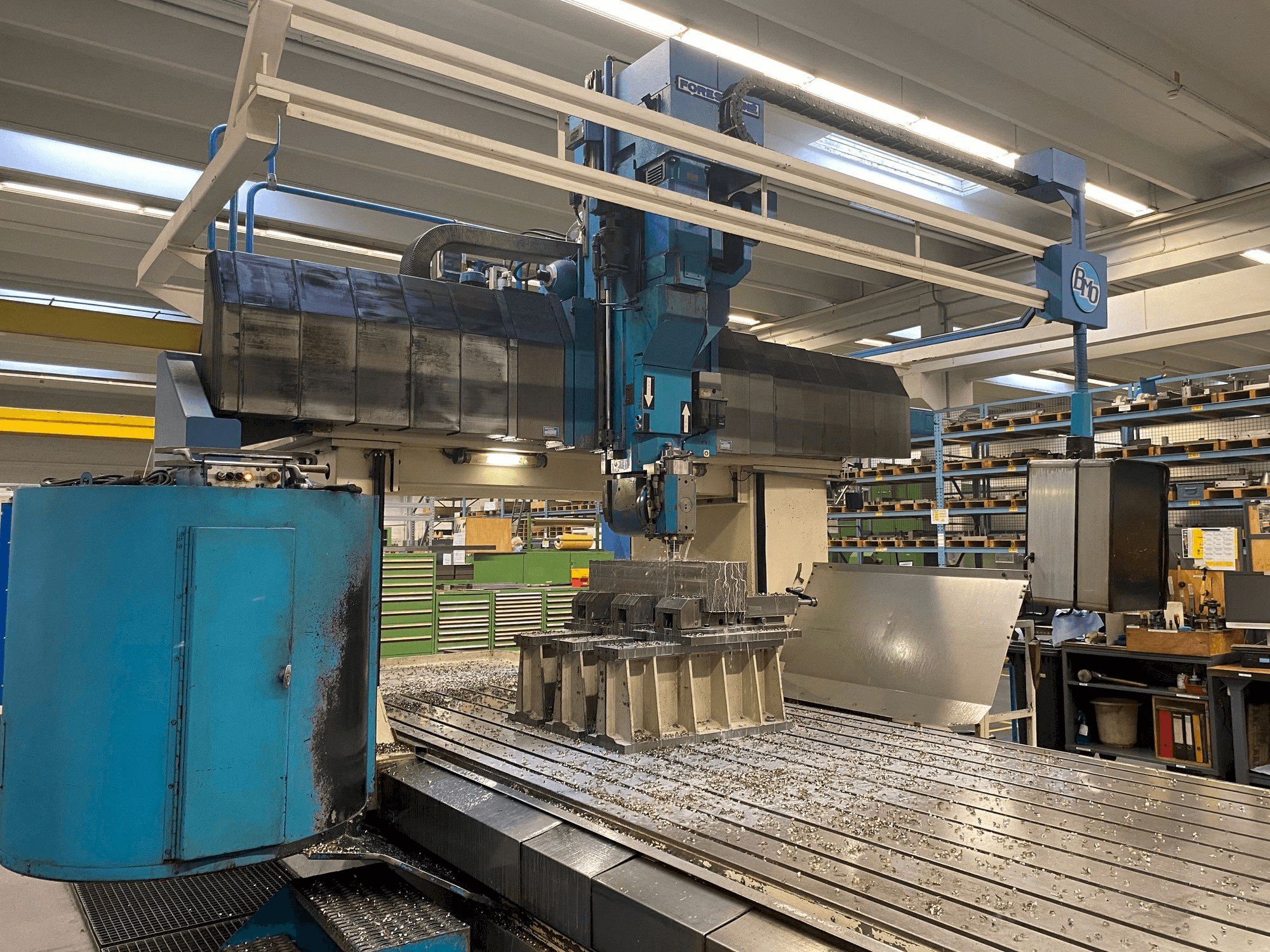

Front view of Forest Line Seramill 240 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Forest Line Seramill 240

Photo Gallery

Forest Line - Seramill 240DE-MIL-FOR-1990-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Forest Line Seramill 240 Milling Machine

Show in original language

This Forest Line Seramill 240 Milling Machine was built in the year 1990 and is a 5-axis machine operating with a spindle speed up to 2500 rpm, and a cutting speed of 10000 rpm. It is equipped with a NUM 760 F control unit.

Overview

brand: Forest Line
year: 1990
MODEL: Seramill 240
application type: Milling
Location: Germany
machine type: Gantry Milling Machine

Technical Information - Forest Line Seramill 240

General Data

Measurements height: 4595 mm
Machine weight: 51000 kg

Control Unit

Model: 760 F

Main drive

Spindle speed range: 2500 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 10000 mm
Y-AXIS Movement: 2500 mm
Z-AXIS Movement: 950 mm

Table

Outer length: 2115 mm
Outer width: 10000 mm
TSlots size: 28 mm
Distance between: table: 700 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Cutting speed: 10000 mm/ min
Vertical cutting: 950 mm
The travel in the z-axis is reduced depending on the position of the head up to 685 mm
The axes a and c is a swivel head and can be indexed in 2. 5 degree steps
Swivel range c axis 0-360 degrees
Swivel range a axis 80-290 degrees

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
