Flow ADS 24/ll Water cutting machine

Show in original language

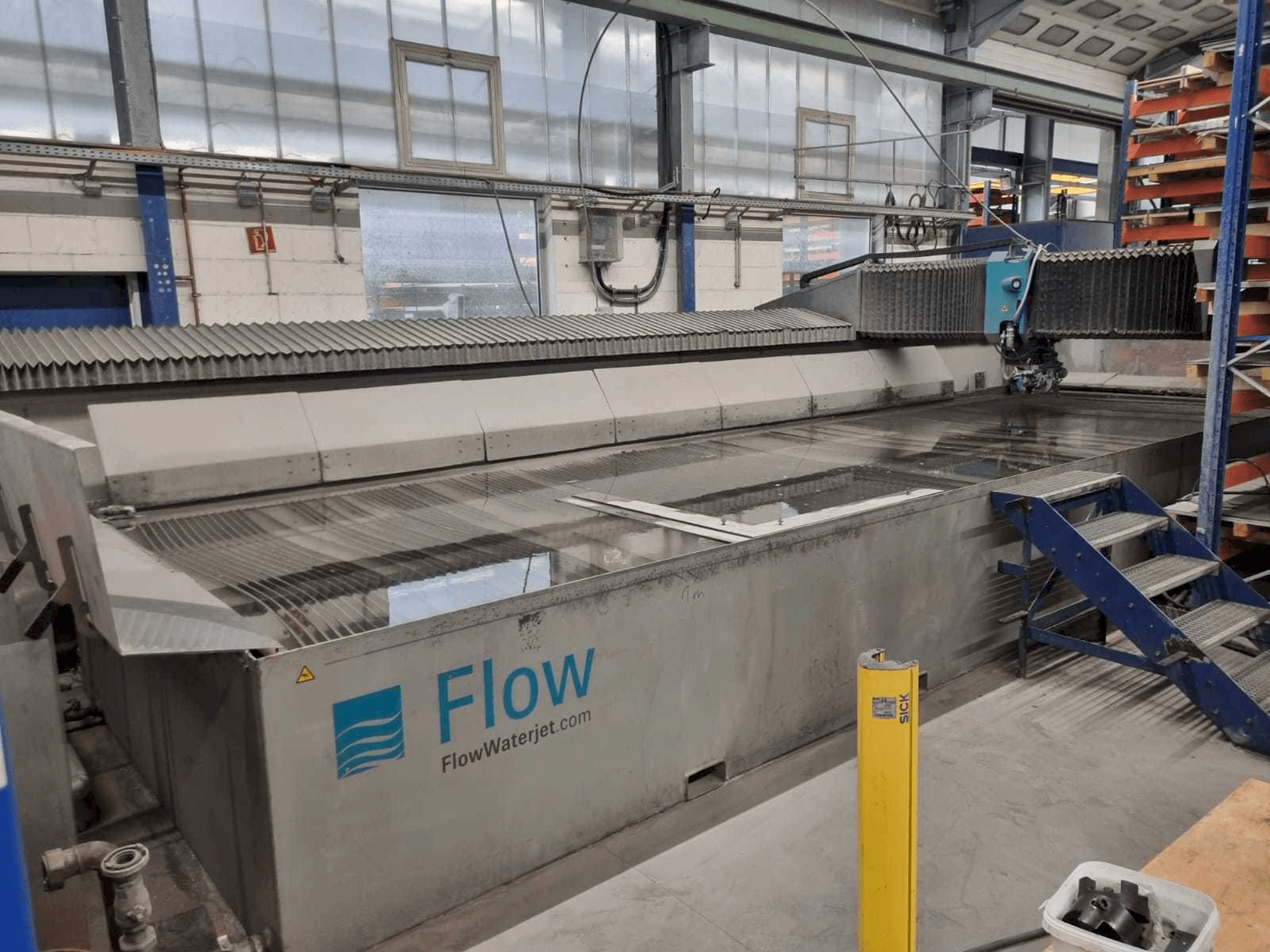

This Flow ADS 24/ll Water cutting machine was manufactured in the year 2010 in the United States and has 6678 hours. The machine has a cutting speed of up to 7,6 m/min and a max working pressure of 5 bar.

Overview

brand: Flow
year: 2010
MODEL: ADS 24/ll
production hours: 6678
application type: Cutting
Location: Germany
machine type: Waterjet Cutting Machine

Technical Information - Flow ADS 24/ll

General Data

Measurements width: 7300 mm
Measurements depth: 2000 mm

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 7300 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 190 mm

Media

Main electronic connection: 480 V /60 Hz

Additional Information

Machine Benefits

Qualitative Machine Benefits

Volume 24l, weight 85 kg
With filter system and sludge absorber

Technical Machine Benefits

Materials up to 150 mm thickness
Accuracy: (+/-) 0,03 mm/m
Repeatability accuracy: (+/-) 0,05 mm
Feed speed: up to 12,7 m/min
Cutting speed: up to 7,6 m/min
With hyper intensive pump
87000 psi, 6000 bar
With hopper for sand and injection device
Max working pressure: 5 bar
Test pressure: 12 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
