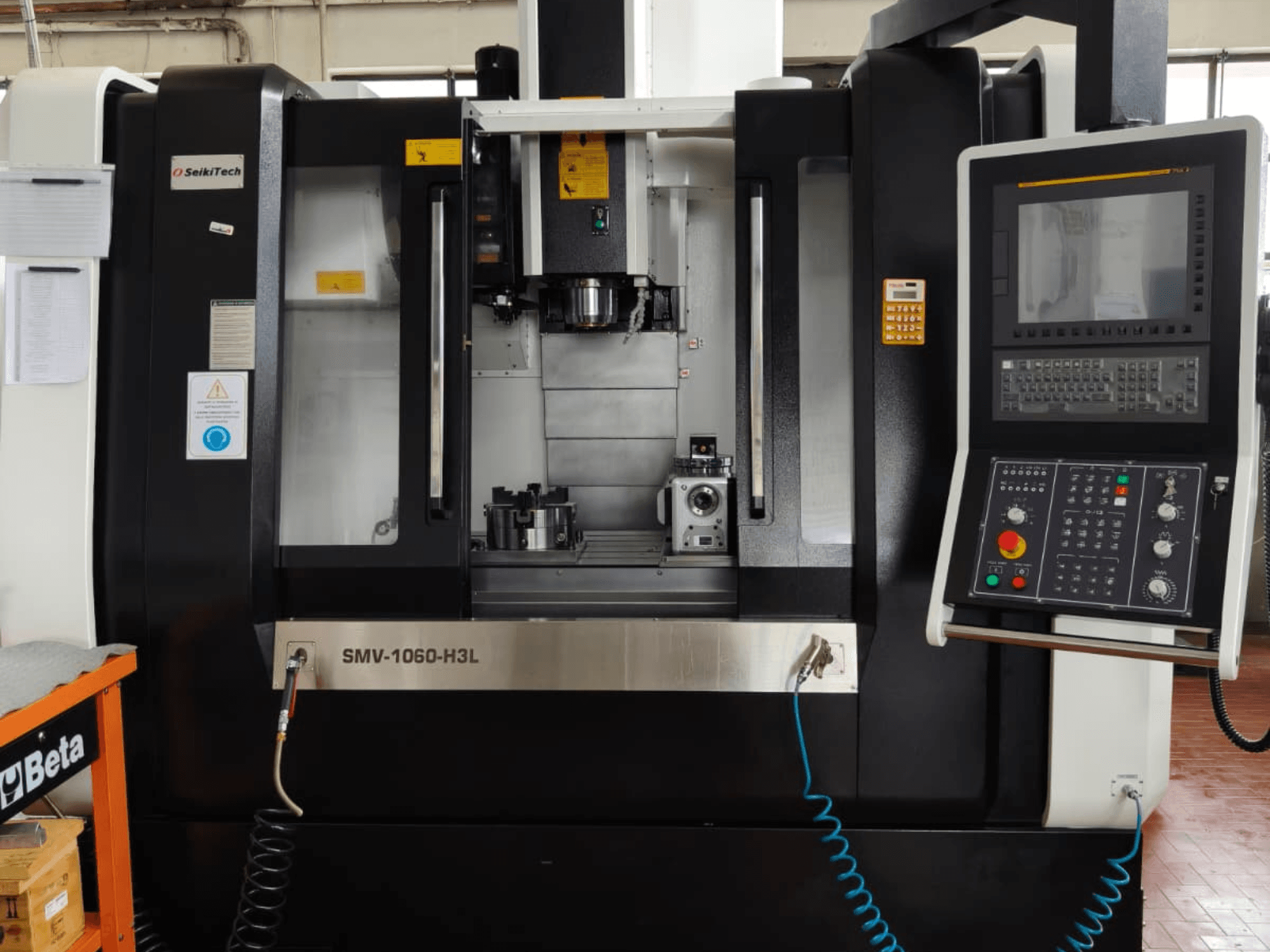

This 4-axis Finetech SMV 1060 H3L was manufactured in 2024. It features an impressive X-axis travel of 780 mm, Y-axis travel of 600 mm, and Z-axis travel of 650 mm. The machine includes a robust table size of 1100 x 600 mm and a maximum table load of 700 kg. If you are looking to get high-quality machining capabilities, consider the Finetech SMV 1060 H3L vertical machining centre. Contact us for further details.
Overview
- brand: Finetech
- year: 2024
- MODEL: SMV 1060 H3L
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Finetech SMV 1060 H3L
Control Unit
- Control Brand: FANUC
- Control Model: 0iMF
Dimensions
- Machine Weight: 6800 kg
- Table Load: 700 kg
Movement
- Number of Axes: 4
- X-axis Travel: 780 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 650 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Spindle Power: 7.5 kW
- Spindle Speed: 8000 RPM
- Taper Size: ISO 40
Additional Information
Structure: Cast iron structure; roller linear guideways
Control: FANUC 0iMF; 10.5" monitor; remote electronic handwheel
Table: 1100 x 600 mm; 5 T-slots; T-slot size 18 mm; T-slot pitch 100 mm
Distances: Spindle nose to table 130–780 mm
Spindle: taper No. 40
Tool changer (ATC): Tool holder taper ISO40 DIN69871; 24-position magazine; max tool Ø 80 mm; max tool length 300 mm; bidirectional selection; tool-to-tool 3 s; chip-to-chip 6 s
Feedrates: Rapids X/Y/Z 36/36/32 m/min; working feedrate X/Y/Z 1–12,000 mm/min
Coolant/utilities: Coolant tank 380 L; working pressure 4 bar; total installed power 25 kVA
Dimensions & weight: 2900 x 2500 x 2800 mm
Standard features: Rigid tapping; full safety enclosure; random bidirectional ATC arm; 24-position tool magazine; oil spindle cooling unit; Z-axis gas balancing system; automatic guide lubrication; electrical cabinet heat exchanger; working area lamp; service keys; transformer; manuals and CE declaration
Additional equipment
Chip conveyor (screw type)
Optional 40-tool chain-type magazine: BT40/CAT40; max tool Ø 75 mm with adjacent pockets occupied, Ø 152 mm with adjacent pockets empty; max tool weight 8 kg; max total tool weight 160 kg; air pressure required 5–6 kg/cm²
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
