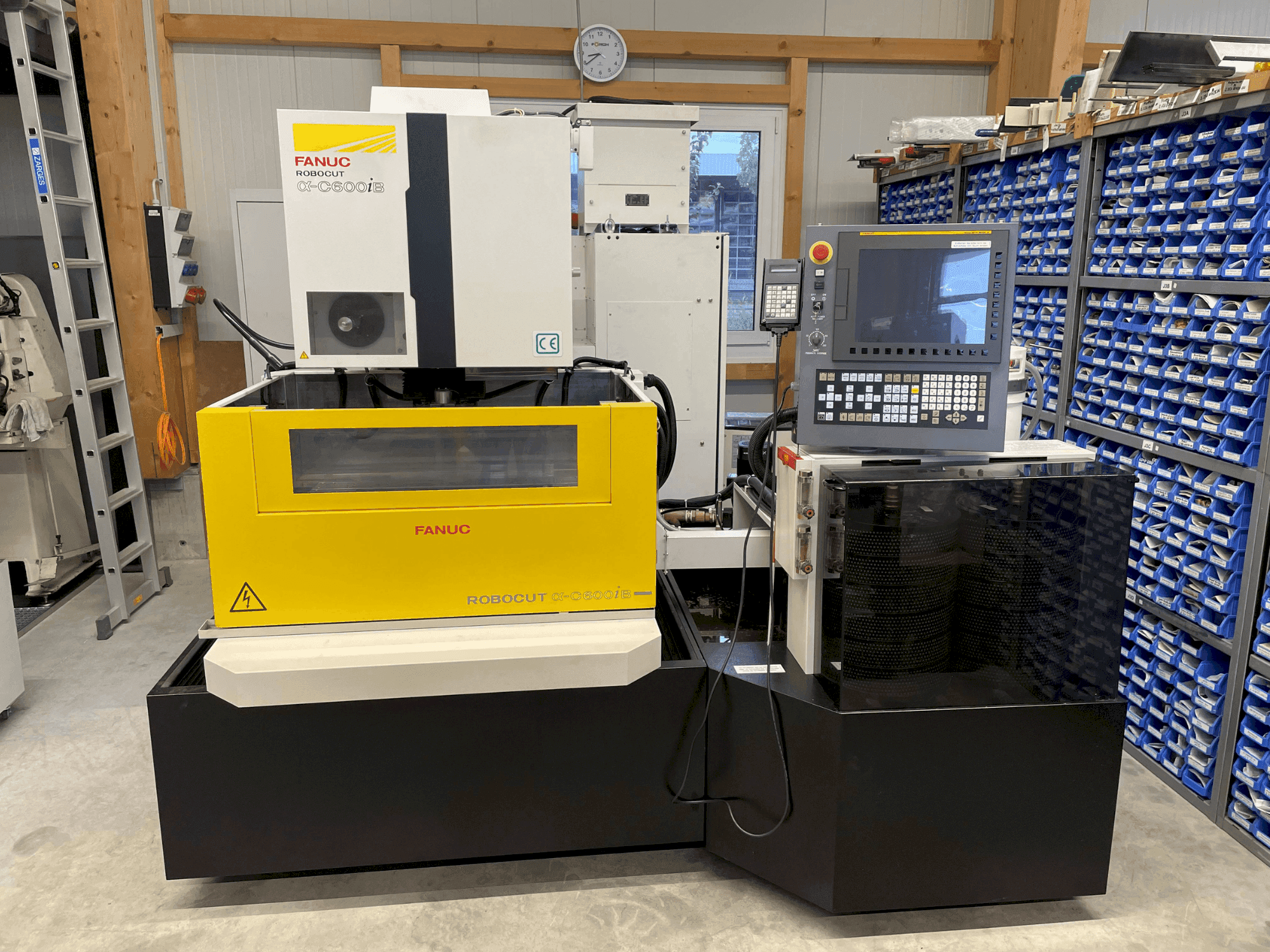

Front view of FANUC Robocut alpha iB600 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Robocut alpha iB600

Photo Gallery

FANUC - Robocut alpha iB600DE-EDM-FAN-2020-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used FANUC Robocut alpha iB600 For Sale | gindumac.com

Show in original language

This 5-axis FANUC Robocut alpha iB600 wire EDM machine was manufactured in 2020. It features a maximum workpiece size of 1050 × 820 × 300 mm and can handle weights up to 1000 kg. The machine includes UV axis travel of 200 × 200 mm and a maximum taper angle of ±30°. Equipped with a FANUC 31i-WB controller, it offers precise control and efficient operation. If you are looking to get high-quality EDM capabilities, consider the FANUC Robocut alpha iB600 machine we have for sale. Contact us for more information.

Overview

brand: FANUC
year: 2020
MODEL: Robocut alpha iB600
production hours: 4200
application type: EDM
Location: Germany
machine type: Wire EDM Machine
control unit brand: FANUC

Technical Information - FANUC Robocut alpha iB600

General Data

Measurements width: 2680 mm
Measurements depth: 2790 mm
Machine weight: 3000 kg

Control Unit

Brand: FANUC
Model: 31i-WB

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm
V-Axis Movement: 200 mm
U-Axis Movement: 200 mm

Workpiece

Workpiece weight: 1000 kg

Media

Power consumption: 13 kVA
Air pressure: 0.5 – 0.7 MPa

Additional Information

Additional equipment

Automatic Front Door Option
45° Die Guide: Max Taper Angle ±45° / 70 mm
30 kg Wire Feed Unit: Max Wire Weight 30 kg

Machine Benefits

Technical Machine Benefits

Part program storage: 4 mb standard, expandable up to 64 mb
Acoustic noise level: lpa 81 db, lpcpeak 410 db
Maximum workpiece dimensions: 1050 × 820 × 400 mm (with z-axis 400 option)
Ac200v ±10% 3-phase 50/60hz ±1hz
Ac220v ±10% 3-phase 60hz ±1hz
Flow rate: 100 – 110 l/min (120 l/min or more with thin wire option)
Regularly serviced by fanuc

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
