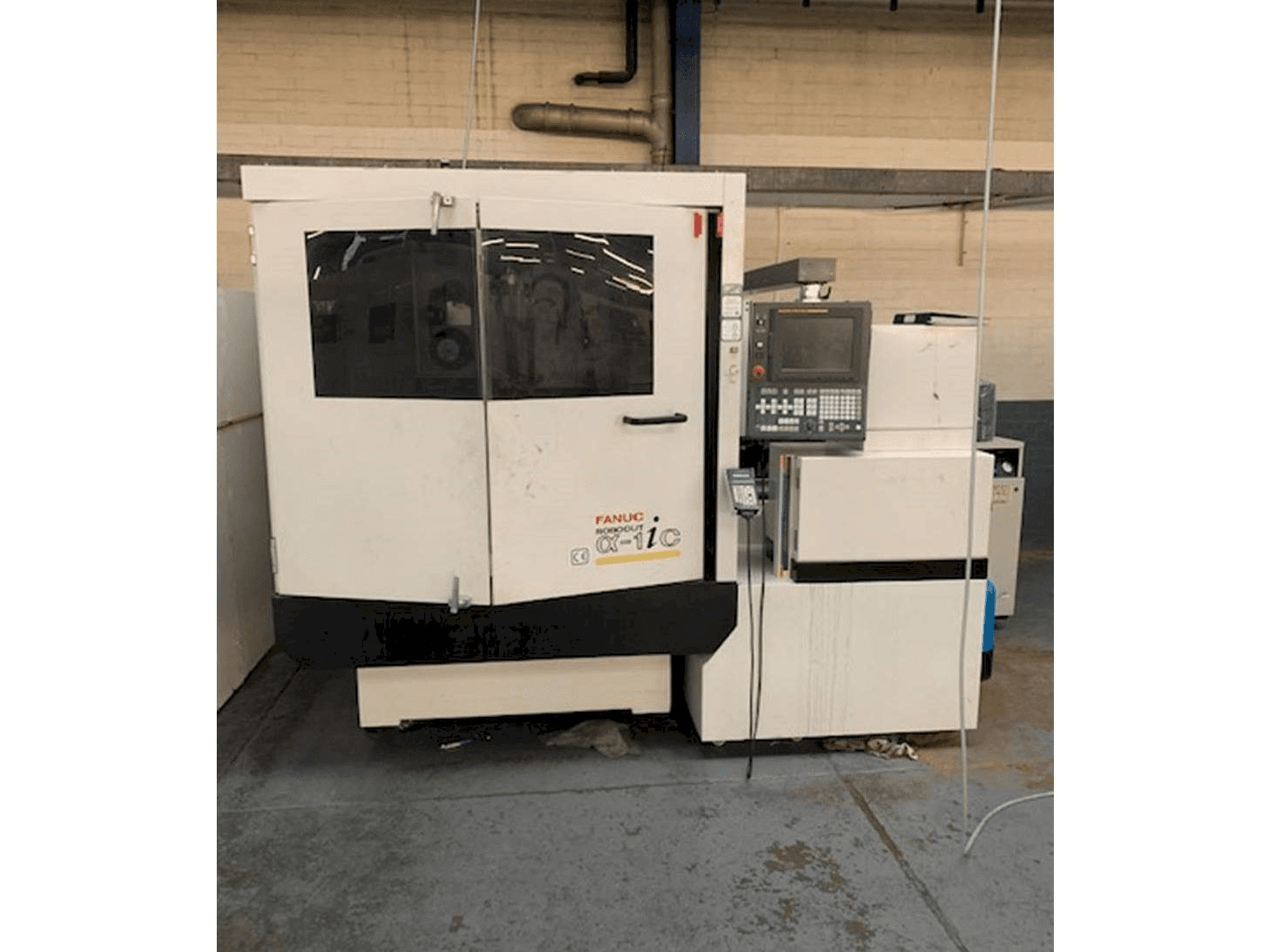

Front view of FANUC ROBOCUT Alpha -1iC S Axis machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC ROBOCUT Alpha -1iC S Axis

Photo Gallery

FANUC - ROBOCUT Alpha -1iC S AxisIE-EDM-FAN-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FANUC ROBOCUT Alpha -1iC S Axis

Show in original language

This FANUC ROBOCUT Alpha -1iC S Axis Erosion Machine was made in Japan in the year 2007 and refurbished in 2019. It is operated through a FANUC Series 180is-WB control unit. This 5 axis machine performs with a wire diameter range 0.1 to 0.3 mm. It has mainly worked producing aerospace parts. This machine is in excellent conditions.

Overview

brand: FANUC
year: 2007
MODEL: ROBOCUT Alpha -1iC S Axis
application type: EDM
Location: Ireland
machine type: Wire EDM Machine
control unit brand: FANUC

Technical Information - FANUC ROBOCUT Alpha -1iC S Axis

General Data

Machine weight: 3000 kg

Control Unit

Model: Series 180is-WB
CNC main language: ENGLISH
CNC language customizable: Yes
Brand: FANUC

Main drive

Wire diameter: 0.1 to 0.3 mm
Number of axis: 5

Movement

X-AXIS Movement: 550 MM
X-AXIS Rapid traverse: 900 MM/MIN
Y-AXIS Movement: 370 MM
Y-AXIS Rapid traverse: 900 MM/MIN
Z-AXIS Movement: 310 MM
Z-AXIS Rapid traverse: 900 MM/MIN
V-Axis Movement: 120 MM
V-Axis Rapid traverse: 450 MM/MIN
U-Axis Movement: 120 MM
U-Axis Rapid traverse: 450 MM/MIN

Workpiece

Workpiece x: 800 MM
Workpiece y: 730 MM
Workpiece z: 300 MM
Workpiece weight: 1000 KG

Media

Main electronic connection: 400 V 50/60 HZ
Power consumption: 13 KVA
Oil water separator: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine refurbished in 2019
Machine in excellent condition
Machine is decommissioned

Machine History

Industries

Aerospace

End product

Aerospace parts

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
