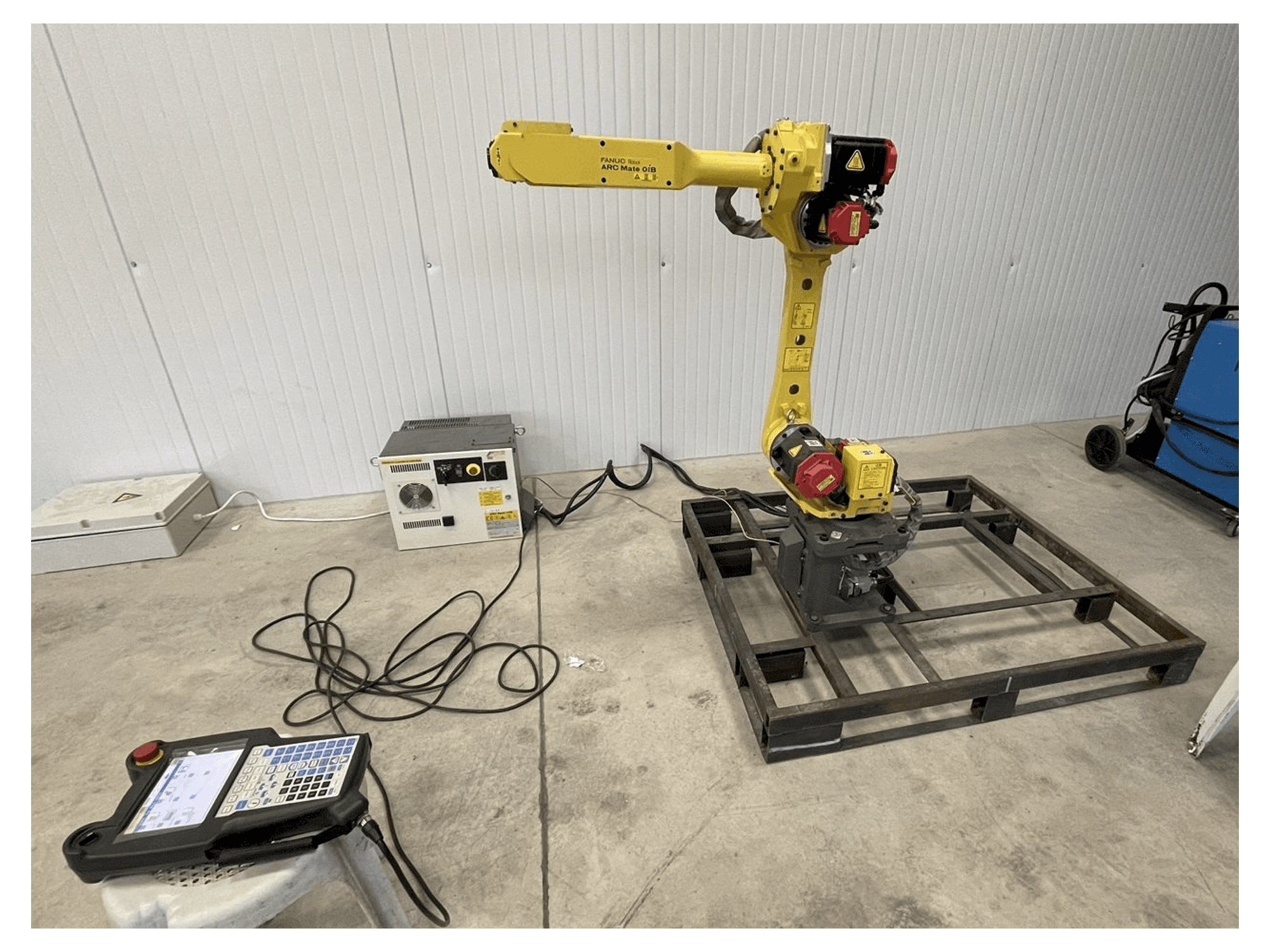

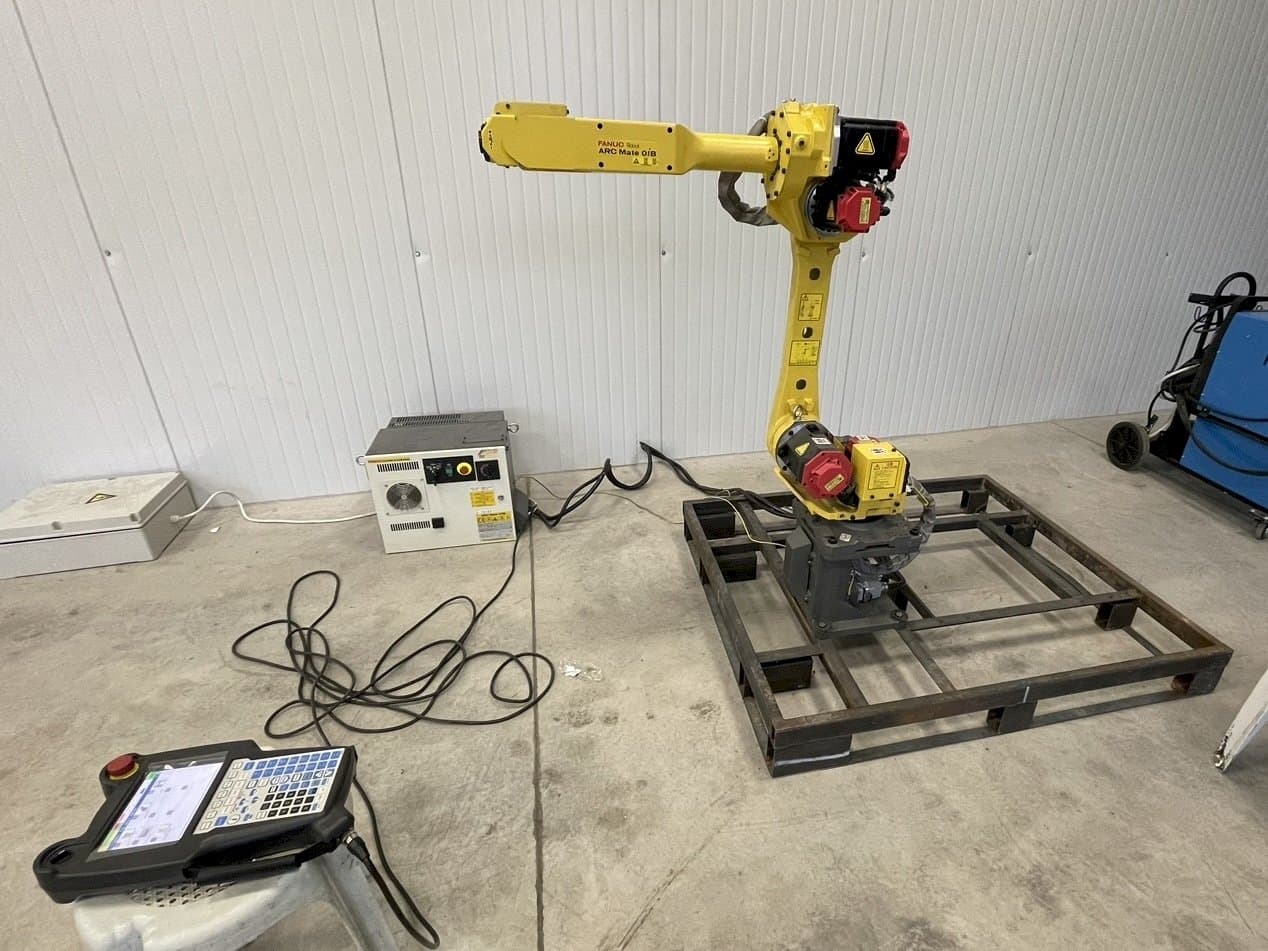

Front view of FANUC Arc mate 0iB machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Arc mate 0iB

Photo Gallery

FANUC - Arc mate 0iBBG-ROB-FAN-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
Fanuc Arc mate 0iB Robot

Show in original language

This Fanuc Arc mate 0iB Robot was manufactured in the year 2014 in Japan. It is equipped with a Fanuc 30iB control unit and has 6 axis. The machine has a maximum horizontal reach of 1437 mm.

Overview

brand: FANUC
year: 2014
MODEL: Arc mate 0iB
application type: Robotics
Location: Bulgaria
machine type: Robot Arm
control unit brand: FANUC

Technical Information - FANUC Arc mate 0iB

Control Unit

Brand: FANUC
Model: 30iB

Main drive

Number of axis: 6

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum load of robot: 3 kg
- - Maximum horizontal reach: 1437 mm
- - Repeatability: ± 0. 08
- - Motion range (°): axis 1: 360°, axis 2: 250°, axis 3: 455°, axis 4: 380°, axis 5: 280°, axis 6: 720°.
- - Maximum speed (°/s): axis 1: 225°/s, axis 2: 215°/s, axis 3: 225°/s, axis 4: 425°/s, axis 5: 425°/s, axis 6: 625°/s
- - Arc welding
- - Laser welding
- - Cutting

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
