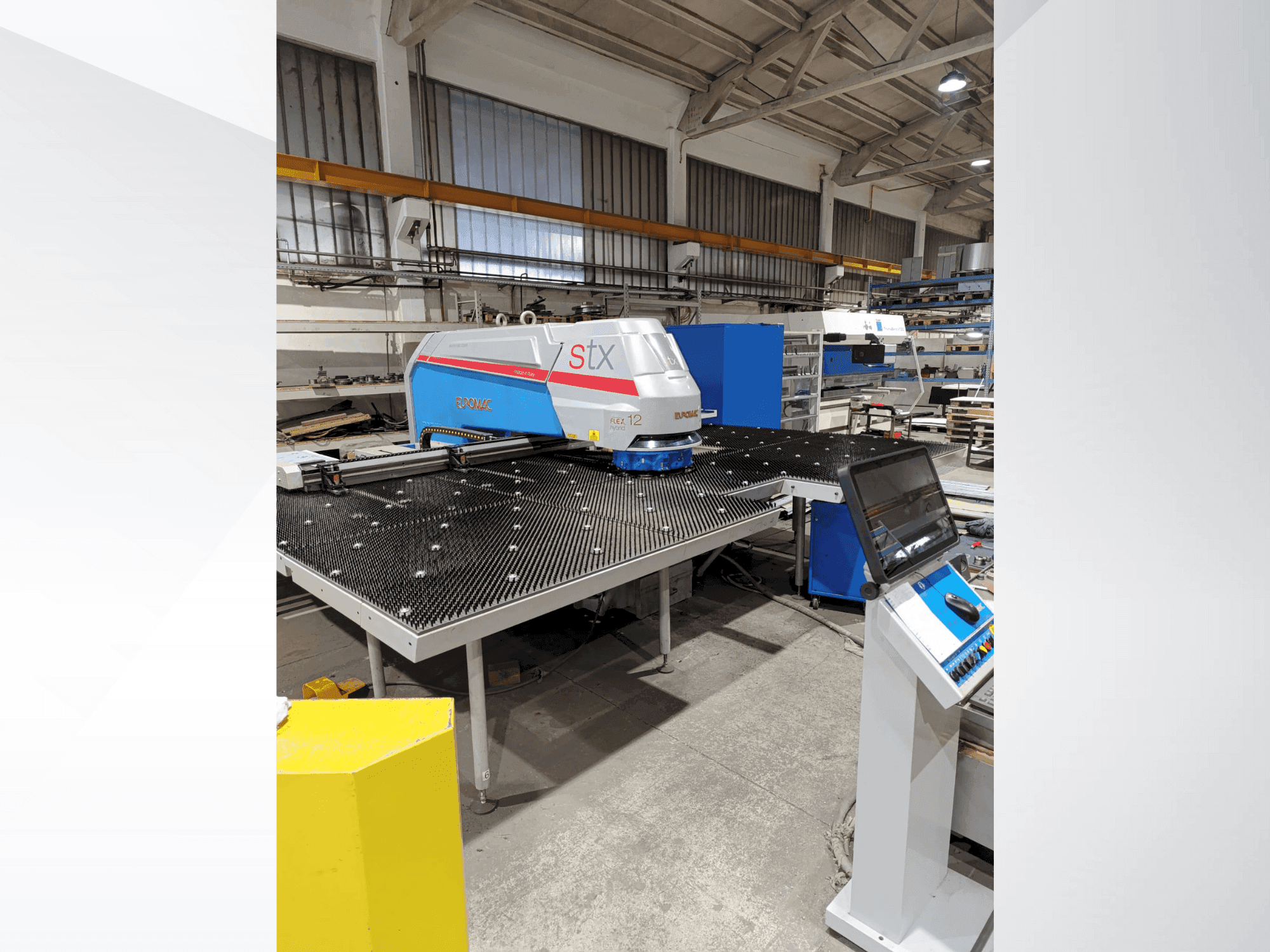

This 4-axis Euromac STX FLEX 12 1500/22-2500 was manufactured in 2018, designed for both punching and bending applications. Ideal for workshops requiring versatile and precise metal forming capabilities. Consider the opportunity to buy this Euromac STX FLEX 12 1500/22-2500 punching and bending machine. Contact us for more information.
Overview
- brand: Euromac
- year: 2018
- MODEL: STX FLEX 12 1500/22-2500
- application type: Punching
- Location: Slovenia
- machine type: Punching and Bending Machine
Technical Information - Euromac STX FLEX 12 1500/22-2500
Dimensions
- Machine Depth: 4850 mm
- Machine Weight: 9800 kg
Additional Information
Machine Benefits
Technical Machine Benefits
- Automatic repositioning (mm): up to 10000
- Max material thickness (mm): 0. 6 - 6. 5 / max. Sheet weight at reduced speed (kg): 180
- Stroke of y axis with a multitool/single-tool (mm): 1500/22-2500 /stroke of x axis (mm): 2500
- Max. Number of autoindex stations: 5 / autoindex two-way stations (340°): 3 / autoindex rotation speed (rpm): 174
- Max. Number of strokes (1/min): at 25 mm pitch: 425 / at 20 mm pitch: 460 / at 1 mm pitch (nibbling): 1080 / marking: 2000
- Max. Punching force (kn): 220/ punch stroke adjustment range (mm): 0. 1 - 31 punching accuracy (mm): ±0. 05 / accuracy for shape repeatability (mm): ±0. 1 / clamp aperture (mm): 11
- Tank capacity (liters): 135 / installed power (kw): 8. 5 / average power consumption (kw/h): 4. 5
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
