➤ Used Finn-Power Shear Genius TRS 6 SBU | For Sale

Show in original language

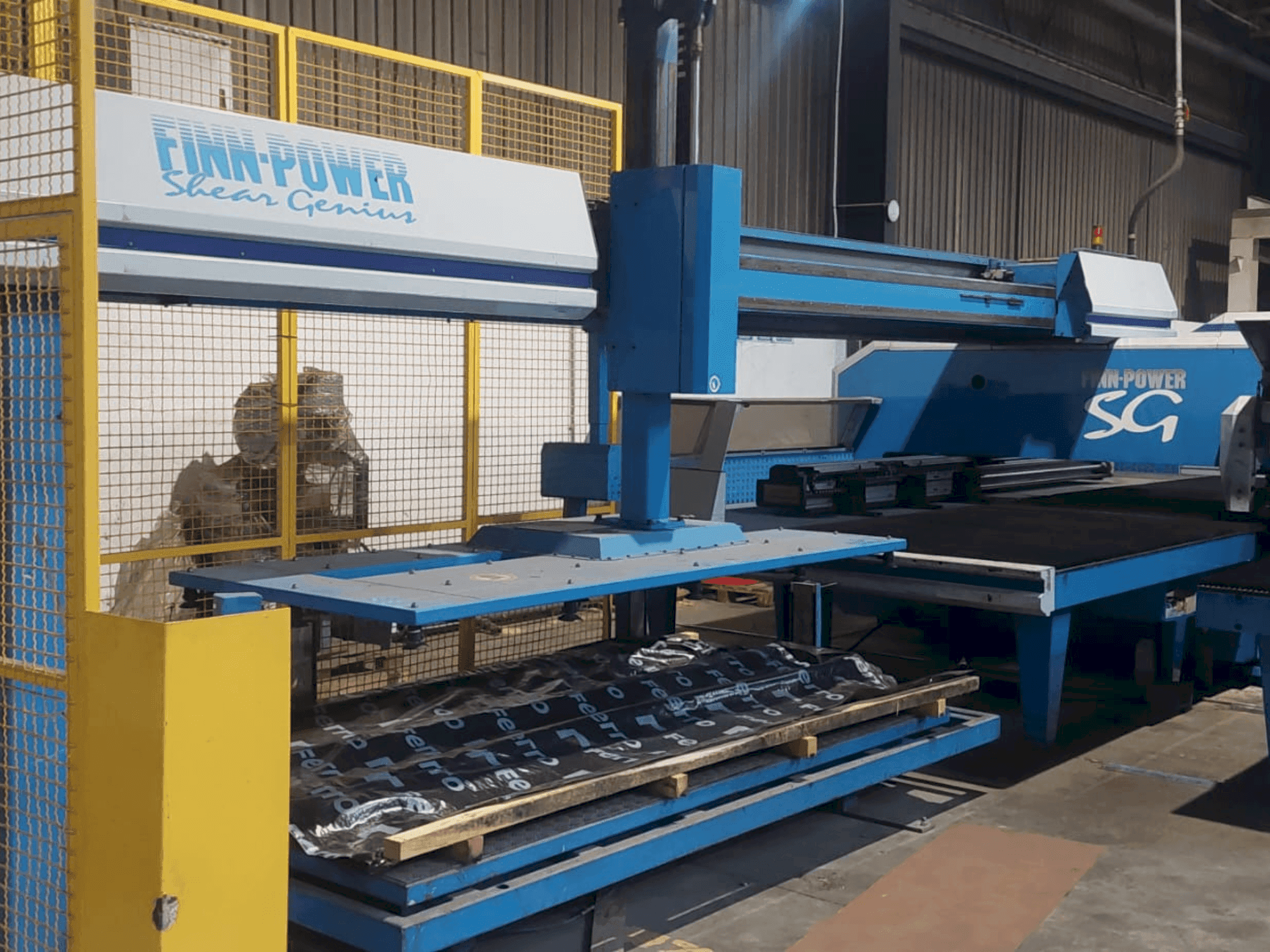

This 3-axis Finn-Power Shear Genius TRS 6 SBU was manufactured in 1996, featuring a punching force of 300 kN and a sheet working range of 2500 mm × 1250 mm. It supports up to 21 tool stations and can handle sheet thicknesses up to 6 mm. Automatic tool change system enhances productivity. Consider the opportunity to buy this Finn-Power Shear Genius TRS 6 SBU punching and bending machine. Contact us for more information.

Overview

brand: Finn-Power
year: 1996
MODEL: Shear Genius TRS 6 SBU
application type: Punching
Location: Portugal
machine type: Punching and Bending Machine

Technical Information - Finn-Power Shear Genius TRS 6 SBU

General Data

Measurements width: 5000 mm
Measurements depth: 5500 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Main drive

Punching force: 300 kN
Number of axis: 3

Additional Information

Machine Benefits

Technical Machine Benefits

Max material thickness: approx. 6 mm (mild steel)
Sheet working range: approx. 2500 mm x 1250 mm (without repositioning)
Positioning accuracy: ±0. 1 mm
Tool stations: up to 21
Indexable tool stations: yes
Tool change system: automatic

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
