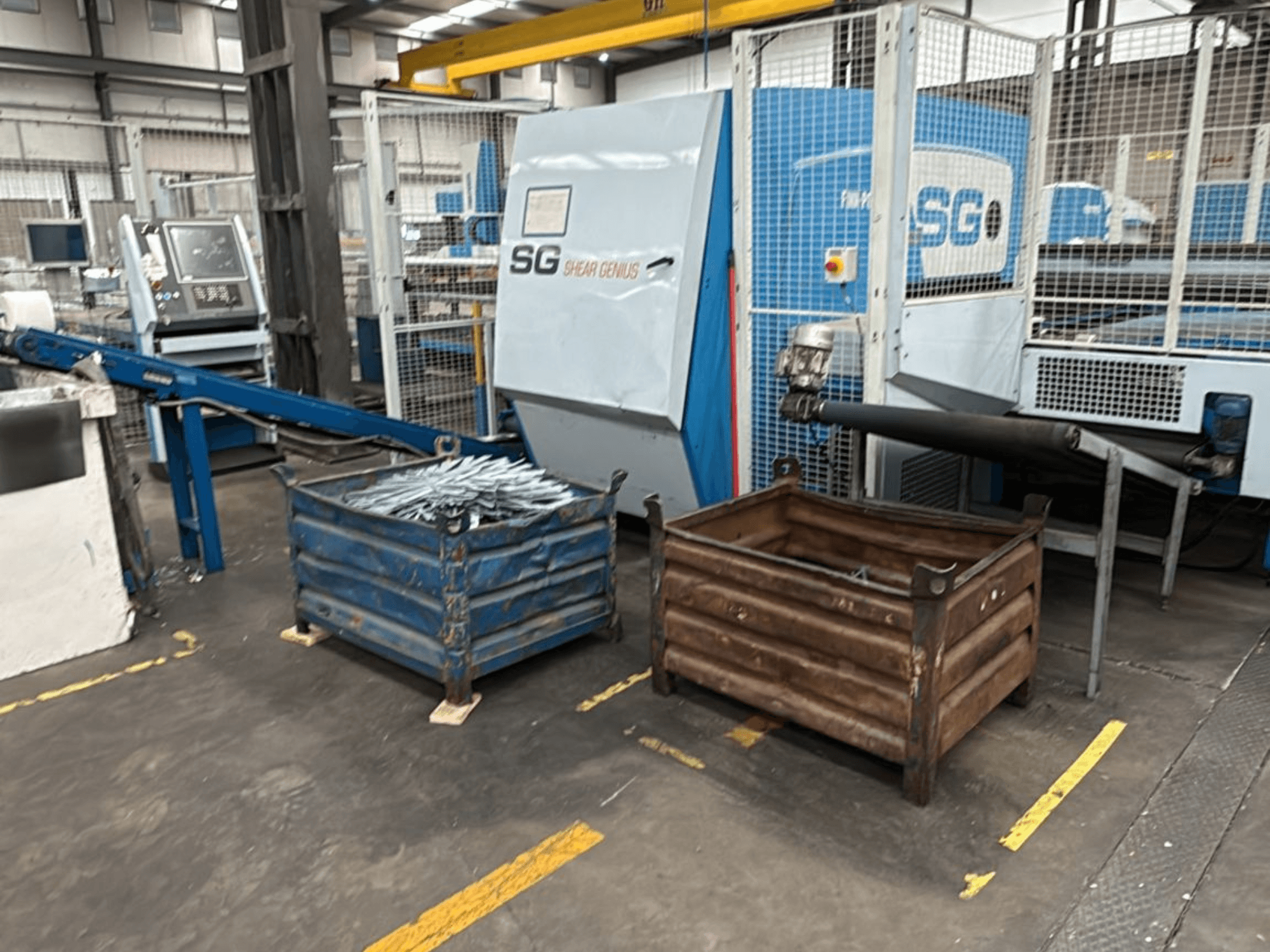

This 11-axis Finn-Power SG6 12.61 was manufactured in 2010. It features a maximum punching force of 300 kN and can handle sheet thicknesses up to 6 mm. The machine includes a thick turret with 20 stations and an integrated CNC right-angle shear for efficient part separation. If you are looking to get high-quality punching capabilities, consider the Finn-Power SG6 12.61 punching and bending machine we have for sale. Contact us for further details.
Overview
- brand: Finn-Power
- year: 2010
- MODEL: SG6 12.61
- application type: Punching
- Location: Spain
- machine type: Punching and Bending Machine
- control unit brand: SIEMENS
Technical Information - Finn-Power SG6 12.61
Control Unit
- Control Brand: SIEMENS
Dimensions
- Machine Weight: 23000 kg
Movement
- Number of Axes: 11
Technical Specification
- Max. Sheet Thickness: 6 mm
- Punching Force: 300 Kn
Additional Information
Max. punching diameter: approx. 88.9 mm (in 3 mm steel)
Punching speed: up to 600 hpm (short pitch)
Positioning accuracy: ±0.1 mm
Max. sheet size: 1500 x 2500 mm
Automatic repositioning: yes, via CNC clamps
Number of clamps: 2 (with intelligent repositioning)
Loading/unloading capability: manual or automatic (configuration dependent)
Turret: Thick Turret / Trumpf style
Number of stations: 20
Integrated shear: CNC right-angle shear
Shearing capacity: up to 6 mm (mild steel)
Process advantage: part separation without micro-joints or secondary operations
Edge quality: superior to traditional nibbling
Control unit: Finn-Power / Siemens
Software: NC Express / Tulus
Functions: automatic nesting; optimized punching and shearing sequences
Diagnostics: self-diagnostics and assisted maintenance
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
