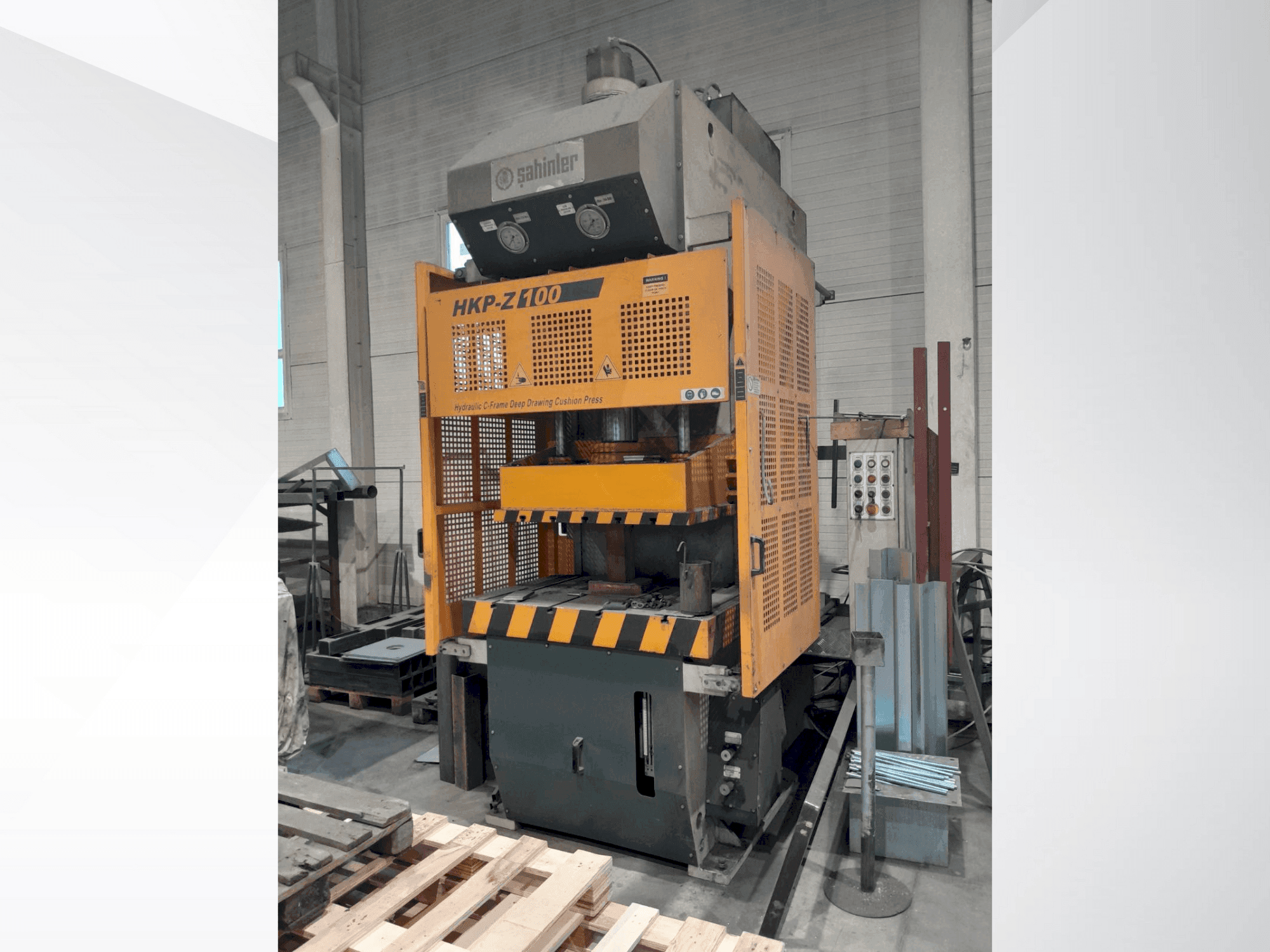

Front view of Sahinler HKP-Z 100 machine
Front view of Sahinler HKP-Z 100 machine

Sahinler - HKP-Z 100HU-PUN-SAH-2016-00001

Rs. 3,121,200
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Sahinler HKP-Z 100 was manufactured in 2016. A robust C-frame PLC controlled deep drawing press, it features a pressure force of 1000 kN and a stroke of 500 mm. The machine includes a large table size of 900x600 mm and a throat depth of 300 mm, suitable for diverse punching and bending tasks. Consider the opportunity to buy this Sahinler HKP-Z 100 punching and bending machine. Contact us for more information about this machine.

Overview

  • brand: Sahinler
  • year: 2016
  • MODEL: HKP-Z 100
  • application type: Punching
  • Location: Hungary
  • machine type: Punching and Bending Machine

Technical Information - Sahinler HKP-Z 100

General Data

  • Measurements width: 1600 mm
  • Measurements depth: 2180 mm
  • Measurements height: 3350 mm
  • Machine weight: 9300 kg

    Additional Information

    Additional equipment

    • Lower Hydraulics Pressure Force: 350 kN / Lower Hydraulics Travel: 200 mm / Lower Hydraulics Table Size: 400x400 mm / Lower Hydraulics Travel Speed: 52 mm/min

    Machine Benefits

    Technical Machine Benefits

    • Pressure force: 1000 kn/ max pressure: 240 bar/ stroke: 500 mm/ piston diameter: Ø 220 mm/ draw force max: 100 kn
    • Table size: 900x600 mm / lower table size: 1100x700 mm / max receiving height: 750 mm / throat depth: 300 mm / central opening: Ø 120 mm
    • Tank capacity: 350 l
    • Recommended speed: 100 mm/min / working speed: 25 mm/min / return speed: 165 mm/min / motor power: 11 kw

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
