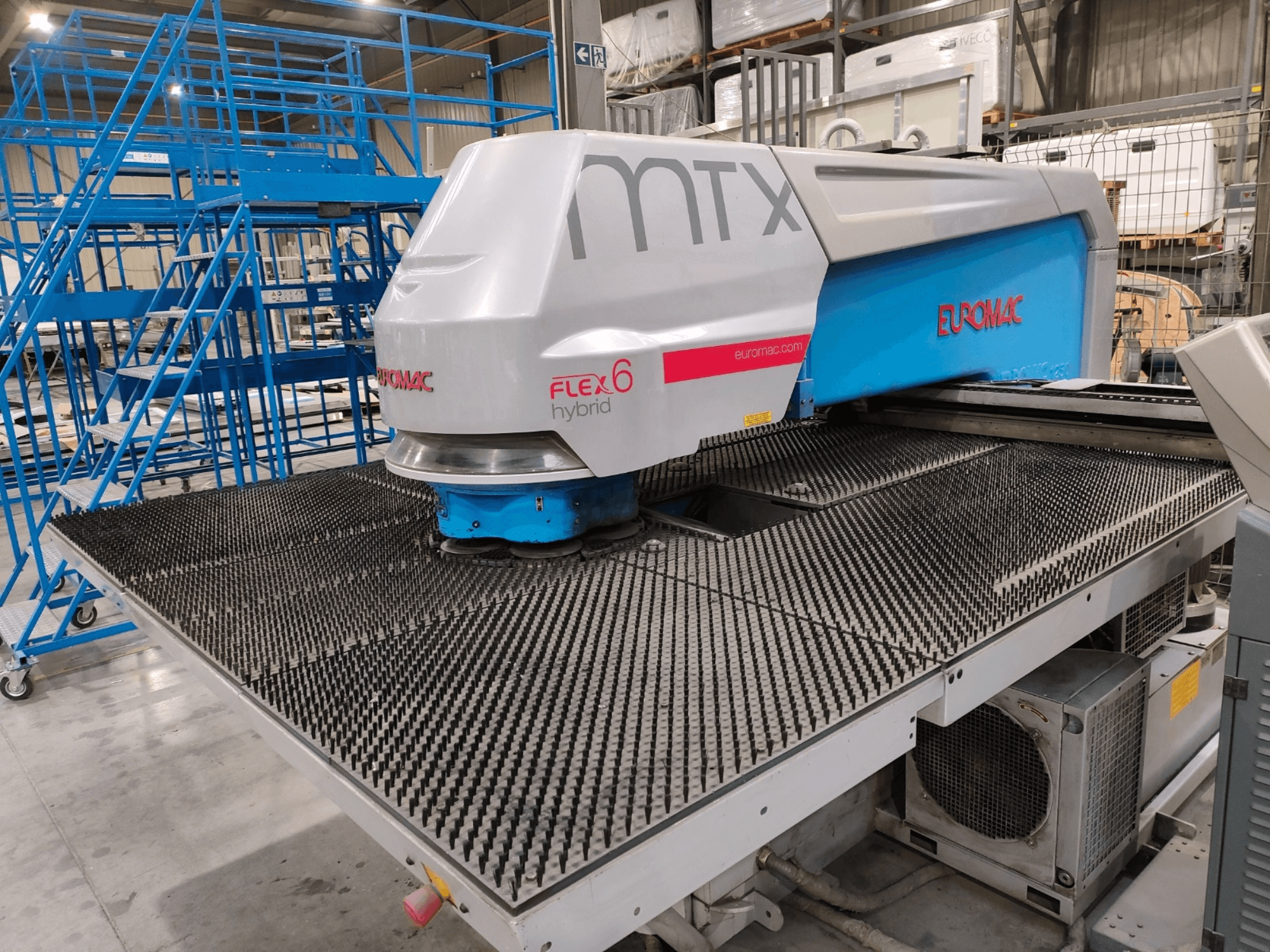

Euromac - MTX Flex 6 HybridPL-PUN-EUR-2013-00001

Model: MTXR FLEX 6ST 1250/30-1300 AU

Y-axis stroke with multitool/single-tool: 1250 mm

X-axis stroke: 1300 mm

Automatic repositioning: up to 10000 mm

Punch stroke adjustment range: 0.1–31 mm

Hydraulic system with servomotor control: standard

Punching accuracy: ±0.05 mm

Shape repeatability accuracy: ±0.1 mm

Autoindex rotation speed: 174 rpm

Maximum strokes per minute:

• Punching at 20 mm pitch: 375 1/min

• Nibbling at 1 mm pitch: 1000 1/min

• Marking: 2000 1/min

Maximum sheet weight at reduced speed: 200 kg

Maximum punching diameter (Autoindex stations): 85 mm

Hydraulic tank capacity: 135 liters

Installed power: 8.5 kW

Average power consumption: 4.5 kW/h

Workpiece discarding trap: 350 × 350 mm

Overall dimensions: 2240 × 3630 mm

Safety light curtains are included

Table type: Brushes

Tooling system: Thick Turret

Clamp type: Automatic, long

Automatic tool lubrication: Yes

External cooling system: SESINO

UPS system: Yes

Teleservice: Yes

Status: The machine is currently disconnected, but can be connected and inspected. It is fully functional.
