Thank you for your visit

This machine was recently sold.

Browse similar machines

Engel - ES 1050/275 HL-VCZ-INJ-ENG-2003-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

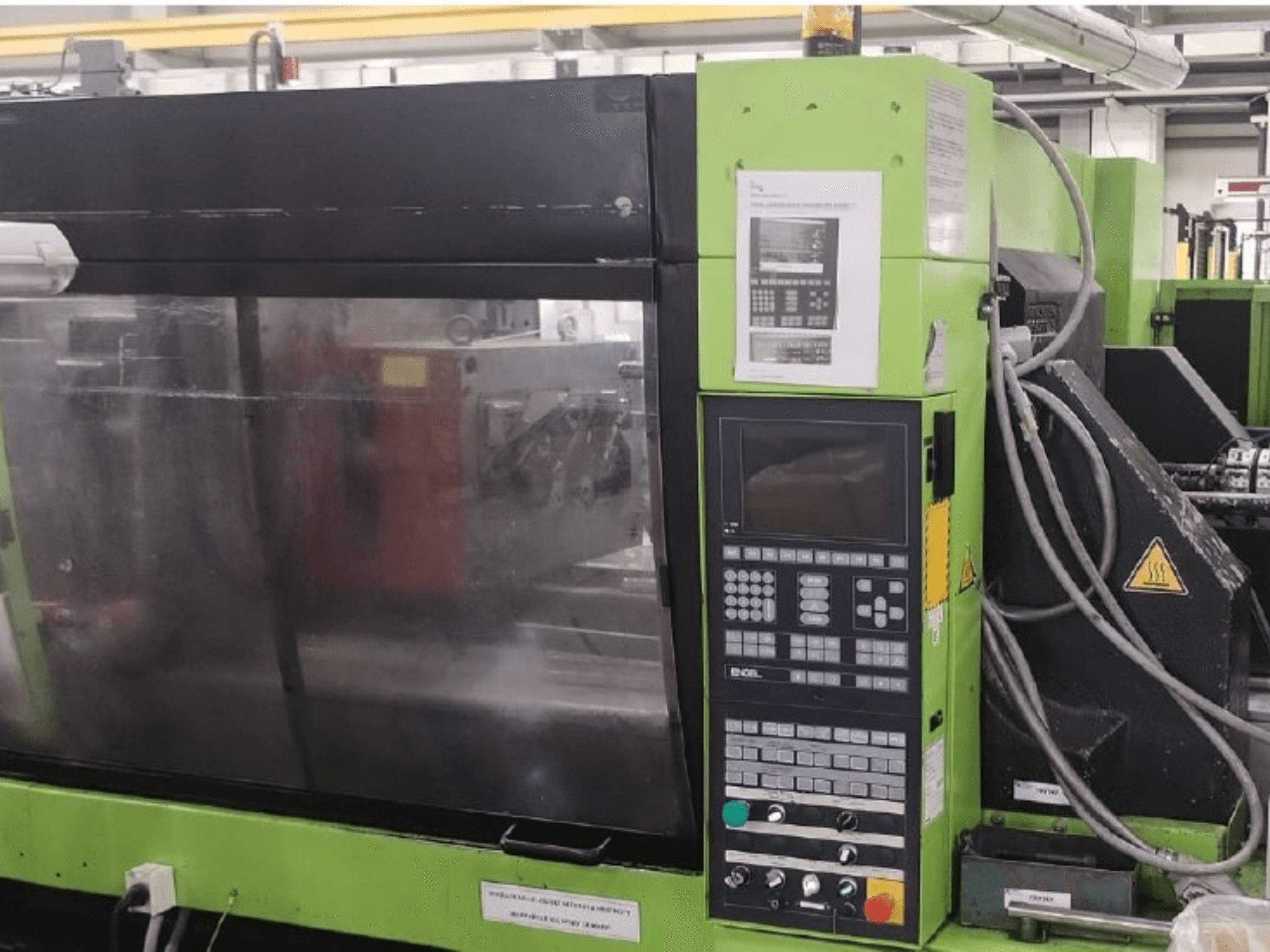

Hydraulic injection moulding machine manufactured in 2003. This Engel ES 1050/275 HL-V features a clamping force of 275 t and a maximum platen stroke of 1200 mm. It has a screw diameter of 60 mm and a maximum injection volume of 607 ccm. If you are looking to get high-quality injection moulding capabilities, consider the Engel ES 1050/275 HL-V machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: Engel
  • year: 2003
  • MODEL: ES 1050/275 HL-V
  • application type: Injection Moulding
  • Location: Czech Republic
  • machine type: Hydraulic Injection Moulding Machine

Technical Information - Engel ES 1050/275 HL-V

Technical Specification

  • Clamping Force: 2750 kN
  • Max. Shot Weight: 547 g
  • Screw Diameter: 60 mm

Additional Information

  • Screw diameter: 60 mm

  • Injection pressure: 1725 bar

  • Platen dimensions: 1050 x 650 (900) mm

  • Tie-bar spacing: Tie-bar-less (nemá)

  • Max. platen stroke: 1200 mm

  • Min. mold height: 350 mm

  • Centering ring: 160 mm

  • Ejector pin length: 330 mm

  • Ejector pin internal thread: M16

  • Core pulls: 2

  • Air blow: 1

  • Hydraulically operated nozzles: No

  • Pneumatically operated nozzles: No

  • Number of hot runners: 8

  • Max. injection volume: 607 ccm

  • Working hours: 60,701.3 h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
