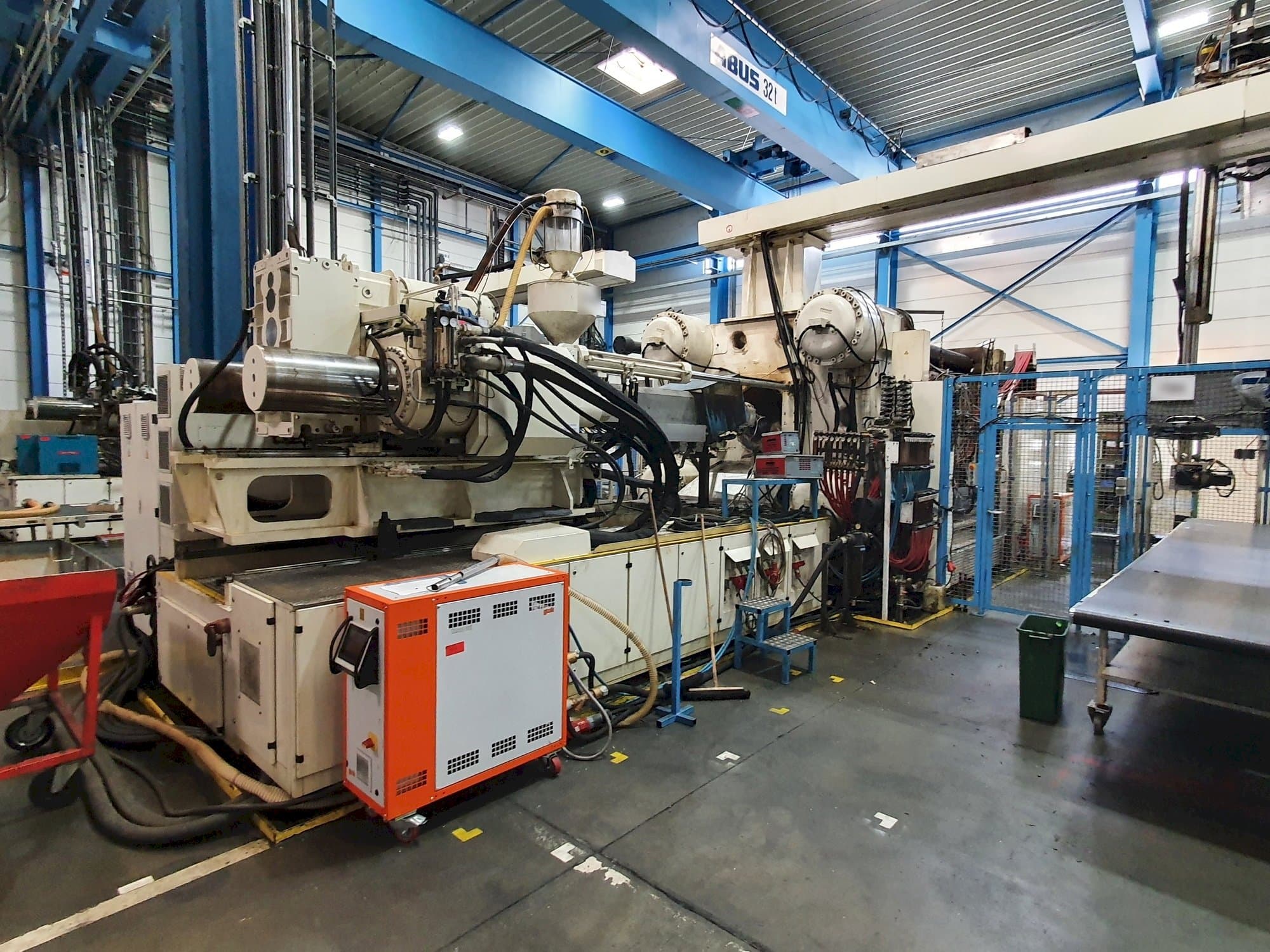

Front view of Engel Duo 16050/2300 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel Duo 16050/2300

Photo Gallery

Engel - Duo 16050/2300DE-INJ-ENG-2002-00006

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
ENGEL Duo 16050/2300 Injection moulding machine

Show in original language

This ENGEL Duo 16050/2300 Injection moulding machine was made in 2002. It is equipped with an Engel control unit. The machine has a clamping force of 23000 kN and a screw diameter of 135 mm.

Overview

brand: Engel
year: 2002
MODEL: Duo 16050/2300
production hours: 4985
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel Duo 16050/2300

General Data

Machine weight: 14100 kg

Control Unit

Brand: ENGEL

Injection Unit

Screw diameter: 135 mm
Injection pressure: 16400 N/cm3 BAR

Clamping unit

Clamping force: 23000 kN
Opening stroke: 3000 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Linear handling robot engel type erc xxl
Protective enclosure
560 kw

Technical Machine Benefits

Bar distance horizontal/vertical 2000/1600 mm
Clamping platen horizontal/vertical, 2900/2500 mm
Mold installation height max/min 2000/800 mm
Total mold weight: 54000 kg
Centering ds/as :250/250 mm
Crosshead thread m30
Injection volume 8870 cm3
Cascade 15-fold, core pulls fap/bap 2/3
Heating circuits ma/psg 40/12

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
