EMCO MCX 1200

Photo Gallery

EMCO - MCX 1200CZ-MIL-EMC-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

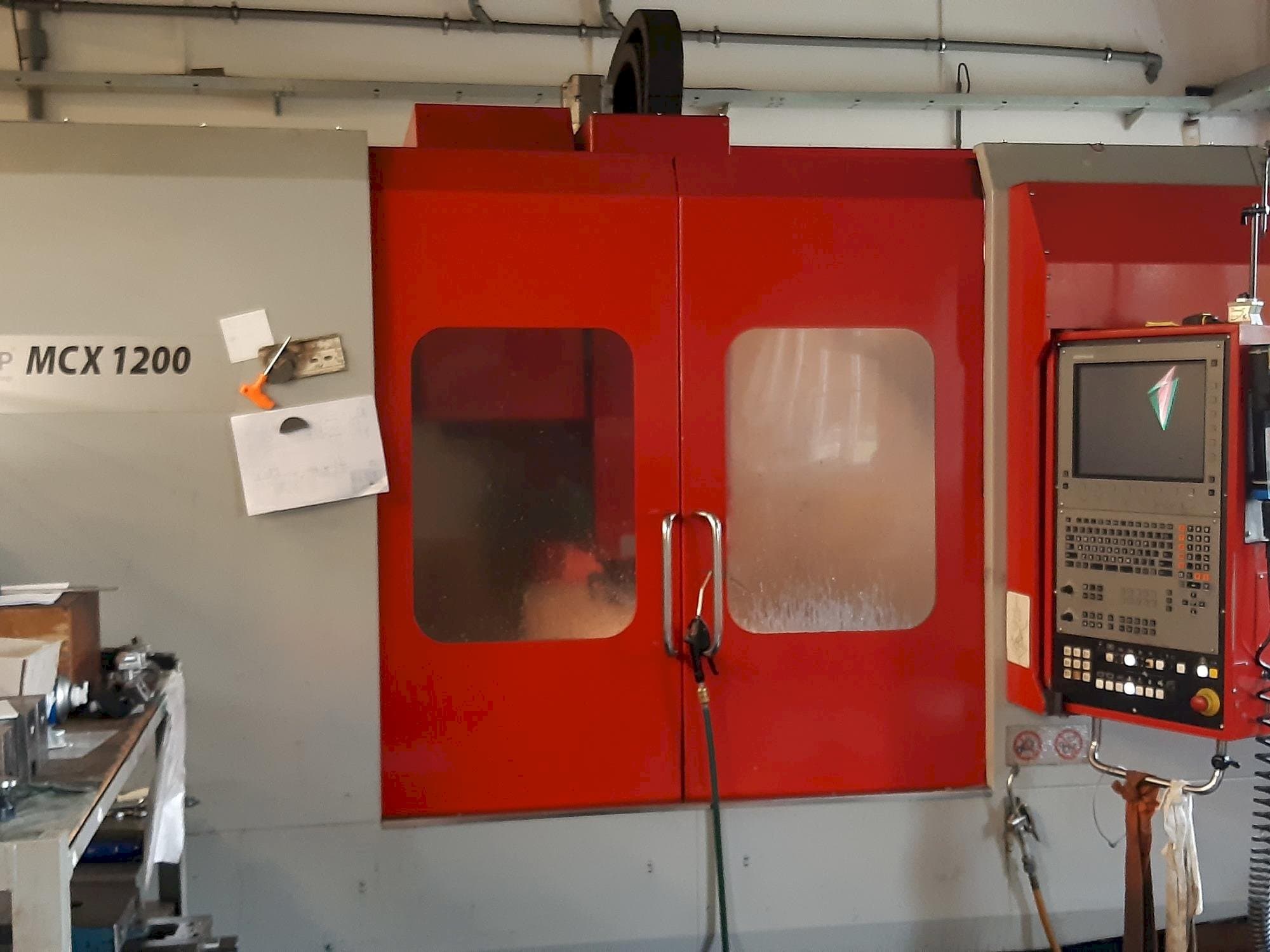

EMCO MCX 1200 Vertical Machining Center

Show in original language

This EMCO MCX 1200 Vertical Machining Center was manufactured in the year 2006. It has been on for 34951 hours, of which 11162 are spindle hours. It is equipped with a Heidenhain TNC 530i control unit. This 3 axis machine can work with a spindle speed up to 8000 rpm. It present very good working conditions, regularly serviced.

Overview

brand: EMCO
year: 2006
MODEL: MCX 1200
production hours: 34951
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - EMCO MCX 1200

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 530i

Dimensions

Machine Depth: 3641 mm
Machine Height: 3158 mm
Machine Weight: 6500 kg
Table Length: 1300 mm
Table Width: 620 mm

Movement

Number of Axes: 3
X-axis Travel: 1200 mm
Y-axis Travel: 600 mm
Z-axis Travel: 600 mm

Technical Specification

Max. Tool Weight: 6 kg
Number of Tools: 24
Spindle Speed: 8000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition, regularly serviced.
2019 - new ballscrews on x, y axis

Technical Machine Benefits

Rapid feedrate 24 m/min
Spindle motor power 15 kw/s6 - 11kw/s1
Spindle motor torque 95 nm/s6 - 70 nm/s1
Spindle ready for cooling through spindle option
Wash gun
Central lubrication

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
