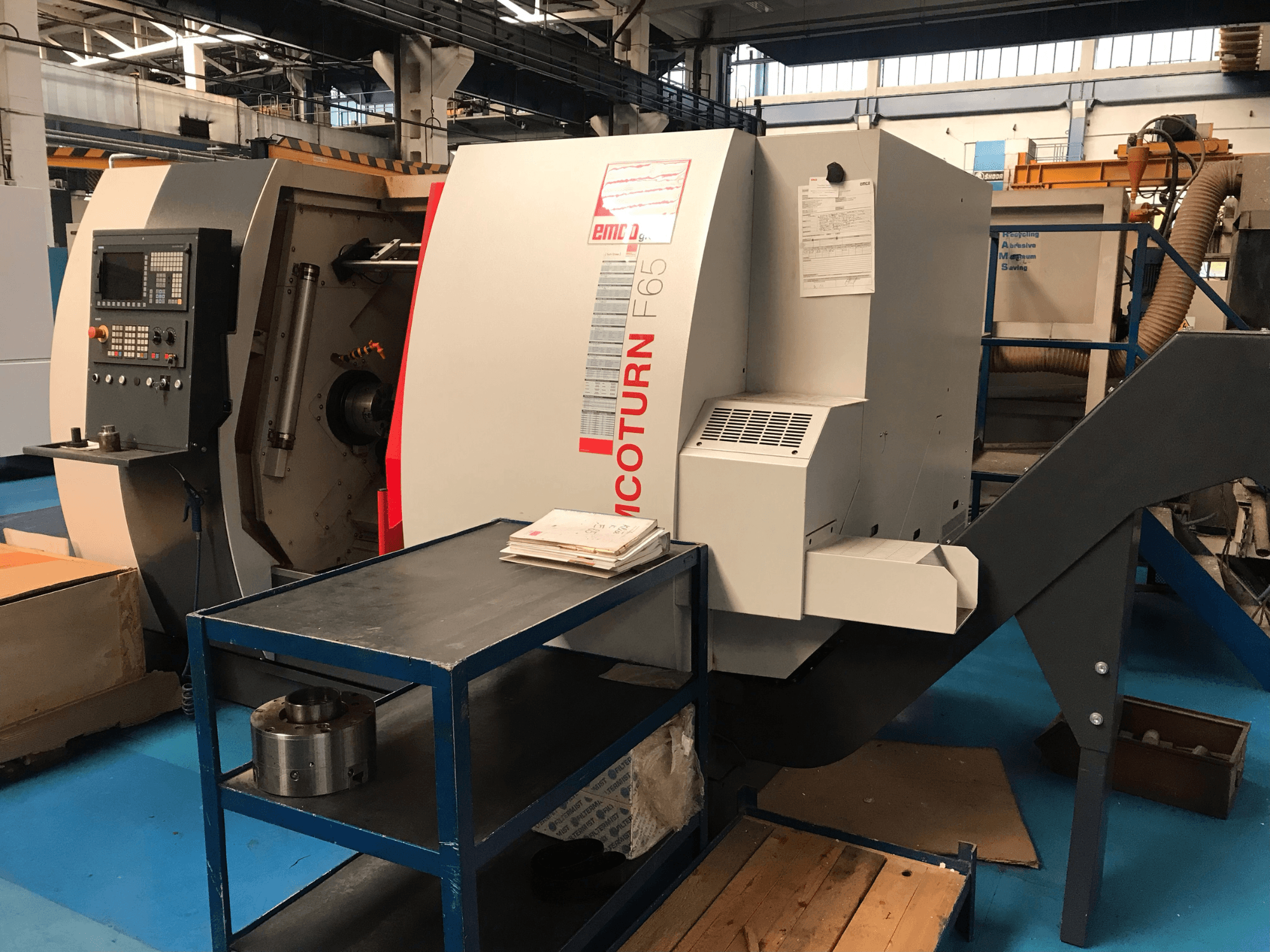

This 3-axis EMCO Emcoturn 65 was manufactured in 2019. It features a maximum machining diameter of Ø500 mm and a maximum machining length of 520 mm. The machine offers an impressive X-axis travel of 260 mm and Z-axis travel of 610 mm. If you are looking to get high-quality turning capabilities, consider the EMCO Emcoturn 65 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: EMCO
- year: 2019
- MODEL: Emcoturn 65
- production hours: 3716
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - EMCO Emcoturn 65
Control Unit
- Control Brand: SIEMENS
Dimensions
- Machine Height: 2060 mm
- Machine Length: 2800 mm
- Machine Weight: 6500 kg
- Machine Width: 3450 mm
Movement
- Number of Axes: 3
- X-axis Travel: 260 mm
- Y-axis Travel: 40 mm
- Z-axis Travel: 610 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Through-spindle Coolant: No
Additional Information
Number of spindles: 2
Spindle motor power: Main spindle: 17 / 22 kW; Counter spindle: 11 / 16.5 kW
Spindle speed range: 60 – 5000 rpm
Spindle bore: Ø73 mm
Number of tool slots: 12
Rotating tools: yes
Lubrication tank: 10 l
Pump drive power: 0.57 / 2.2 kW
Air pressure: 6 bar
Cooling pressure: 3.5 bar (optional 14 bar)
Air supply: 5 l/min
Swing over bed: Ø610 mm
Swing over cross slide: Ø360 mm
Distance between centers: 682 mm
Distance between spindle noses: 840 mm
Max. machining diameter: Ø500 mm
Max. machining length: 520 mm
Max. bar capacity: Ø65 mm
Main spindle spindle nose: A2-6
Main spindle bearing Ø: 105 mm
Main spindle torque (40% DC): 305 Nm
Max. chuck size: Ø250 mm
Counter spindle torque (40% DC): 80 / 125 Nm
Counter spindle spindle nose: A2-6
Counter spindle max. chuck: Ø200 mm
C-axis resolution: 0.001°
Turret type: VDI30
Turret max. speed: 5000 rpm
Turret max. power: 6.7 kW
Turret max. torque: 25 Nm
Turret indexing time: 0.2 s
Rotary tools: VDI30
Rotary tools speed: 0 – 5000 rpm
Rotary tools torque: 25 Nm
Rotary tools power: 6.7 kW
Coolant system tank capacity: 230 l
Coolant system flow rate: 15 / 65 l/min
Hydraulic unit max pressure: 50 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
