➤ Used Elumatec SBZ 150 For Sale | gindumac.com

Show in original language

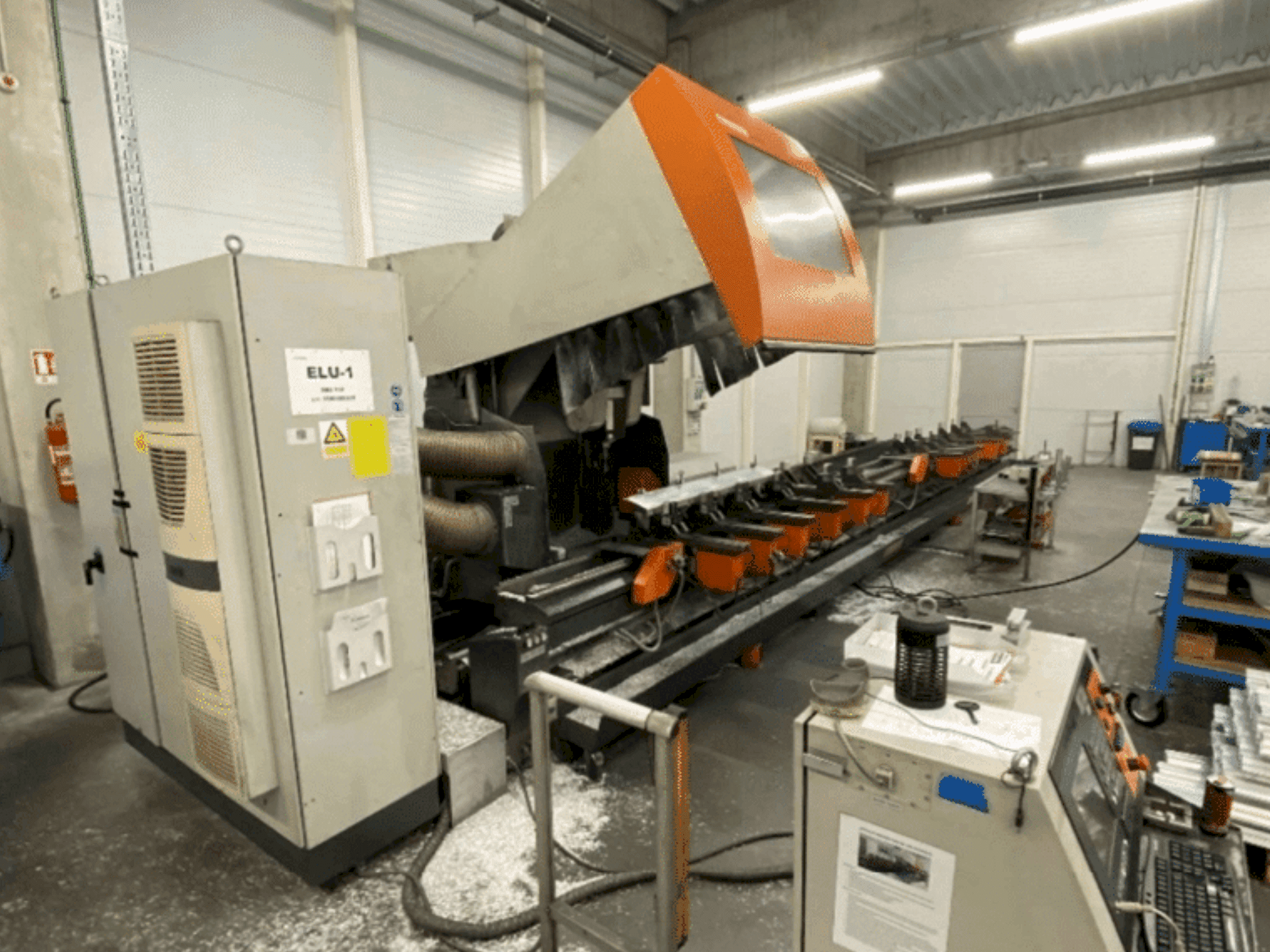

This 5-axis Elumatec SBZ 150 was manufactured in 2004. It features a CNC profile machining center with a maximum machining length of 9,220 mm and a spindle speed of 34,000 rpm. The machine includes a tool magazine with standard and special tools, and supports 6-sided machining with optional angle head. It's dismantled and ready for delivery. If you are looking to get high-quality milling capabilities consider the Elumatec SBZ 150 machine we have for sale. Contact us for more information.

Overview

brand: Elumatec
year: 2004
MODEL: SBZ 150
application type: Other Machine Tools
Location: Slovenia
machine type: Machine Tool

Technical Information - Elumatec SBZ 150

Main drive

Spindle speed range: 34000 1/MIN
Spindle motor power: 15 kW
Number of axis: 5

Movement

X-AXIS Movement: 9500 mm
X-AXIS Rapid traverse: 70 m/min
Y-AXIS Movement: 1000 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 630 mm
Z-AXIS Rapid traverse: 40 m/min

Tools

Type of tool holder: HSK-63F

Media

Chip conveyor: Yes

Additional Information

Additional equipment

2-zone pendulum operation
Angle milling head for bottom-side machining (optional)
Automatic length measurement
Barcode scanner
Label printer
Cycle time monitoring
Tool holders, collets, saw blades, tools included
eluCad (office software package for production optimization)

Machine Benefits

Technical Machine Benefits

Max. Machining length without profile end machining: 9220 mm
Max. Machining length with profile end machining: 8900 mm
A-axis swivel range: ±110°, freely programmable in 0. 1° steps
C-axis rotation range: ±182°, freely programmable in 0. 1° steps
Max. Milling cutter diameter: 100 mm
Max. Disc milling cutter diameter: 100 mm
Max. Saw blade diameter: 400 mm
Electrical connection: 400 v, 3-phase, 50 hz, 80 a
Compressed air consumption: approx. 200 l/min (with spray mist system)

Extra Information

All operations (milling, drilling, tapping, slotting, sawing) performed on stationary profile bars 6-sided machining possible using optional angle head Tool magazine includes standard tools, special tools (e.g., angle milling head), and saw blade Direct-drive motors in all axes for fast positioning with low wear The machine is dismantled and ready for delivery Control Unit Windows-based control system with USB and network ports 3D graphical workpiece visualization Automatic clamp detection and positioning Controller 5-axis control for spatial machining

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
